Product Description
The 20V MAX* XR Brushless 1 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 2.1 Joules of impact energy. The lightweight design makes this tool ideal for rod hanging, seismic & safety attachments, cable tray & strut mounting, clamp mounting, and rail mounting. It is part of the PERFORM and PROTECT™ product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL® System and becomes OSHA Table 1 Compliant when used with the DWH303DH On Board Extractor.
FEATURES & SPECS
FEATURES
- 2.1 Joules of impact energy for fast drilling in concrete.
- SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
- Lightweight design makes this tool ideal for rod hanging, seismic & safety attachments, cable tray & strut mounting, clamp mounting, and rail mounting.
- OSHA Table 1 Compliant when paired with DWH303DH On Board Extractor.
- Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
- Rotating Dial to set tool to a specific applicaiton mode - Drill, Hammer Drill, or Chip.
SPECIFICATIONS
- BLOWS/MIN 0 - 4,600 BPM
- CHARGERS/BATTERIES SOLD SEPARATELY
- CHIPPING YES
- CHUCK TYPE SDS+
- DUST COLLECTION READY TRUE
- IMPACT ENERGY 2.1 JOULES
- NO LOAD SPEED 0 - 1,100 RPM
- OPTIMAL CONCRETE DRILLING 3/16 - 1/2 IN
- POWER TOOL TYPE CORDLESS
- SYSTEM 20V MAX*
- TOOL WEIGHT 6.8 (TOOL ONLY) LBS
- VIBRATION CONTROL YES - SHOCKS™
- VIBRATION MEASUREMENT 6.6 M/S²
INCLUDES

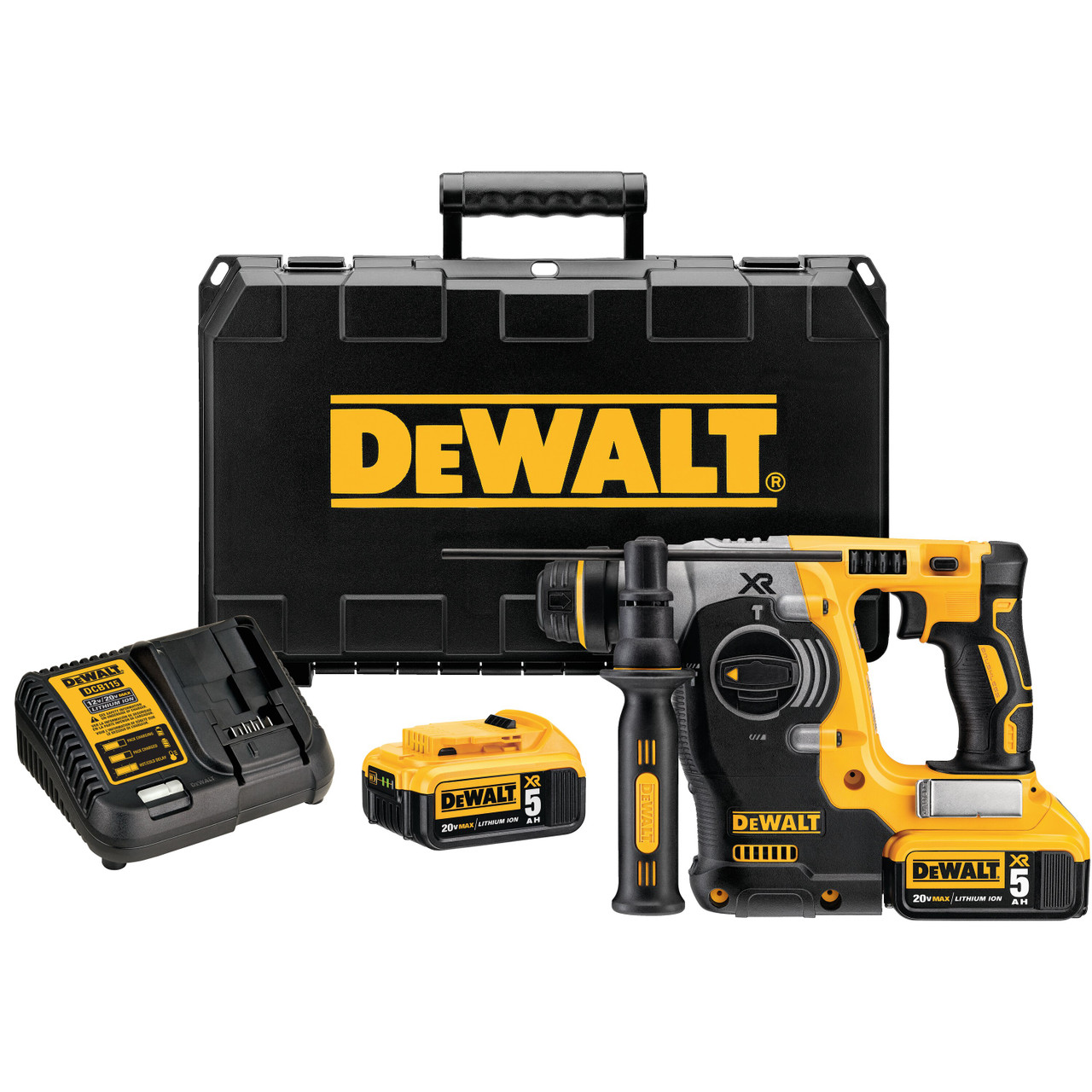

- DCH273 Rotary Hammer
- 360? Side Handle
- Depth Rod
- Adjustable Hook
