Product Description

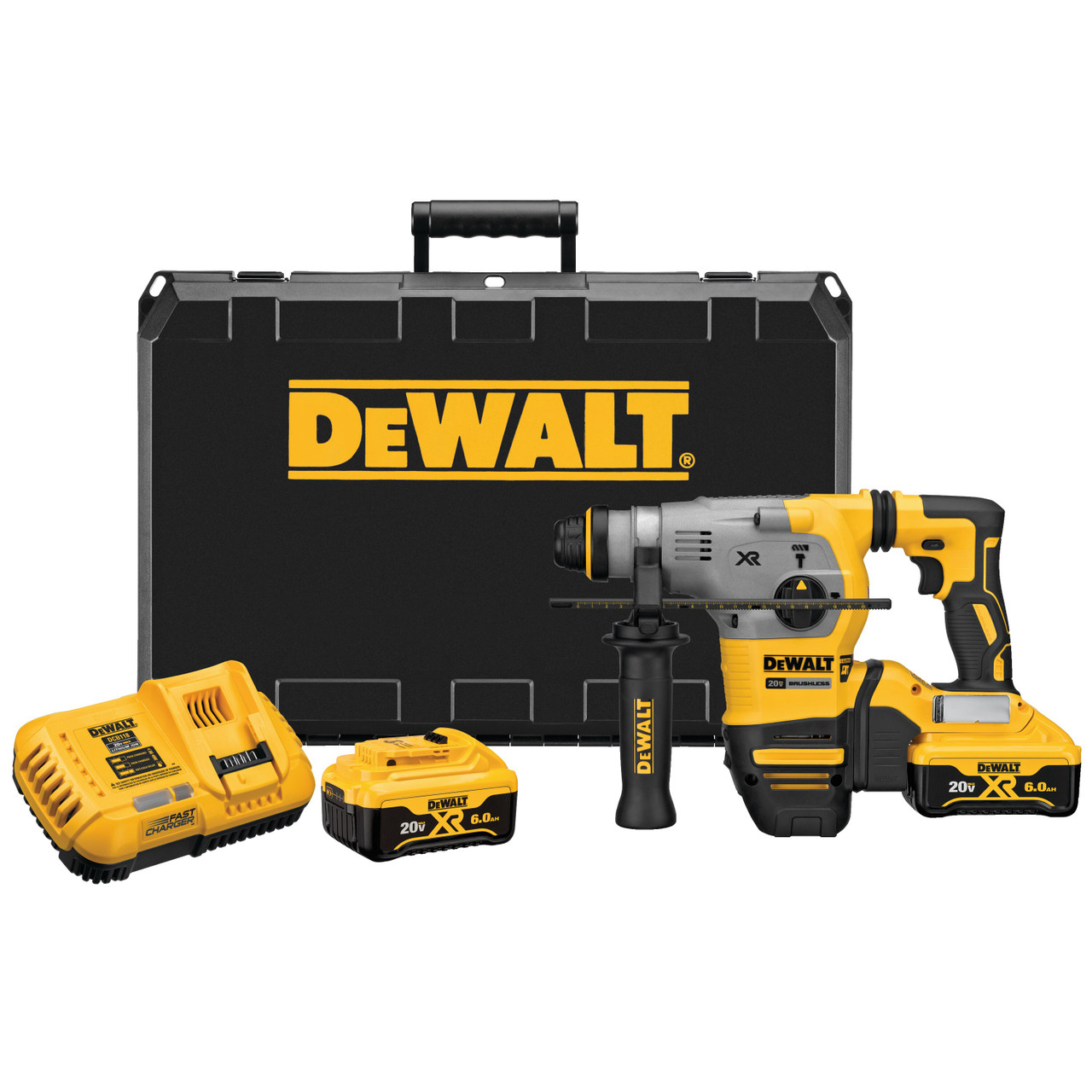

Brushless 20V MAX* XR 1‑1/8 in. SDS Plus rotary hammer kit with 3.5 Joules impact energy, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, and three operation modes. Includes two 6.0Ah XR batteries, charger, depth rod, and side handle.
Overview
The Dewalt DCH293R2 20V MAX* XR Brushless 1‑1/8 in. SDS Plus L‑Shape Rotary Hammer Kit delivers 3.5 Joules of impact energy for fast drilling in concrete. Integrated with the Anti‑Rotation E‑Clutch® System, it protects users in bind‑up situations by stopping bit rotation. SHOCKS Active Vibration Control® reduces vibration felt at the handles compared to standard rotary hammers. Lightweight at 8.2 lbs, it is ideal for structural connections, beam anchorage, rod hanging, seismic attachments, cable tray mounting, and steel stanchion installations. Part of the PERFORM & PROTECT™ line, it becomes OSHA Table 1 compliant when paired with the DWH304DH On‑Board Extractor.
Key Features
-
3.5 Joules of impact energy for fast drilling
-
Anti‑Rotation E‑Clutch® protects against bind‑up
-
SHOCKS Active Vibration Control® reduces vibration
-
Lightweight 8.2 lbs design for extended use
-
OSHA Table 1 compliant with DWH304DH extractor
-
Brushless motor with German‑engineered mechanism
-
Rotating dial with drill, hammer drill, and chip modes
-
Includes two 6.0Ah XR batteries, charger, depth rod, and side handle
Use Cases
-
Concrete drilling and anchoring
-
Structural connections and beam fastening
-
Rod hanging and seismic attachments
-
Cable tray, strut, clamp, and rail mounting
Compatibility
-
Works with Dewalt 20V MAX* lithium‑ion batteries
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
High impact energy for demanding applications
-
Enhanced safety with E‑Clutch® and SHOCKS vibration control
-
Versatile with three operation modes
-
Complete kit with batteries and charger included
FAQ
-
Does it include batteries? → Yes, two 6.0Ah XR batteries included
-
What is the impact energy? → 3.5 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with DWH304DH extractor
Technical Specs
-
Model Number: DCH293R2
-
Chuck Type: SDS+
-
Impact Energy: 3.5 Joules
-
No‑Load Speed: 0–1,000 RPM
-
Blows/Min: 0–4,480 BPM
-
Optimal Concrete Drilling: 5/8–7/8 in.
-
Tool Length: 13.78 in
-
Tool Weight: 8.2 lbs
-
Vibration Measurement: 7.5 m/s²
-
Dust Collection: Ready
-
Clutch: E‑Clutch® + Mechanical
-
Battery Type: 20V MAX* XR Li‑Ion (6.0Ah)
-
Number of Batteries: 2
-
System: 20V MAX*
Warranty Information
3‑year limited warranty, 2‑year free service, 90‑day money‑back guarantee.
Shipping Information
-
Box Dimensions: 17" × 13" × 7"
-
Package Weight: ~15 lbs
-
Includes: DCH293 rotary hammer, two 6.0Ah XR batteries, charger, 360° side handle, depth rod, manual
-
Shipping Class: Heavy‑duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing vibration control and safety features
End‑of‑Page Summary
Dewalt DCH293R2 20V MAX* XR Brushless 1‑1/8 in. SDS Plus L‑Shape Rotary Hammer Kit with 3.5 Joules impact energy, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, and OSHA Table 1 compliance. Includes two 6.0Ah XR batteries, charger, depth rod, and side handle.
