Product Description

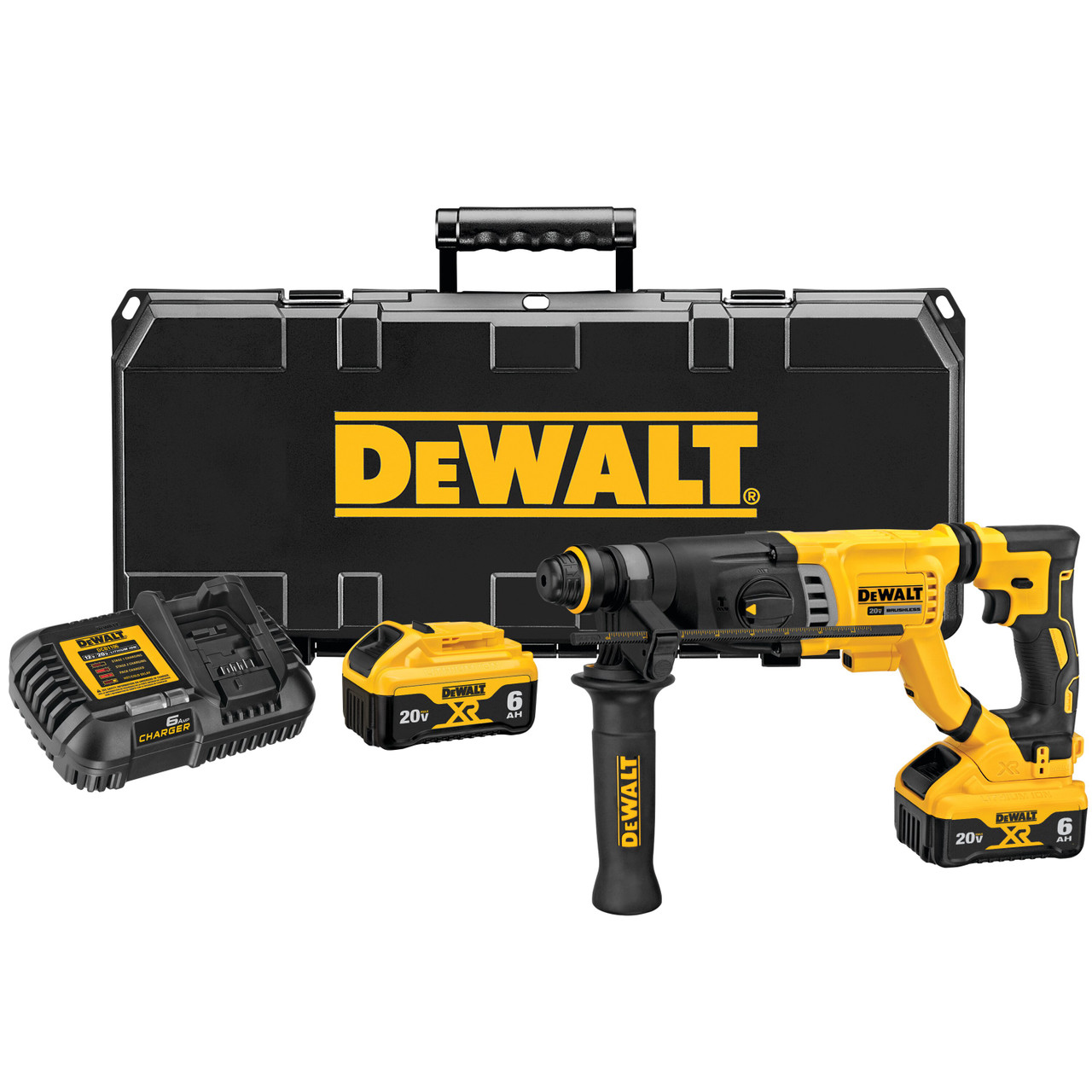

Brushless 20V MAX* XR 1‑1/8 in. SDS Plus rotary hammer kit with 3.0 Joules impact energy, SHOCKS Active Vibration Control®, and three operation modes. Includes two 6.0Ah XR batteries, charger, depth rod, side handle, and kit box.
Overview
The Dewalt DCH263R2 20V MAX* XR Brushless 1‑1/8 in. SDS Plus D‑Handle Rotary Hammer Kit delivers 3.0 Joules of impact energy for fast drilling in concrete. Integrated with SHOCKS Active Vibration Control® System, it reduces vibration felt at the handles compared to standard rotary hammers. Lightweight at 5.95 lbs, it is ideal for forming, rebar dowelling (#3–#5), tilt wall support, rod hanging, beam anchorage, and steel stanchion mounting. Part of the PERFORM & PROTECT™ line, it becomes OSHA Table 1 compliant when paired with the DWH205DH On‑Board Extractor.
Key Features
-
3.0 Joules of impact energy for fast drilling
-
SHOCKS Active Vibration Control® reduces vibration
-
Lightweight 5.95 lbs design for extended use
-
OSHA Table 1 compliant with DWH205DH extractor
-
Brushless motor with German‑engineered mechanism
-
Rotating dial with drill, hammer drill, and chip modes
-
Includes two 6.0Ah XR batteries, charger, depth rod, side handle, and kit box
Use Cases
-
Concrete drilling and anchoring
-
Rebar dowelling (#3–#5)
-
Tilt wall support and beam fastening
-
Rod hanging and stanchion mounting
Compatibility
-
Works with Dewalt 20V MAX* lithium‑ion batteries
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
High impact energy for demanding applications
-
Enhanced safety with SHOCKS vibration control
-
Versatile with three operation modes
-
Complete kit with batteries and charger included
FAQ
-
Does it include batteries? → Yes, two 6.0Ah XR batteries included
-
What is the impact energy? → 3.0 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with DWH205DH extractor
Technical Specs
-
Model Number: DCH263R2
-
Chuck Type: SDS+
-
Impact Energy: 3.0 Joules
-
No‑Load Speed: 0–1,165 RPM
-
Blows/Min: 0–4,300 BPM
-
Optimal Concrete Drilling: 1/4–3/4 in.
-
Tool Length: 15.88 in
-
Tool Height: 7.34 in
-
Tool Weight: 5.95 lbs
-
Vibration Measurement: 9.1 m/s²
-
Dust Collection: Ready
-
Battery Type: 20V MAX* XR Li‑Ion (6.0Ah)
-
Number of Batteries: 2
-
System: 20V MAX*
Warranty Information
3‑year limited warranty, 2‑year free service, 90‑day money‑back guarantee.
Shipping Information
-
Box Dimensions: 16" × 12" × 6"
-
Package Weight: ~14 lbs
-
Includes: DCH263 rotary hammer, two 6.0Ah XR batteries, charger, 360° side handle, depth rod, kit box, manual
-
Shipping Class: Heavy‑duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing vibration control
End‑of‑Page Summary
Dewalt DCH263R2 20V MAX* XR Brushless 1‑1/8 in. SDS Plus D‑Handle Rotary Hammer Kit with 3.0 Joules impact energy, SHOCKS Active Vibration Control®, and OSHA Table 1 compliance. Includes two 6.0Ah XR batteries, charger, depth rod, side handle, and kit box.
