Product Description

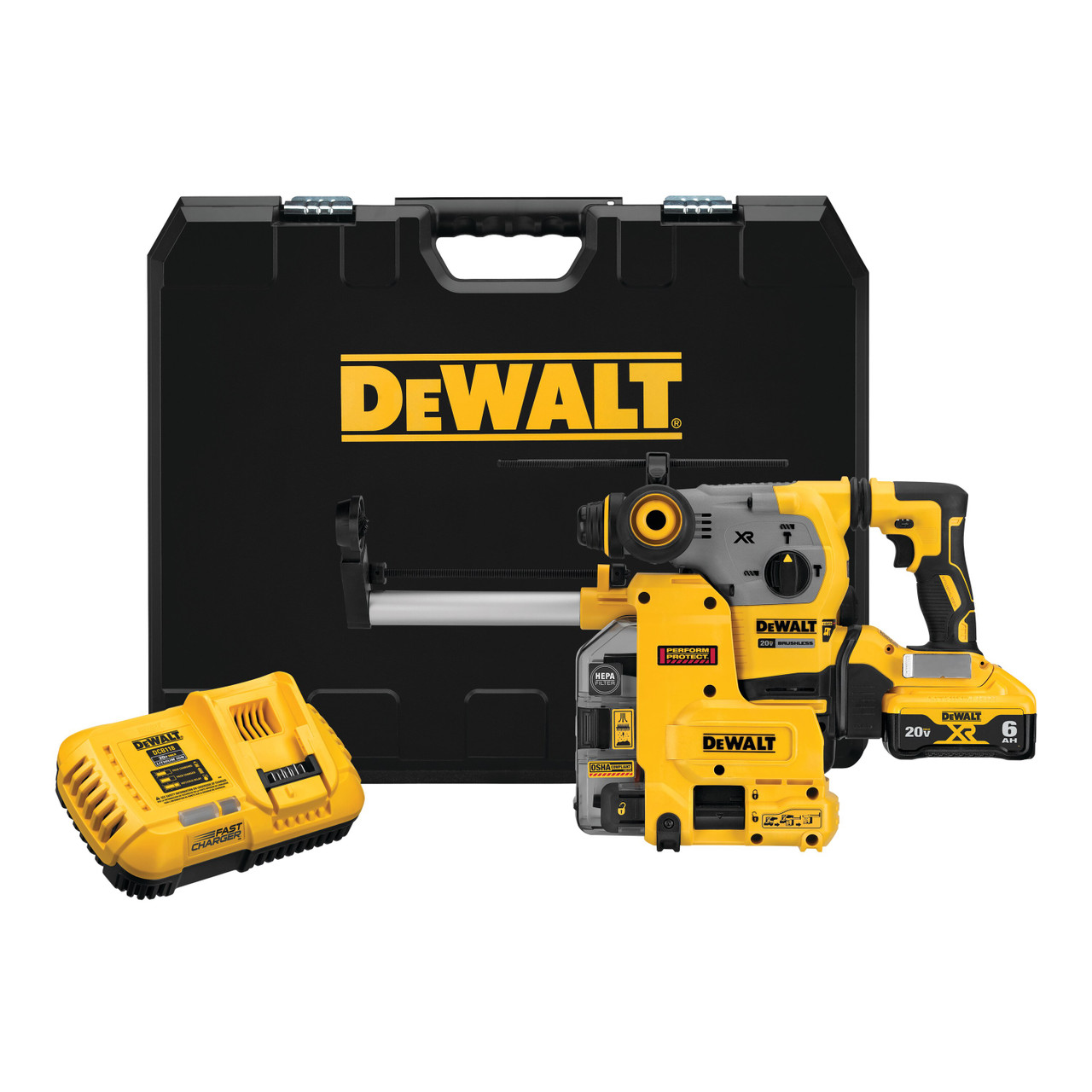

Brushless 20V MAX* XR 1‑1/8 in. SDS Plus rotary hammer kit with 3.5 Joules impact energy, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, and OSHA Table 1 compliant onboard dust extractor. Includes two 6.0Ah XR batteries, charger, depth rod, side handle, and kit box.
Overview
The Dewalt DCH293R2DH 20V MAX* XR Brushless 1‑1/8 in. SDS Plus L‑Shape Rotary Hammer Kit delivers 3.5 Joules of impact energy for large‑diameter drilling in concrete. Integrated with the Anti‑Rotation E‑Clutch® System, it protects users in bind‑up situations by stopping bit rotation. SHOCKS Active Vibration Control® reduces vibration felt at the handles compared to standard rotary hammers. The OSHA Table 1 compliant DWH304DH onboard dust extractor features a built‑in motor, HEPA filter, clear high‑capacity dust box, and quick‑release design for easy attachment and disassembly. With a balanced design and powerful runtime, this kit is ideal for sleeve, stud/wedge, and screw anchor installations.
Key Features
-
3.5 Joules of impact energy for large‑diameter drilling
-
Anti‑Rotation E‑Clutch® protects against bind‑up
-
SHOCKS Active Vibration Control® reduces vibration
-
OSHA Table 1 compliant onboard dust extractor with HEPA filter
-
Brushless motor with German‑engineered mechanism
-
Rotating dial with drill, hammer drill, and chip modes
-
Includes two 6.0Ah XR batteries, charger, depth rod, side handle, and kit box
Use Cases
-
Large‑diameter concrete drilling
-
Structural connections and beam fastening
-
Rod hanging and seismic attachments
-
OSHA‑compliant dust‑controlled drilling
Compatibility
-
Works with Dewalt 20V MAX* lithium‑ion batteries
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
OSHA‑compliant dust extraction with HEPA filtration
-
Enhanced safety with E‑Clutch® and SHOCKS vibration control
-
Versatile with three operation modes
-
Complete kit with batteries, charger, and dust extractor included
FAQ
-
Does it include batteries? → Yes, two 6.0Ah XR batteries included
-
What is the impact energy? → 3.5 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with onboard DWH304DH dust extractor
Technical Specs
-
Model Number: DCH293R2DH
-
Chuck Type: SDS+
-
Impact Energy: 3.5 Joules
-
No‑Load Speed: 0–1,000 RPM
-
Blows/Min: 0–4,480 BPM
-
Optimal Concrete Drilling: 5/8–7/8 in.
-
Tool Length: 13.78 in
-
Tool Weight: 8.2 lbs
-
Vibration Measurement: 7.5 m/s²
-
Dust Collection: Onboard extractor with HEPA filter
-
Battery Type: 20V MAX* XR Li‑Ion (6.0Ah)
-
Number of Batteries: 2
-
System: 20V MAX*
Warranty Information
3‑year limited warranty, 2‑year free service, 90‑day money‑back guarantee.
Shipping Information
-
Box Dimensions: 17" × 13" × 7"
-
Package Weight: ~16 lbs
-
Includes: DCH293 rotary hammer, onboard dust extractor, two 6.0Ah XR batteries, charger, 360° side handle, depth rod, kit box, manual
-
Shipping Class: Heavy‑duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing OSHA‑compliant dust control
End‑of‑Page Summary
Dewalt DCH293R2DH 20V MAX* XR Brushless 1‑1/8 in. SDS Plus L‑Shape Rotary Hammer Kit with onboard dust extractor, SHOCKS Active Vibration Control®, and OSHA Table 1 compliance. Includes two 6.0Ah XR batteries, charger, depth rod, side handle, and kit box.
