Product Description

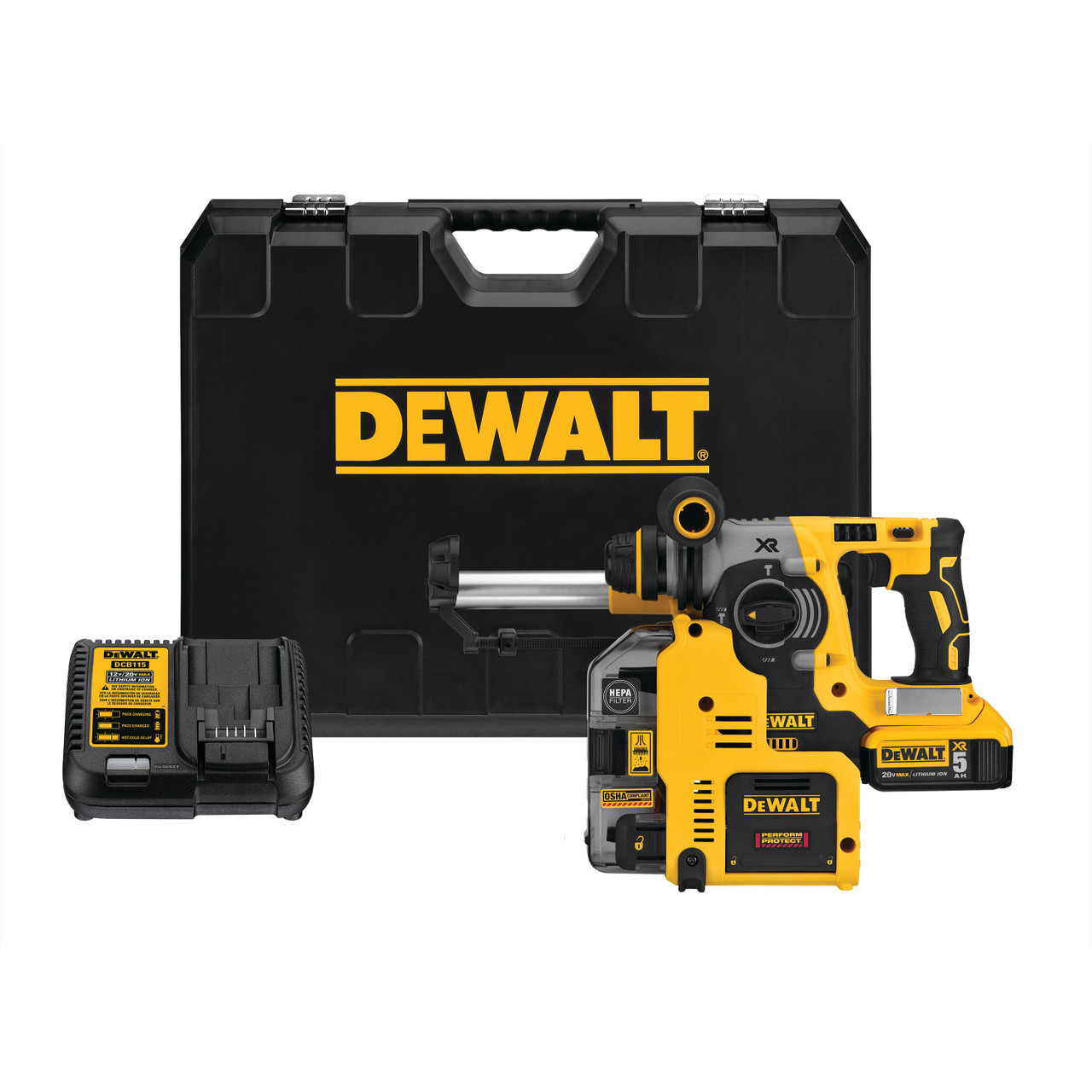

Brushless 20V MAX* XR 1 in. SDS Plus rotary hammer kit with 2.1 Joules impact energy, SHOCKS Active Vibration Control®, and OSHA Table 1 compliant onboard dust extractor. Includes two 5.0Ah XR batteries, charger, depth rod, side handle, utility hook, and kit box.
Overview
The Dewalt DCH273P2DHO 20V MAX* XR Brushless 1 in. SDS Plus L‑Shape Rotary Hammer Kit delivers 2.1 Joules of impact energy for fast drilling in concrete. Integrated with SHOCKS Active Vibration Control® System, it reduces vibration felt at the handles compared to standard rotary hammers. Lightweight at 9.88 lbs, it is ideal for overhead drop‑in drilling and anchor installations. The OSHA Table 1 compliant DWH303DH onboard dust extractor features a built‑in motor, HEPA filter, clear high‑capacity dust box, and quick‑release design for easy attachment and disassembly. With a 2‑second power‑off delay, dust extraction continues after drilling stops, ensuring cleaner and safer operation.
Key Features
-
2.1 Joules of impact energy for fast drilling
-
SHOCKS Active Vibration Control® reduces vibration
-
OSHA Table 1 compliant onboard dust extractor with HEPA filter
-
2‑second power‑off delay for dust extraction
-
Brushless motor with German‑engineered mechanism
-
Rotating dial with drill, hammer drill, and chip modes
-
Includes two 5.0Ah XR batteries, charger, depth rod, side handle, utility hook, and kit box
Use Cases
-
Overhead drop‑in drilling
-
Concrete anchoring and fastening
-
Rod hanging and seismic attachments
-
OSHA‑compliant dust‑controlled drilling
Compatibility
-
Works with Dewalt 20V MAX* lithium‑ion batteries
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
OSHA‑compliant dust extraction with HEPA filtration
-
Enhanced safety with SHOCKS vibration control
-
Versatile with three operation modes
-
Complete kit with batteries, charger, and dust extractor included
FAQ
-
Does it include batteries? → Yes, two 5.0Ah XR batteries included
-
What is the impact energy? → 2.1 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with onboard DWH303DH dust extractor
Technical Specs
-
Model Number: DCH273P2DHO
-
Chuck Type: SDS+
-
Impact Energy: 2.1 Joules
-
No‑Load Speed: 0–1,100 RPM
-
Blows/Min: 0–4,600 BPM
-
Optimal Concrete Drilling: 5/32–1/2 in.
-
Tool Weight: 9.88 lbs
-
Vibration Measurement: 6.6 m/s²
-
Dust Collection: Onboard extractor with HEPA filter
-
Battery Type: 20V MAX* XR Li‑Ion (5.0Ah)
-
Number of Batteries: 2
-
System: 20V MAX*
Warranty Information
3‑year limited warranty, 2‑year free service, 90‑day money‑back guarantee.
Shipping Information
-
Box Dimensions: 17" × 13" × 7"
-
Package Weight: ~15 lbs
-
Includes: DCH273 rotary hammer, onboard dust extractor, two 5.0Ah XR batteries, charger, 360° side handle, depth rod, retractable utility hook, kit box, manual
-
Shipping Class: Heavy‑duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing OSHA‑compliant dust control
End‑of‑Page Summary
Dewalt DCH273P2DHO 20V MAX* XR Brushless 1 in. SDS Plus L‑Shape Rotary Hammer Kit with onboard dust extractor, SHOCKS Active Vibration Control®, and OSHA Table 1 compliance. Includes two 5.0Ah XR batteries, charger, depth rod, side handle, utility hook, and kit box.
