Product Description
Smart 20V MAX* XR mid-range impact wrench with 330 ft-lbs fastening torque, Tool Connect™ Bluetooth® technology, Precision Wrench™ and Precision Tap™ modes. Hog ring anvil for quick socket changes. Bare tool — battery and charger sold separately.
Overview

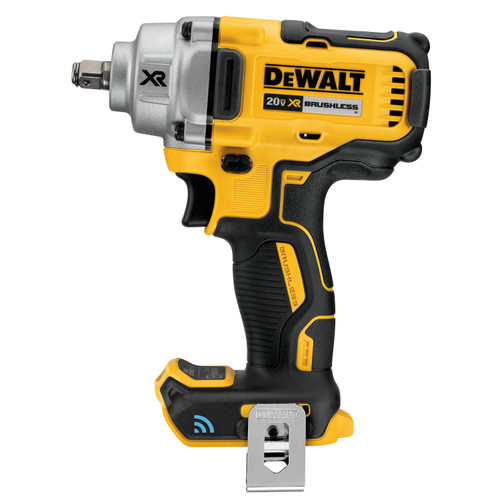

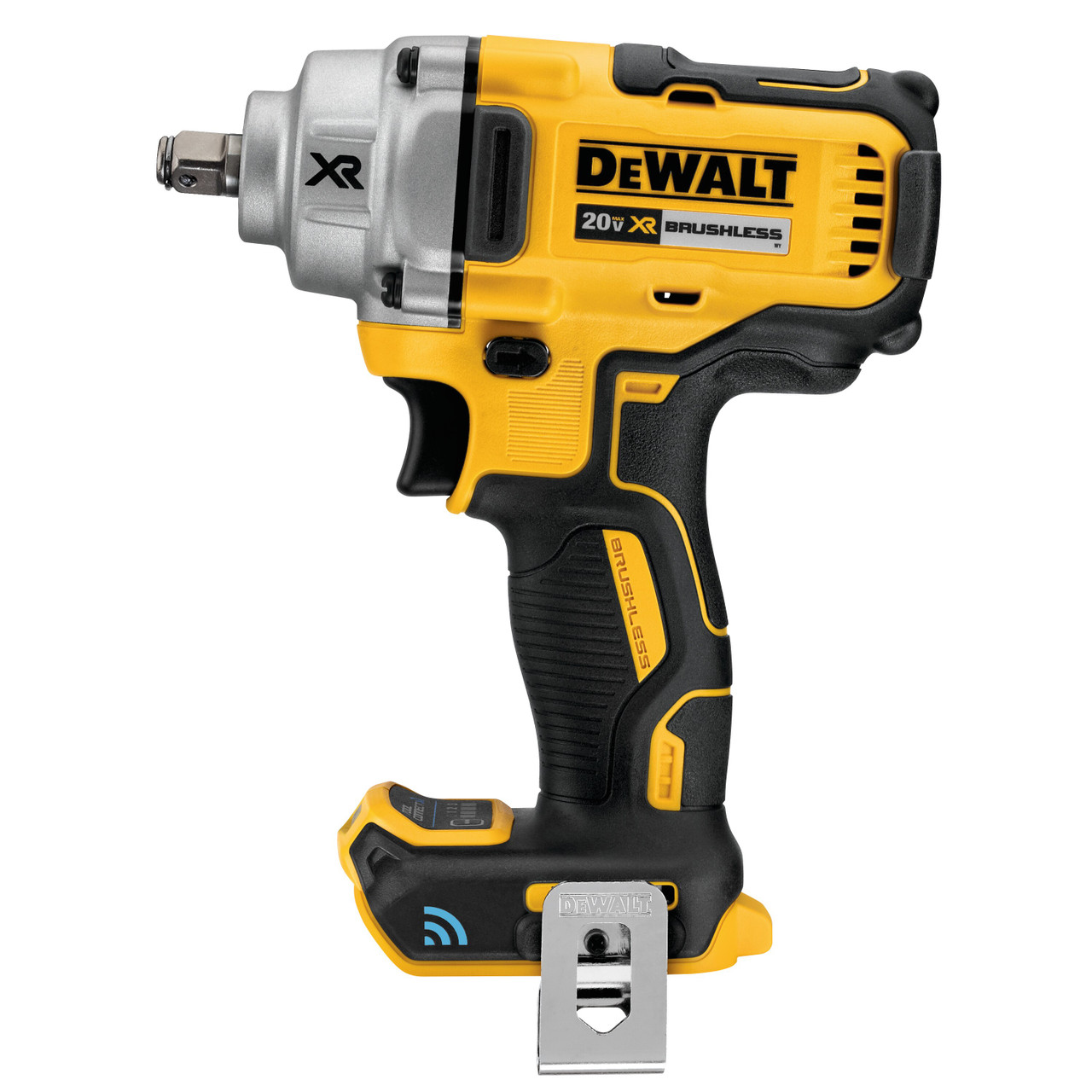

The Dewalt DCF896HB 20V MAX* XR Tool Connect™ 1/2 in. Mid-Range Cordless Impact Wrench delivers up to 330 ft-lbs of fastening torque and 600 ft-lbs of breakaway torque in a compact 6.95 in. design weighing only 3.48 lbs. Integrated Bluetooth® technology connects to the Tool Connect™ app and Inventory Manager portal, enabling tracking, diagnostics, and customization. Precision Wrench™ Control helps prevent overtightening and fastener run-off, while Precision Tap™ mode automates thread tapping for faster, more consistent results. Hog ring anvil allows quick and easy socket changes for maximum productivity.
Key Features
-
330 ft-lbs fastening torque, 600 ft-lbs breakaway torque
-
Hog ring anvil for fast socket changes
-
Integrated Bluetooth® Tool Connect™ technology for tracking and customization
-
Precision Wrench™ Control for fastening consistency
-
Precision Tap™ mode for automated thread tapping
-
3 customizable modes via Tool Connect™ app (speed, LED brightness/delay, torque control)
-
Brushless motor for efficiency and runtime
-
Variable speed trigger for control
-
LED light for visibility in dim areas
-
Bare tool — battery and charger sold separately
Use Cases
-
Automotive wheel lugs and maintenance
-
Pipe flanges and grooved couplings
-
Concrete anchor setting
-
Industrial fastening requiring smart control and tracking
Compatibility
-
Works with Dewalt 20V MAX* XR lithium-ion batteries (sold separately)
-
Compatible with Dewalt chargers and accessories
-
Integrates with Tool Connect™ app and Inventory Manager
Benefits / Why Choose This Model
-
Combines Dewalt XR performance with smart connectivity
-
Hog ring anvil for quick socket changes
-
Precision Wrench™ and Precision Tap™ modes for advanced control
-
Real-time diagnostics and tracking reduce downtime and losses
-
Compact and lightweight for extended use
FAQ
-
Does it include batteries? → No, bare tool only
-
What is the max torque? → 330 ft-lbs fastening, 600 ft-lbs breakaway
-
What is the no-load speed? → 0–2,000 RPM
-
Does it have LEDs? → Yes, built-in LED light
-
Does it support Bluetooth®? → Yes, via Tool Connect™ app
Technical Specs
-
Model Number: DCF896HB
-
Drive: 1/2 in. square
-
Anvil Type: Hog ring
-
Max Torque: 330 ft-lbs fastening, 600 ft-lbs breakaway
-
No-Load Speed: 0–2,000 RPM
-
Impacts/Min: 0–3,100 IPM
-
Tool Length: 6.95 in
-
Tool Height: 8.25 in
-
Tool Width: 2.85 in
-
Tool Weight: 3.48 lbs
-
Battery Type: 20V MAX* XR lithium-ion (sold separately)
-
Connectivity: Bluetooth® Tool Connect™
-
Power Tool Type: Cordless
-
System: 20V MAX*
Warranty Information
3-year limited warranty, 2-year free service, 90-day money-back guarantee.
Shipping Information
-
Box Dimensions: 12" × 10" × 6"
-
Package Weight: ~5 lbs
-
Includes: DCF896 impact wrench with hog ring anvil (bare tool), belt clip, user guide
-
Shipping Class: Smart cordless tool
Who This Is For
-
Automotive mechanics
-
Contractors
-
Industrial workers needing mid-range torque with smart tracking
End-of-Page Summary
Dewalt DCF896HB 20V MAX* XR Tool Connect™ 1/2 in. Mid-Range Cordless Impact Wrench with hog ring anvil, Precision Wrench™ Control, Precision Tap™ mode, LED lighting, and compact design. Bare tool — battery and charger sold separately.
