Product Description
Cordless circular saw with POWER DETECT™ technology, 7‑1/4" blade, 2‑9/16" depth of cut at 90°, 2" depth at 45°, 5,500 RPM speed, LED light, rafter hook, and electric brake. Tool‑only version.
Overview

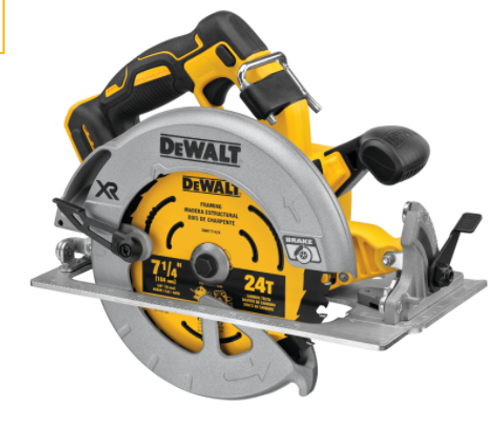

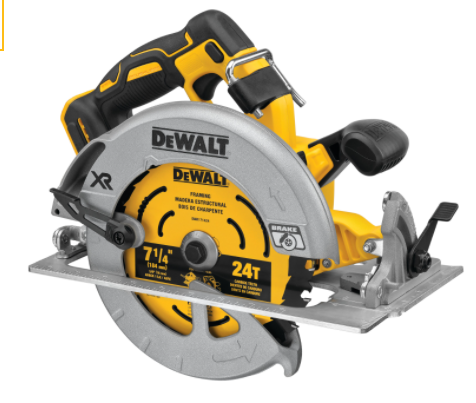

The Dewalt DCS574B XR Circular Saw is engineered with POWER DETECT™ Tool Technology that senses the battery type and adjusts output for optimized efficiency. When paired with a 20V MAX* 8.0Ah battery, it delivers up to 54% more power compared to the DCS570 using a DCB205 battery. Featuring a brushless motor that delivers 5,500 RPM, it ensures faster cutting performance with pro‑grade accuracy. With a maximum depth of cut of 2‑9/16" at 90° and 2" at 45°, this saw is built for demanding applications. The integrated rafter hook provides convenient storage, while the onboard LED enhances visibility. Safety is improved with an electric brake that rapidly stops the blade.
Key Features
-
POWER DETECT™ Tool Technology delivers up to 54% more power with 8.0Ah battery
-
Brushless motor provides 5,500 RPM for faster cutting
-
Depth of cut: 2‑9/16" at 90°, 2" at 45°
-
Bevel capacity up to 57°
-
Electric brake quickly stops blade after trigger release
-
LED light for visibility and accuracy
-
Integrated rafter hook for jobsite storage
-
Compatible with Dewalt 20V MAX* batteries
Technical Specs
-
Model Number: DCS574B
-
Blade Diameter: 7‑1/4"
-
Arbor Size: 5/8"
-
Depth of Cut at 90°: 2‑9/16"
-
Depth of Cut at 45°: 2"
-
Bevel Capacity: 0–57°
-
No Load Speed: 5,500 RPM
-
Tool Weight: 7.9 lbs
-
System: 20V MAX* Cordless
-
Power Tool Type: Circular Saw (Tool Only)
Includes
-
DCS574 7‑1/4" Circular Saw
-
DWA171424 Saw Blade
-
Blade Change Wrench
End‑of‑Page Summary
Dewalt DCS574B XR Brushless Circular Saw with POWER DETECT™ technology, 7‑1/4" blade, 5,500 RPM, LED light, and electric brake. Tool‑only version, includes blade and wrench.
