Product Description

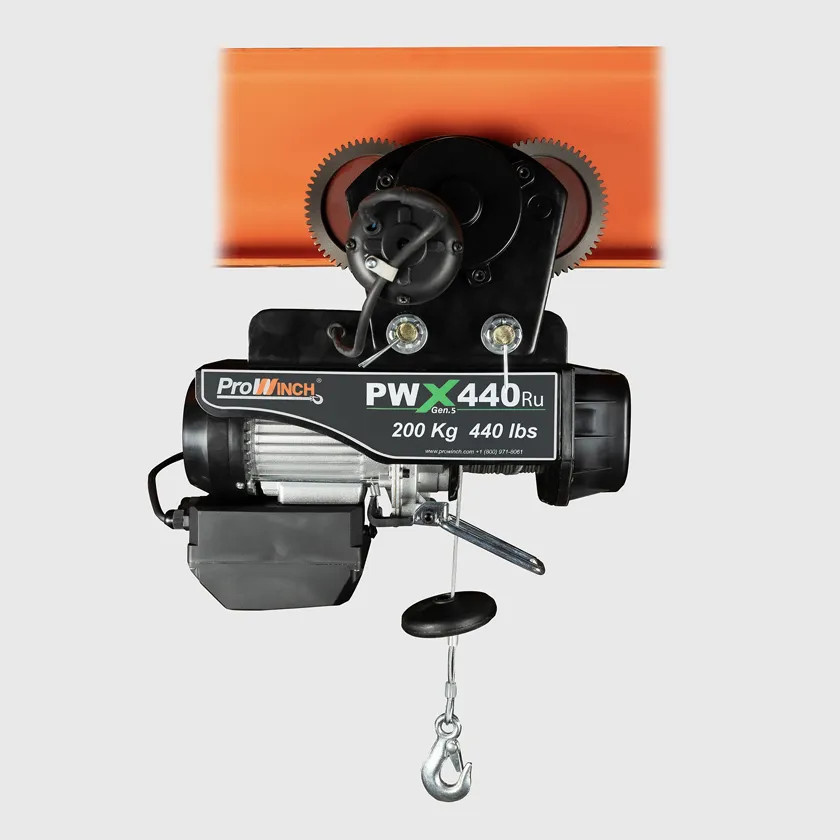

This compact Pro-X Series electric wire rope hoist delivers efficient lifting and powered horizontal travel in one integrated system. Designed for light industrial, workshop, and maintenance environments, it features a 440 lb lifting capacity, 40 ft of wire rope, wireless control, and a single-speed powered trolley for smooth movement along compatible beams. Its S3 ED 20% / H2 / M3 duty rating makes it ideal for intermittent lifting tasks that require reliability, precision, and operator safety.
Key Features
440 lb Rated Capacity
Supports up to 440 lb using a durable 40 ft 19x7 wire rope, suitable for single- or double-line lifting configurations.
120V Single-Phase Operation
Runs on standard 1-phase 120V 60Hz power, making it compatible with most residential and commercial workshop electrical setups.
Integrated Powered Trolley
Provides controlled East/West travel without manual pushing. Ideal for applications requiring both lifting and horizontal movement.
Wireless Control System
Includes a wireless control set (PWYT-W-SET-4C-IM) for remote operation of lifting and trolley functions. A wired pendant is also included for backup or precision control.
Upper & Lower Limit Switches
Built-in safety switches automatically stop lifting motion at preset endpoints to protect the hoist, load, and operator.
High-Efficiency Induction Motor
A 3450 RPM induction motor with integrated brake ensures consistent lifting performance and secure load holding.
S3 ED 20% / H2 / M3 Duty Classification
Rated for light manufacturing, service, and maintenance tasks, allowing:
-
Up to 7.5 minutes of operation per hour
-
Maximum 75 starts per hour
-
12.5% operational time factor
-
Approx. 2,500-hour service life under rated conditions
Standards Compliance
Meets major U.S. and international lifting standards:
-
ASME/ANSI B30.16
-
ASME/ANSI B30.17
-
C/ETL CSA C22.2#33:2019 Ed.4
Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity | 440 lb |
| Voltage | 1-Phase 120V 60Hz |
| Motor RPM | 3450 |
| Motor Power | 480 W |
| Duty Class | S3 ED 20% / H2 / M3 |
| Number of Speeds | 1 |
| Lifting Height | 40 ft |
| Lifting Speed | 26.2 ft/min (single line), 13.1 ft/min (double line) |
| Wire Rope | 40 ft × 3.18 mm, 19x7 |
| Controls | Wireless + Pendant |
| Protection Rating | IP54 |
| Unit Weight | 56.1 lb |
| Minimum Headroom | 21.1 in |
| Wheel Diameter | 4.5 in |
Ideal Applications
-
Light manufacturing
-
Machinery workshops
-
Maintenance operations
-
Service bays
-
Fabrication shops
-
Garage lifting setups requiring powered travel
