Product Description
The 60V MAX* 1-3/4 in. Brushless SDS MAX Combination Hammer is a midweight, high-performance hammer that is powered by a brushless motor and a durable German engineered mechanism. It delivers 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. The constant speed electronics allow the tool to maintain speed under load. The midweight design makes it ideally suited for horizontal drilling for #4 - #8 rebar dowel applications, dry coring up to 4 in., chipping in any mid to upper wall, and ground rod driving. This hammer is part of the PERFORM & PROTECT™ product line, integrated with the Anti-Rotation E-CLUTCH® System and the SHOCKS Active Vibration Control® System. E-CLUTCH® shuts down the tool in bind up situations. SHOCKS® reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. The DCH614 is equipped with WIRELESS TOOL CONTROL™, which allows the user to link the tool to the DCV585 60V MAX* dust extractor for remote extractor activation. This tool comes Tag Ready™ so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the DEWALT Tool Connect™ app.
FEATURES & SPECS
FEATURES
- 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete.
- Anti-Rotation E-CLUTCH System shuts down the tool in bind up situations.
- Constant speed electronics allows the tool to maintain speed under load.
- The SHOCKS Active Vibration Control System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
- The midweight design makes it ideally suited for horizontal drilling for #4 - #8 rebar dowel applications and dry coring up to 4 in.
- Brushless motor and German-engineered mechanism.
- Ideally suited for chipping in any mid to uppwer wall and ground rod driving.
- Tag Ready™ so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect™ app.
- 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic+ Undercut® bits.
- Equipped with integrated WIRELESS TOOL CONTROL™, which allows the user to link the tool to the DCV585 60V MAX* Dust Extractor for remote extractor activation.
SPECIFICATIONS
- BLOWS/MIN 1450 - 2900 BPM
- E-CLUTCH(TM) E-CLUTCH
- IMPACT ENERGY 10.5 JOULES
- MAX. DIAMETER CORE 4 IN
- NO LOAD SPEED 190 - 380 RPM
- OPTIMAL CONCRETE DRILLING 5/8 - 1 1/4 IN
- POWER TOOL TYPE CORDLESS
- SYSTEM 60V MAX*
- TOOL HEIGHT 9.9 IN
- TOOL LENGTH 20.7 IN
- TOOL WEIGHT 15 LBS
- VIBRATION CONTROL SHOCKS
INCLUDES

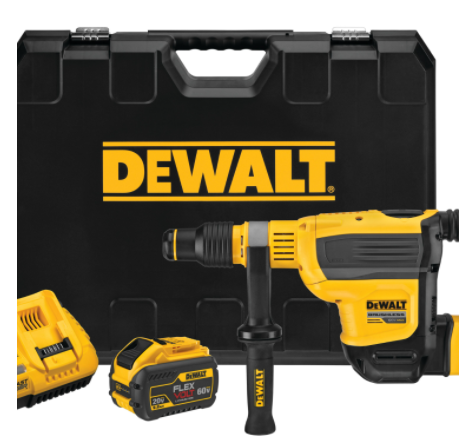

- DCH614 60V MAX* Combination Rotary Hammer
- 360? Side Handle
- (2) FLEXVOLT® DCB609 Batteries
- Fast Charger
- Kit Box
