Product Description
Heavyweight brushless SDS Max rotary hammer kit with 19.4 Joules impact energy, constant speed electronics, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, Wireless Tool Control™, and Tool Connect™ Tag‑Ready design. Includes two FLEXVOLT® 9.0Ah batteries, fast charger, side handle, and kit box.
Overview
The Dewalt DCH775X2 FLEXVOLT 60V MAX* Combination Rotary Hammer Kit is the industry’s most powerful cordless 2" SDS Max hammer. Delivering 19.4 Joules of impact energy, it ensures rapid drilling and chipping even in the hardest concrete. Constant‑speed electronics maintain drilling pace under heavy loads, while the patented Anti‑Rotation E‑Clutch® system protects users in bind‑up situations. SHOCKS Active Vibration Control® reduces vibration compared to standard hammers, enhancing comfort and safety. Equipped with Wireless Tool Control™, it links to the DCV585 dust extractor for remote activation. Tag‑Ready design allows asset tracking via Tool Connect™. Its heavyweight build makes it ideal for rebar doweling, dry coring up to 6", ground rod driving, and bushing applications.
Key Features
-
19.4 Joules impact energy for rapid drilling and chipping
-
Constant‑speed electronics maintain performance under load
-
Anti‑Rotation E‑Clutch® shuts down tool in bind‑up situations
-
SHOCKS Active Vibration Control® reduces vibration at handles
-
Wireless Tool Control™ links to DCV585 dust extractor
-
Tool Connect™ Tag‑Ready for jobsite asset management
-
7‑position variable speed dial for precision drilling and chipping
-
Heavyweight design for rebar doweling, dry coring up to 6", and ground rod driving
-
Includes two FLEXVOLT® 9.0Ah batteries and fast charger
Technical Specs
-
Model Number: DCH775X2
-
Chuck Type: SDS Max
-
Impact Energy: 19.4 Joules
-
Blows/Min: 1105–2210 BPM
-
No Load Speed: 145–290 RPM
-
Optimal Concrete Drilling: 7/8" – 1-7/8"
-
Max Core Diameter: 6"
-
Tool Weight: 21 lbs
-
Vibration Measurement: 10.1 m/s²
-
System: FLEXVOLT 60V MAX* Cordless

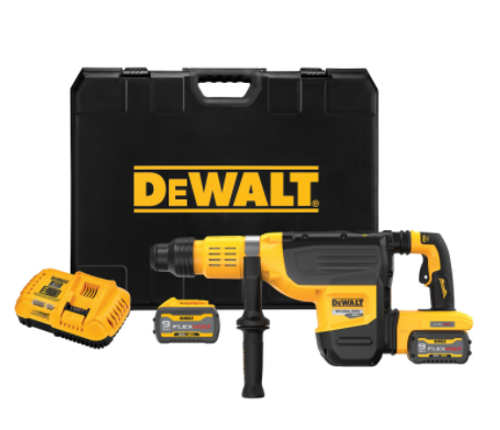

Includes
-
Dewalt DCH775 FLEXVOLT 60V MAX* Combination Rotary Hammer
-
(2) DCB609 FLEXVOLT® 60V/20V MAX* Batteries
-
DCB118 Fast Charger
-
360° Side Handle
-
Kit Box
End‑of‑Page Summary
Dewalt DCH775X2 FLEXVOLT 60V MAX* Rotary Hammer Kit with brushless motor, 19.4 Joules impact energy, SDS Max chuck, SHOCKS Active Vibration Control®, Anti‑Rotation E‑Clutch®, Wireless Tool Control™, and Tool Connect™ readiness. Includes two 9.0Ah batteries, fast charger, side handle, and kit box.
