Product Description

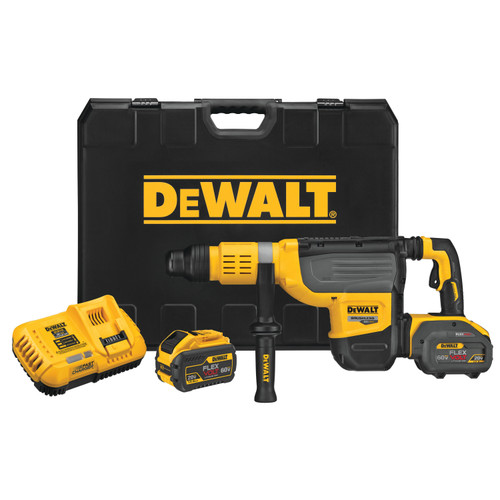

Brushless 60V MAX* XR 2 in. SDS MAX combination rotary hammer kit with 19.4 Joules impact energy, Anti-Rotation E-Clutch®, SHOCKS Active Vibration Control®, and constant speed electronics. Includes two FLEXVOLT® 12.0Ah batteries, fast charger, side handle, and kit box.
Overview
The Dewalt DCH773Y2 60V MAX* XR Brushless 2 in. SDS MAX Combination Rotary Hammer Kit is the industry’s most powerful cordless rotary hammer, delivering 19.4 Joules of impact energy for fast drilling and chipping in the hardest concrete. Integrated with the Anti-Rotation E-Clutch® System, it shuts down in bind-up situations for user protection. SHOCKS Active Vibration Control® reduces vibration felt at the handles, while constant speed electronics maintain performance under load. Heavyweight at 21 lbs, it is ideal for horizontal and downward drilling, rebar dowelling (#9–#14), dry coring up to 6 in., and heavy chipping applications. Powered by FLEXVOLT® 12.0Ah batteries, this kit ensures extreme runtime and is Tag Ready™ for DEWALT Tool Connect™ tracking.
Key Features
-
19.4 Joules of impact energy for maximum drilling and chipping power
-
Anti-Rotation E-Clutch® shuts down tool in bind-up situations
-
SHOCKS Active Vibration Control® reduces vibration
-
Constant speed electronics maintain performance under load
-
Heavyweight design for large-diameter drilling and coring
-
Tag Ready™ for DEWALT Tool Connect™ tracking
-
Includes two FLEXVOLT® 12.0Ah batteries, fast charger, side handle, and kit box
Use Cases
-
Rebar dowelling (#9–#14)
-
Dry coring up to 6 in.
-
Structural connections and anchoring
-
Heavy chipping in lower walls and floors
-
Ground rod driving and bushing
Compatibility
-
Works with Dewalt 60V MAX* FLEXVOLT® batteries
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
Industry’s most powerful cordless SDS MAX hammer
-
Enhanced safety with E-Clutch® and SHOCKS vibration control
-
Constant speed under load for consistent performance
-
Complete kit with batteries and charger included
FAQ
-
Does it include batteries? → Yes, two FLEXVOLT® 12.0Ah batteries included
-
What is the impact energy? → 19.4 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with extractor accessories
Technical Specs
-
Model Number: DCH773Y2
-
Chuck Type: SDS MAX
-
Impact Energy: 19.4 Joules
-
No-Load Speed: 145–290 RPM
-
Blows/Min: 1,105–2,210 BPM
-
Optimal Concrete Drilling: 7/8–1-7/8 in.
-
Max Core Diameter: 6 in.
-
Tool Length: 25.4 in
-
Tool Height: 11.2 in
-
Tool Weight: 21 lbs
-
Vibration Measurement: 10.1 m/s²
-
Dust Collection: Ready
-
Clutch: E-Clutch® + Mechanical
-
Battery Type: FLEXVOLT® Li-Ion (12.0Ah)
-
Number of Batteries: 2
-
System: 60V MAX*
Warranty Information
3-year limited warranty, 2-year free service, 90-day money-back guarantee.
Shipping Information
-
Box Dimensions: 26" × 16" × 10"
-
Package Weight: ~28 lbs
-
Includes: DCH773 rotary hammer, two FLEXVOLT® 12.0Ah batteries, fast charger, 360° side handle, kit box, manual
-
Shipping Class: Heavy-duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing maximum cordless performance
End-of-Page Summary
Dewalt DCH773Y2 60V MAX* XR Brushless 2 in. SDS MAX Combination Rotary Hammer Kit with 19.4 Joules impact energy, Anti-Rotation E-Clutch®, SHOCKS Active Vibration Control®, and constant speed electronics. Includes two FLEXVOLT® 12.0Ah batteries, fast charger, side handle, and kit box.
