Product Description

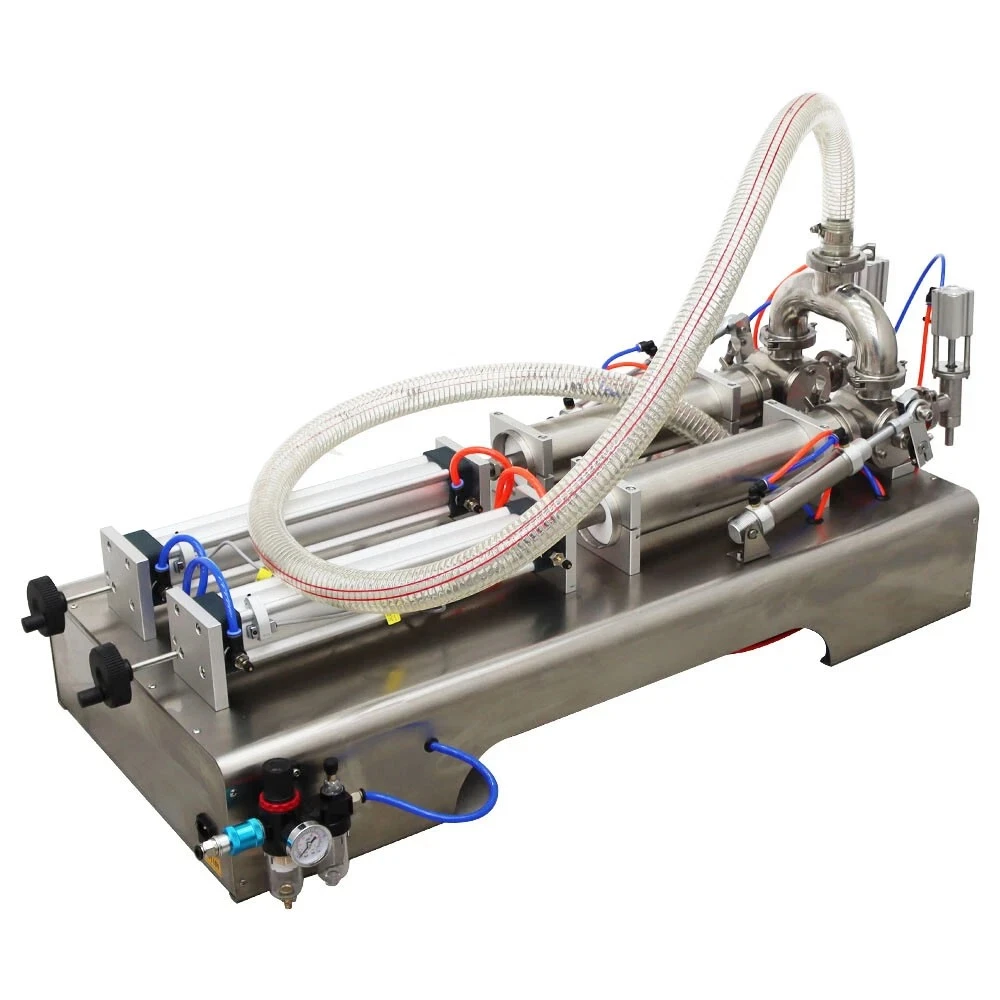

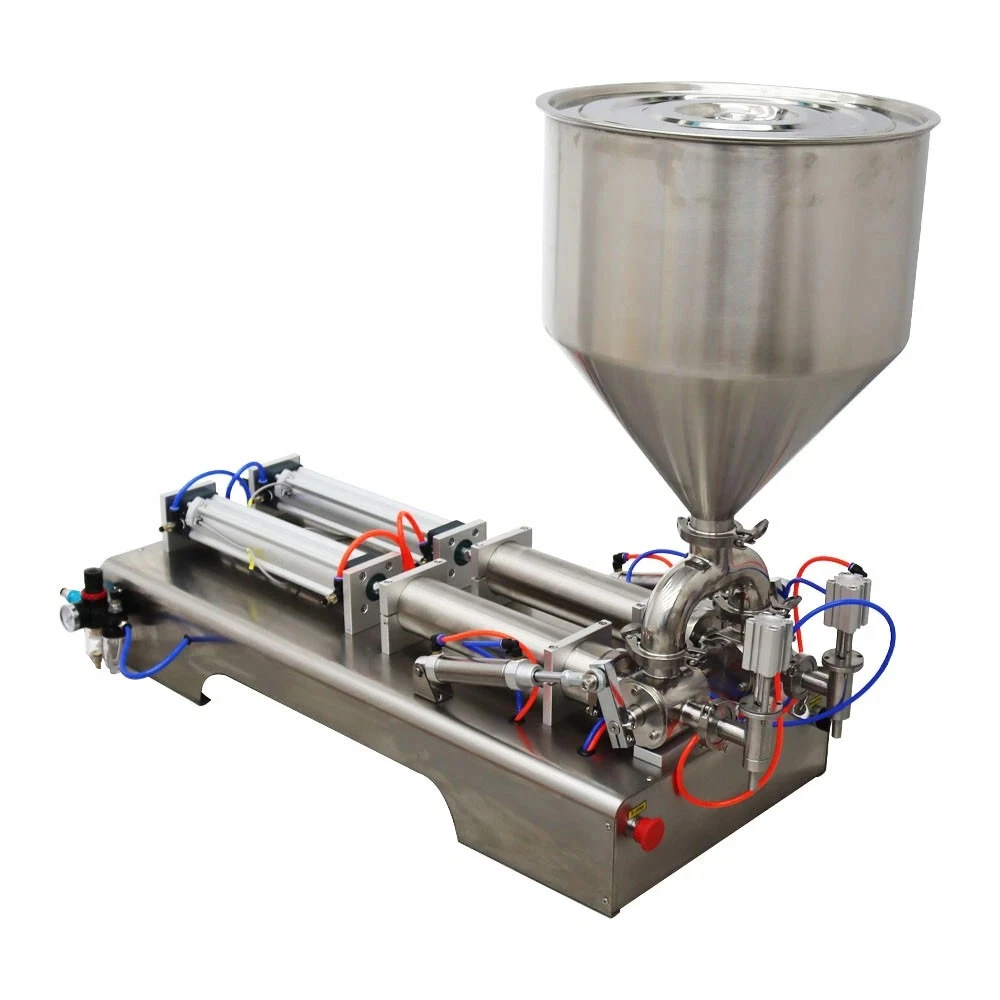

Double Head Pneumatic Paste & Liquid Filling Machine, 100-1000 ml, 110V
A dual-purpose, two-head pneumatic filling machine for thick, low-flow materials as well as liquids. Fills 100-1000 ml per cycle with ±0.5% accuracy, and you can switch between foot-switch filling and continuous automatic filling at any time.
Features
- Two filling heads for higher output.
- Two working modes: foot-switch filling and continuous automatic filling, switchable at any time. We recommend starting with the foot switch.
- Pneumatic operation: runs on compressed air, adjustable from 0.4 to 0.9 MPa.
- Stainless steel surface.
- Wide range of materials: made for thick, low-flow products such as shampoo, toothpaste, honey, cream, lotion, butter, ice cream and sauces. It also handles liquids.
Specifications
- Filling heads: 2
- Filling volume: 100-1000 ml
- Filling accuracy: ±0.5%
- Production capacity: 1-25 cycles/min
- Voltage: 110V / 60Hz
- Air pressure: adjustable 0.4-0.9 MPa
- Air supply required: at least 0.1 m³/min
- Machine size: 38.97 x 17.52 x 34.4 in (99 x 44.5 x 87.5 cm)
- Surface: stainless steel
Important notes
- Air compressor NOT included. You need an external air compressor that delivers at least 0.1 m³/min.
- Weigh the first few fills to calibrate the volume before you start production.
