Product Description

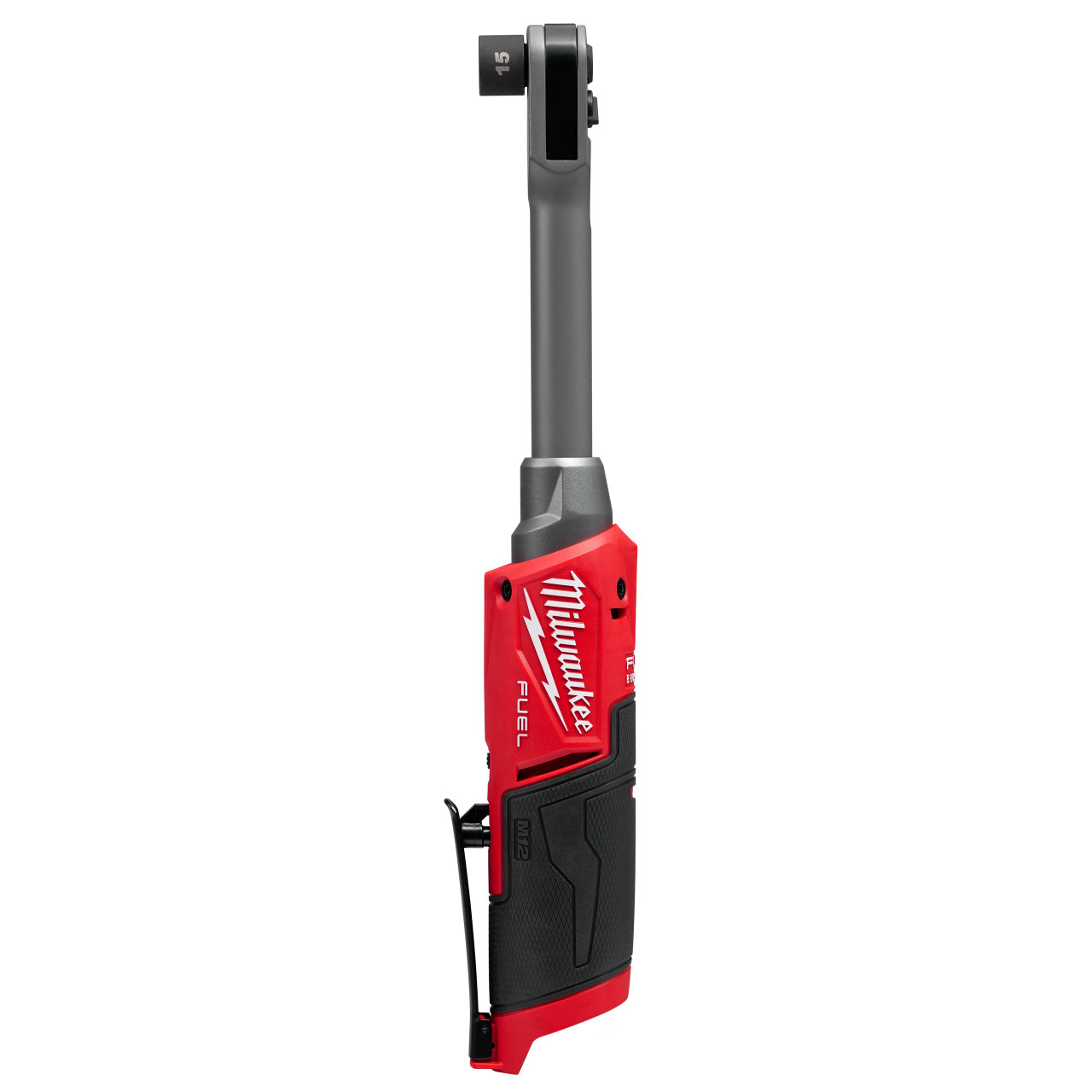

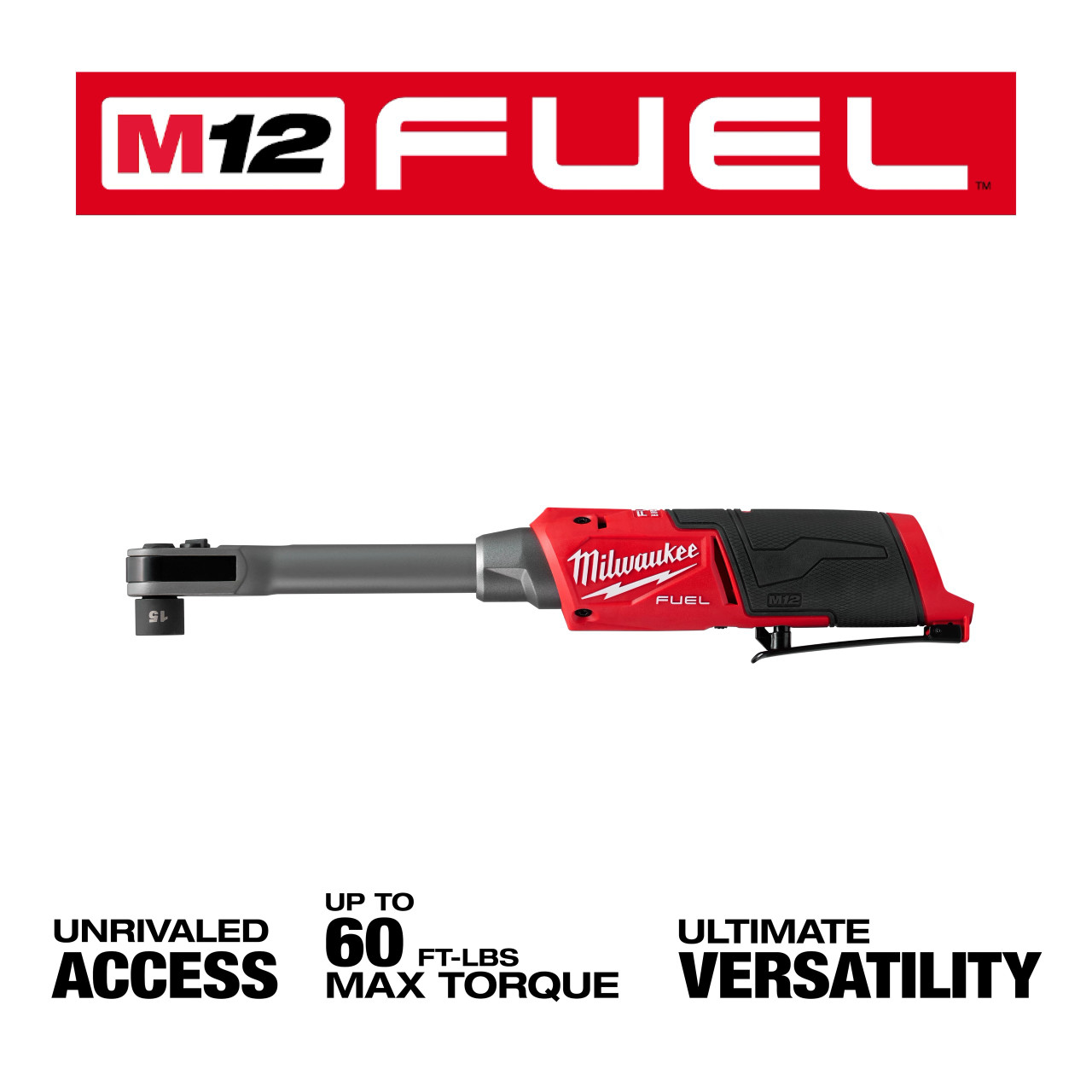

Milwaukee M12 FUEL™ INSIDER™ Extended Reach Box Ratchet (3050-20)

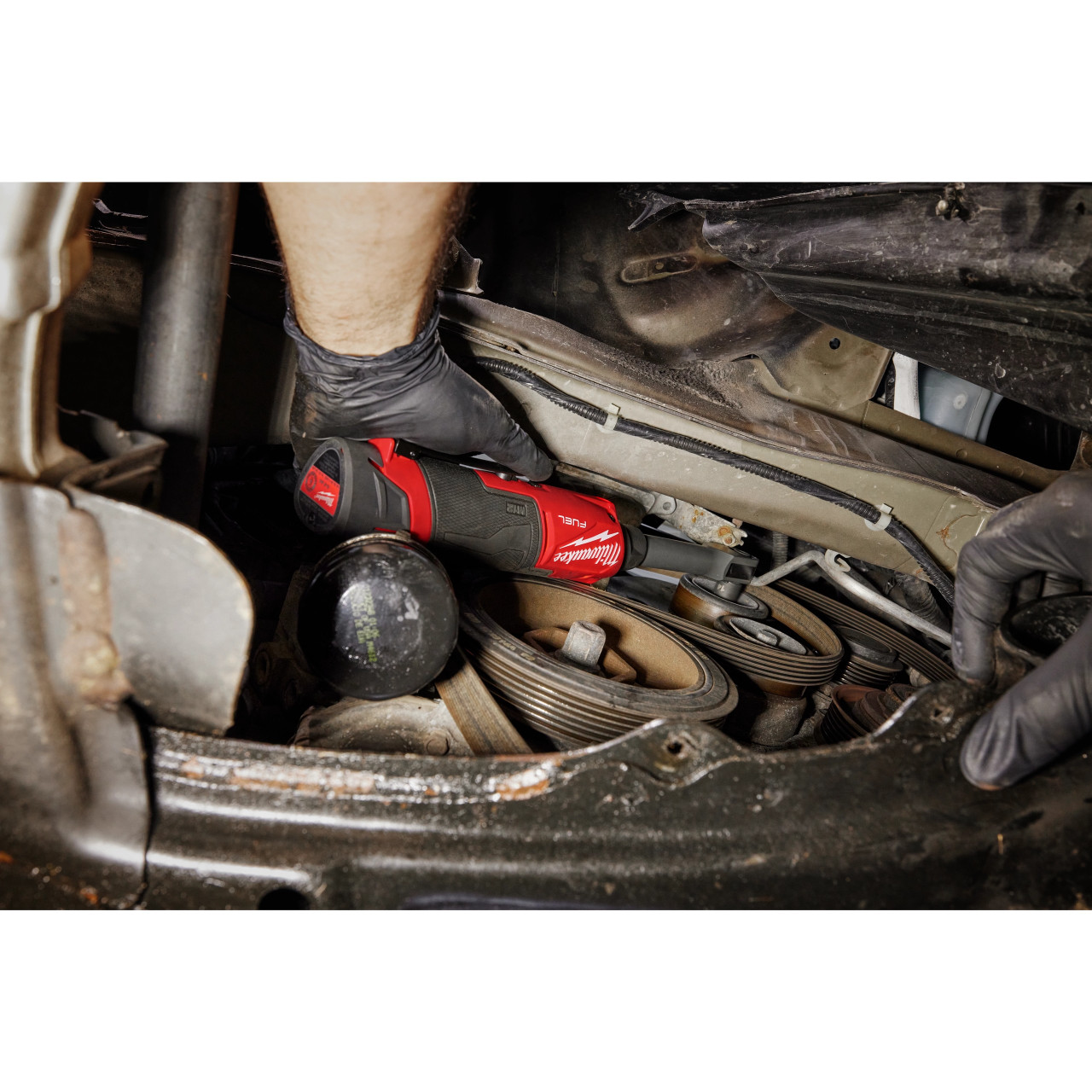

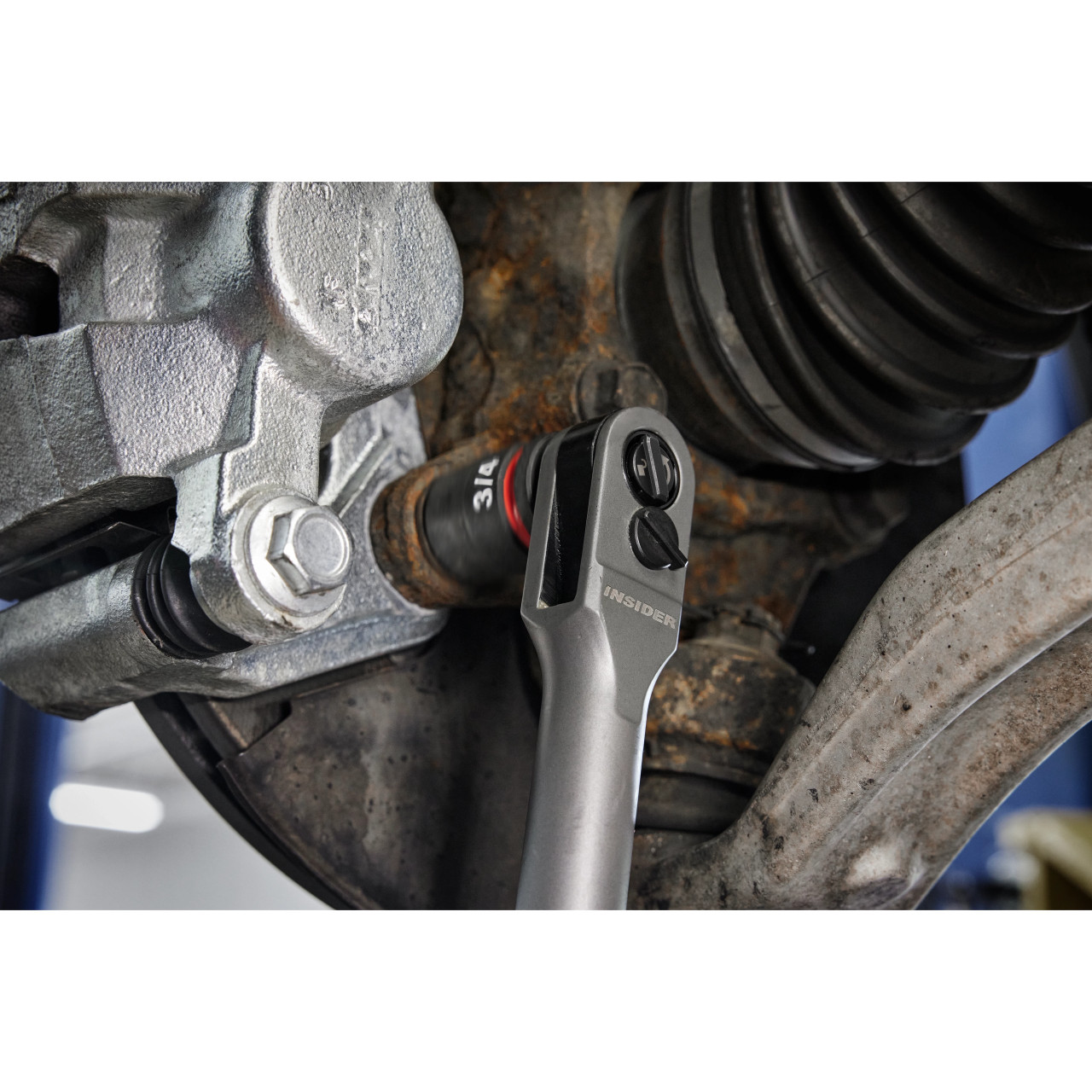

Our M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets & adapters to be inserted directly into the tool. Our M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over ¾” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60 FT-LBS OF MAX TORQUE and 350 RPMs to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with our provided INSIDER™ Box Ratchet Sockets (8-19, & 21mm), ¼” Hex Bit, ¼” anvil adapter, & 3/8” anvil adapter to tackle any job in the shop. Our Box Ratchet 6 Point Sockets are pass through up to 15mm & 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. Our M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is part of the M12™ System, which is fully compatible with over 150 solutions.
Features
- Unrivaled Access with INSIDER™ Box Ratchet Sockets
- Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
- Ultimate Versatility to get more jobs done with one tool
- Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
- Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
- POWERSTATE™ brushless motor delivers maximum power and longer motor life
- Can be used manually without engaging the tool’s motor
- Dual LED lights to illuminate work areas
- Extended reach neck for ultimate access and reduce knuckle busting
- On-board battery fuel gauge displays remaining run time
- Extended paddle switch for multiple grip positions
- Sockets can be inserted into both sides of the tool to eliminate the trigger from impeding access

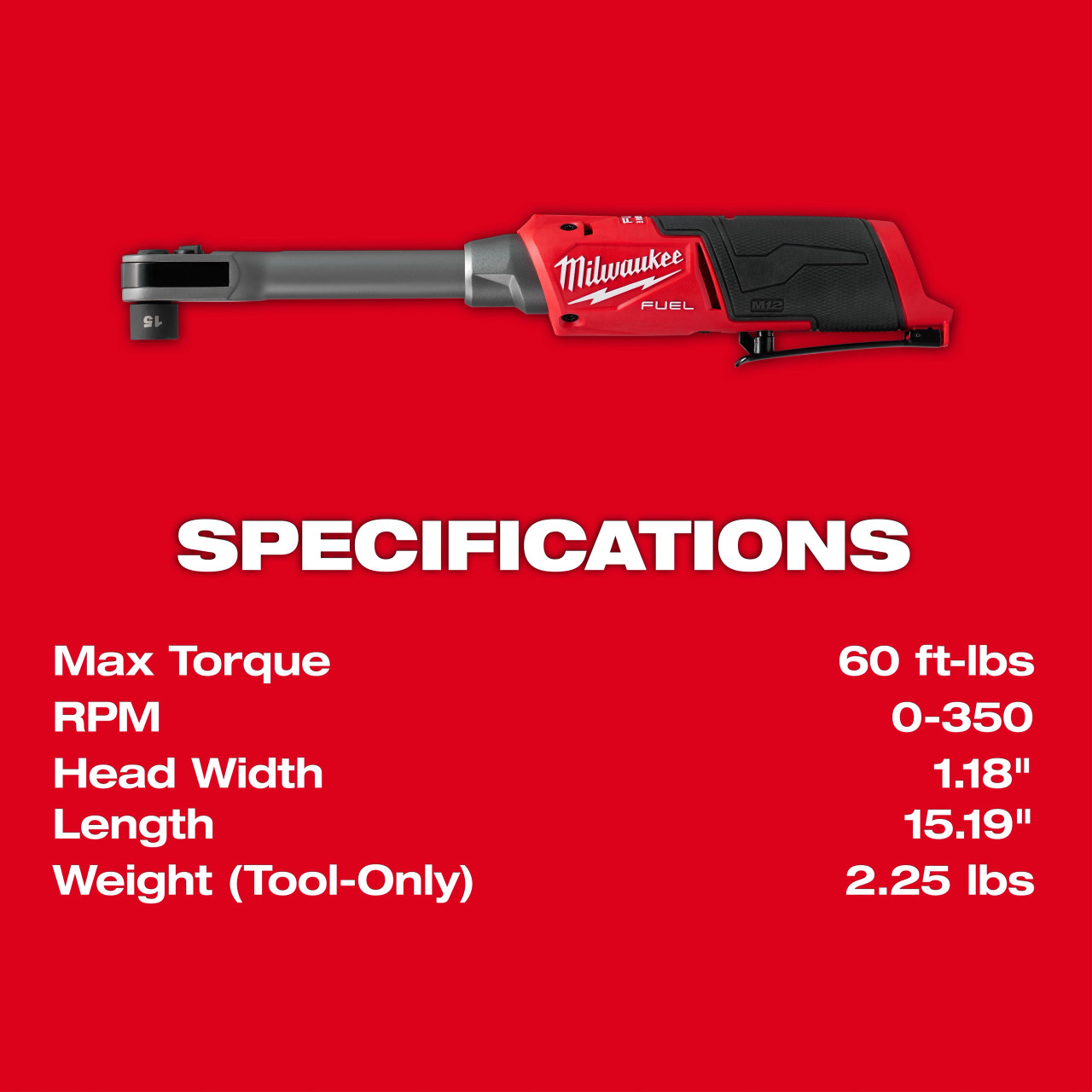

Specifications
| Brand | Milwaukee |
|---|---|
| Model | 3050-20 |
| Anvil Size | 1/2 in |
| Anvil Type | N/A |
| Height | 2.74 in |
| Length | 15.2 in |
| Width | 2 in |
| Badge Branding | FUEL™ |
| Battery System | M12™ |
| Color | Red |
| FUEL™ | Yes |
| Material | Metal |
| Maximum Torque | 60 ft-lbs |
| Motor Type | POWERSTATE™ Brushless |
| Weight | 2.3 lb |
| Number of Batteries Included | 0 |
| Number of Batteries Required | 1 |
| Number of Pieces Included | 6 |
| Number of Speed Settings | Variable |
| ONE-KEY™ Enabled | No |
| Tool Branding | FUEL™ |
| RPM Range | 0-350 RPM |
| Torque Range | 0 - 60ft-lbs |
| Warranty | 5 Year Limited Warranty |
| Weight w/Batteries | 2.7 lb |
| Weight Excluding Battery | 2.3 lb |

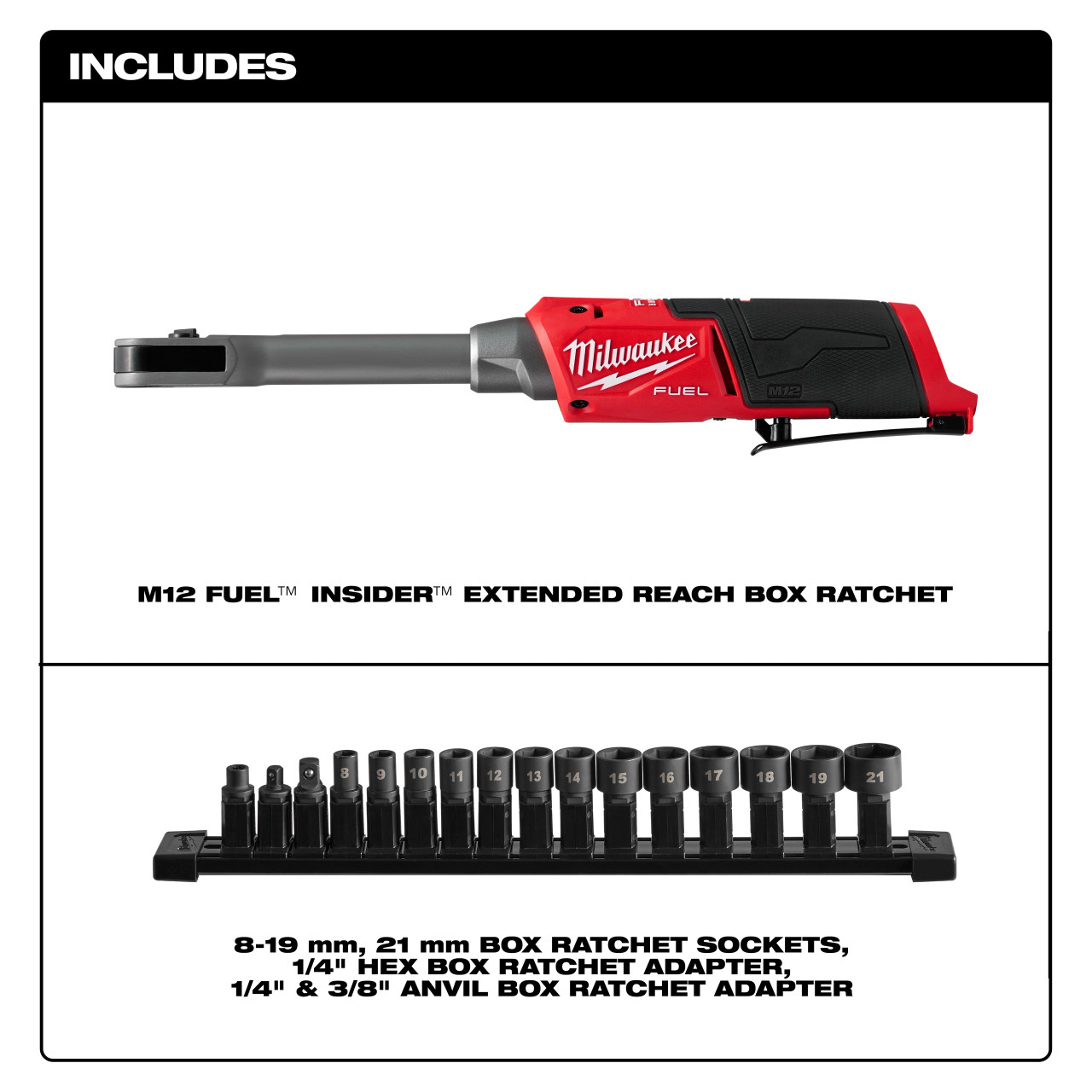

Includes
- (1) M12 FUEL™ INSIDER™ Extended Reach Box Ratchet
- (1) INSIDER™ Box Ratchet Sockets 8-19mm, 21mm
- (1) INSIDER™ Box Ratchet 1/4" Hex Adapter (49-16-1663)
- (1) INSIDER™ Box Ratchet 1/4" Anvil Adapter (49-16-1667)
- (1) INSIDER™ Box Ratchet 3/8" Anvil Adapter (49-16-1668)
