Product Description
Overview

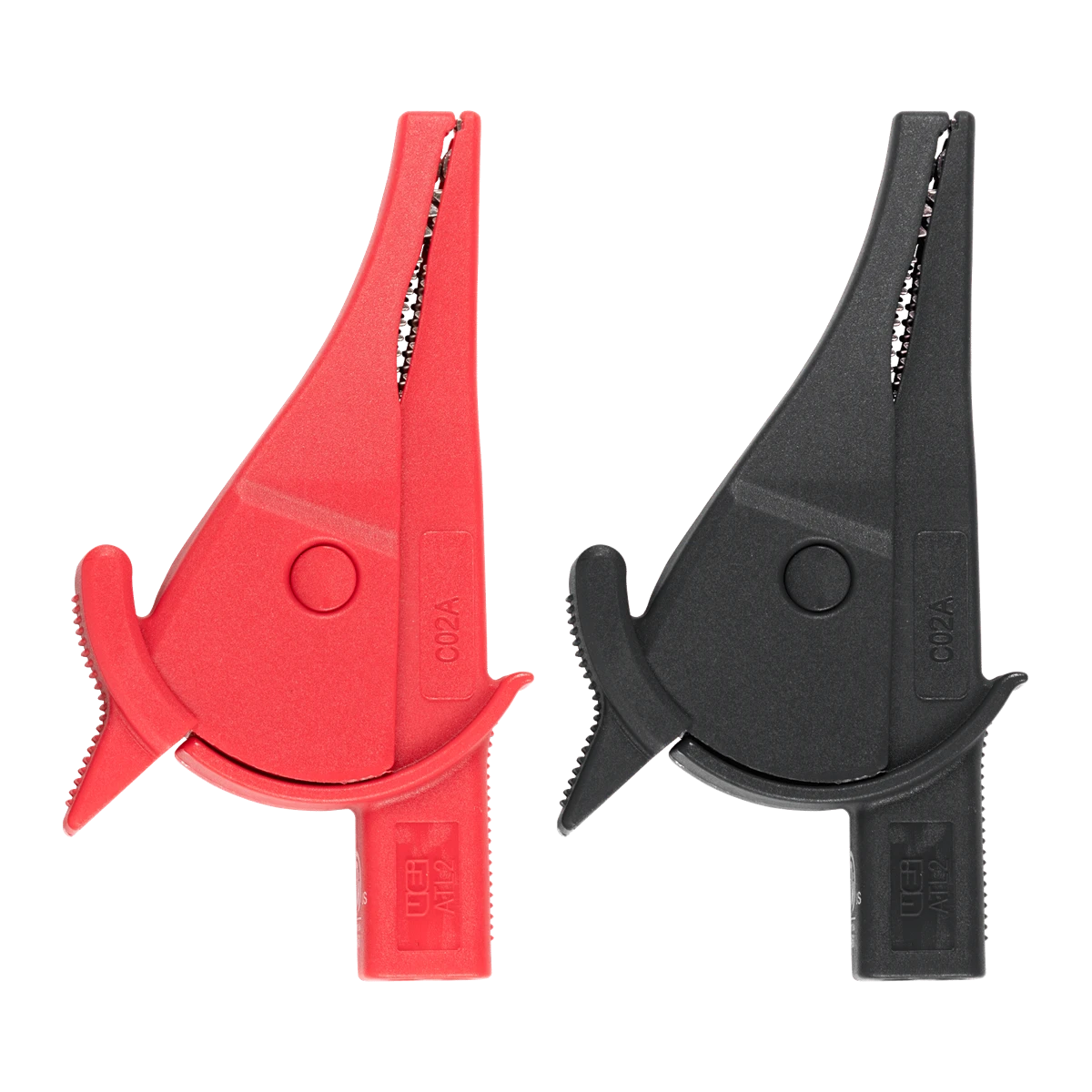

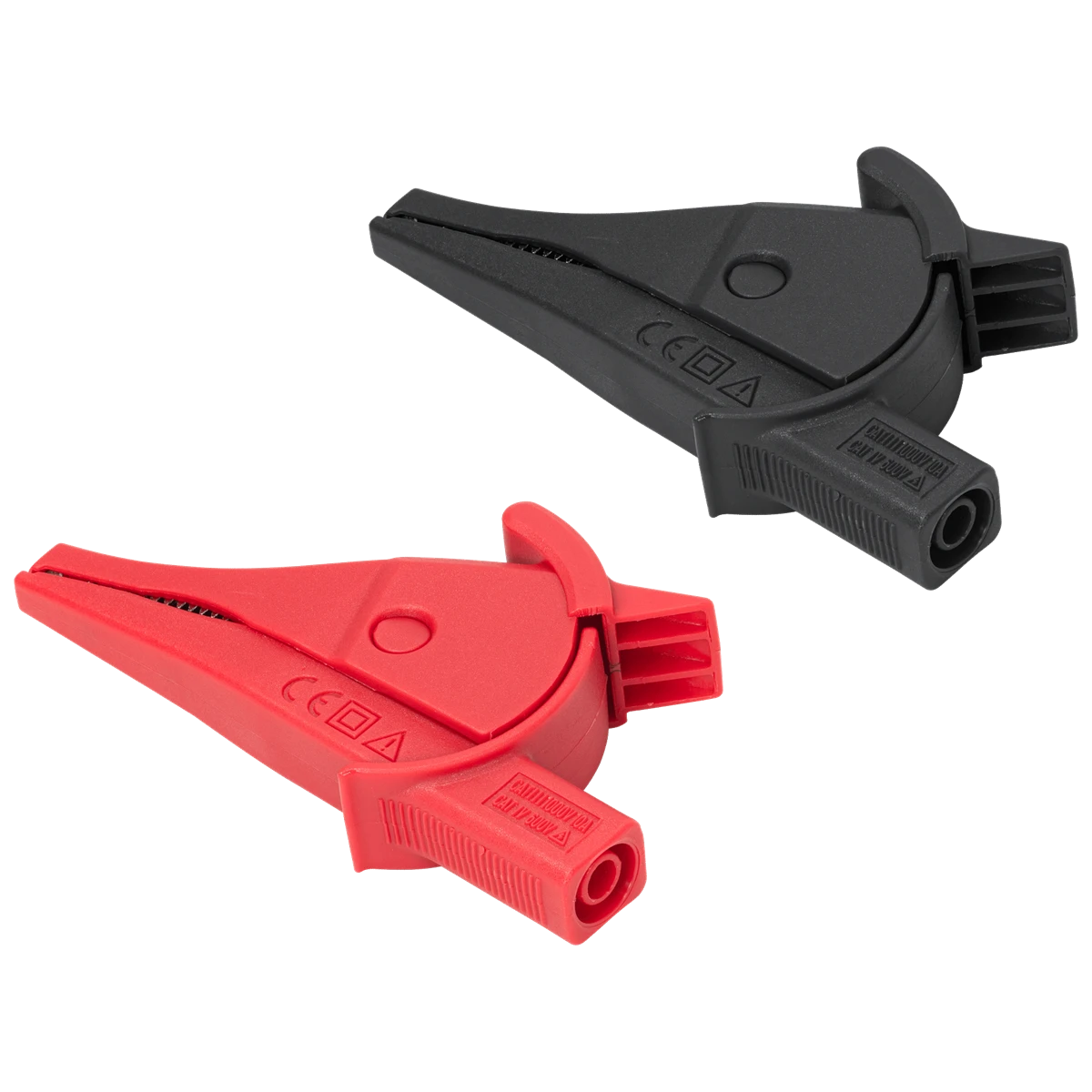

The UEi ATL2 Modular Test Lead Tips are professional-grade alligator clip attachments engineered to expand the capabilities of the ATLTX Modular Test Lead System. Designed for secure attachment to wires, terminals, and test points, these clips enable hands-free measurements while improving testing safety and efficiency.
The ATL2 features large-jaw clips with openings up to 30mm, making them suitable for a wide variety of electrical applications. Color-coded positive and negative clips provide easy identification, while the rugged construction supports demanding HVAC, industrial, and electrical troubleshooting environments.
Key Features
- Large-jaw alligator clip attachments
- Designed for use with ATLTX Modular Test Lead Set
- Female 4mm jack connections
- Jaw opening up to 30mm
- Color-coded positive and negative clips
- Supports hands-free measurements
- Durable professional-grade construction
- cETLus listed
- CAT IV 600V 10A safety rating
- CAT III 1000V 10A safety rating
Use Cases
- Electrical troubleshooting
- HVAC diagnostics
- Hands-free voltage testing
- Continuity testing
- Control board diagnostics
- Electrical maintenance
- Industrial servicing
- Equipment commissioning
Compatibility
Required Product
- UEi ATLTX Modular Test Lead Set
Also Available In
- UEi ATL301KIT
- Modular Test Lead Set
- Fine Point Probe Set
- Large Jaw Alligator Test Clip Set
- Grabber Test Clip Set
- Carrying Pouch
Benefits
- Provides secure electrical connections
- Allows hands-free measurements
- Improves testing efficiency
- Accommodates larger conductors and terminals
- Easy integration with modular lead systems
- Suitable for HVAC and industrial applications
FAQ
Q: Does the ATL2 work independently?
A: No. The ATL2 is designed to be used with the UEi ATLTX Modular Test Lead Set.
Q: How wide do the clip jaws open?
A: The alligator clip jaws can open up to 30mm.
Q: Are the clips color coded?
A: Yes. The clips are color-coded for positive and negative identification.
Q: What type of connector is used?
A: The clips use female 4mm jack connections.
Q: What safety ratings does the ATL2 have?
A: The ATL2 is rated CAT IV 600V 10A and CAT III 1000V 10A.
Technical Specs
- Product Type: Modular Alligator Clip Tips
- Model Number: ATL2
- Connection Type: Female 4mm Jack
- Jaw Opening: Up to 30mm
- Clip Style: Large Jaw Alligator Clips
- Color-Coded: Yes
- Hands-Free Testing: Yes
- ETL Listed: cETLus
- CAT Rating: CAT IV 600V, 10A
- CAT Rating: CAT III 1000V, 10A
- Compatible Lead System: ATLTX
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Compact design allows easy storage in tool bags and electrical testing kits.
Who This Is For
- HVAC Technicians
- Electricians
- Maintenance Professionals
- Industrial Technicians
- Service Contractors
- Electrical Diagnostics Specialists
End-of-Page Summary
The UEi ATL2 Modular Test Lead Tips provide large-jaw alligator clip functionality for the ATLTX Modular Test Lead System. Featuring 30mm jaw openings, CAT IV safety ratings, and hands-free testing capability, these clips offer a reliable solution for professional electrical troubleshooting and measurement applications.
