Product Description
Overview

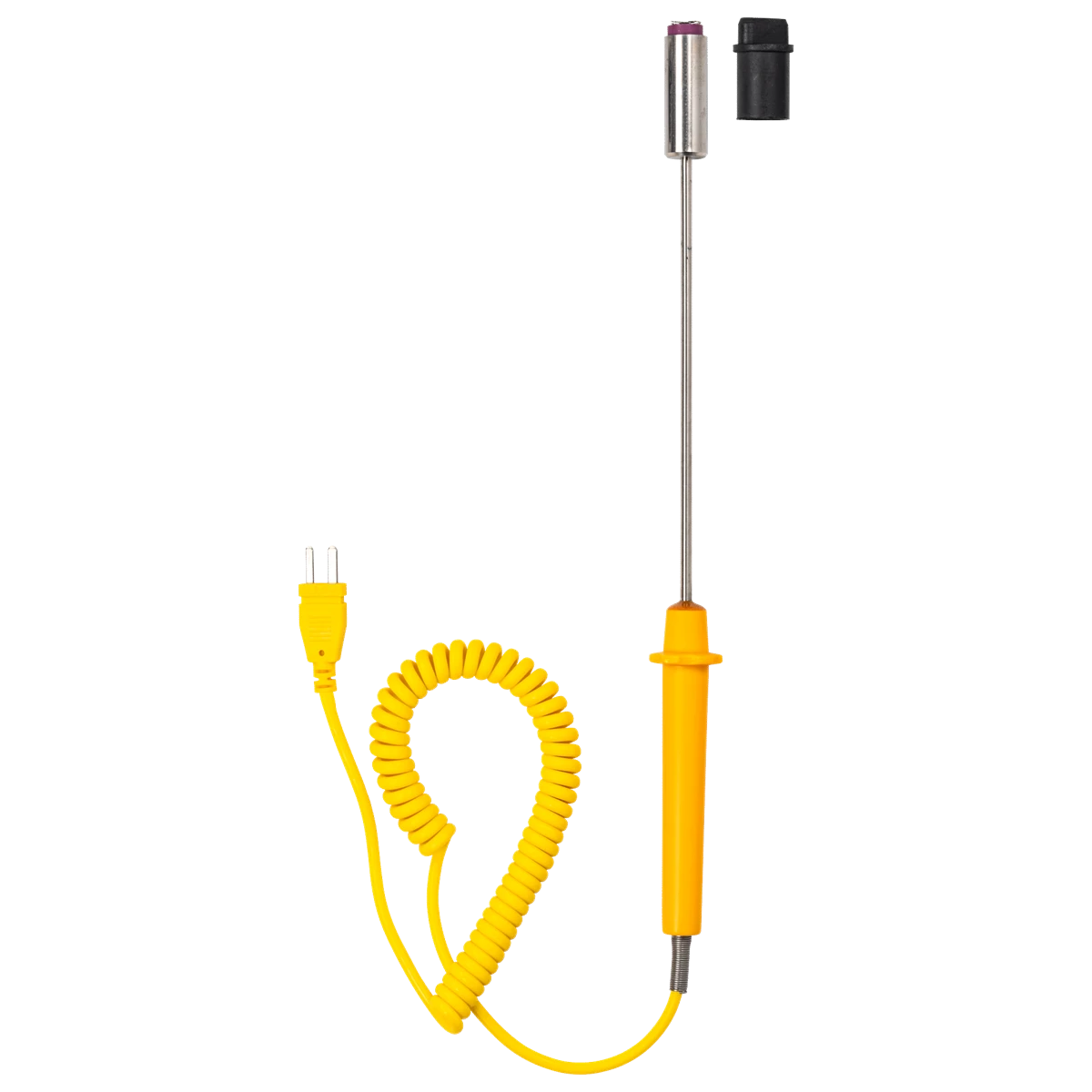

The UEi ATT36 K-Type Surface Temperature Probe is engineered for professionals who need accurate surface temperature measurements while maintaining operator safety. Designed with an 8-inch probe and ergonomic handle, the ATT36 allows technicians to safely measure hot surfaces without direct contact.
The integrated finger guard helps prevent accidental contact with heated equipment during testing, making it ideal for boilers, HVAC systems, heat exchangers, motors, piping, and other operational equipment.
A 5.25-foot coiled lead provides flexibility and extended reach while reducing cable clutter. The mini K-Type connector ensures compatibility with a wide range of UEi instruments for temperature diagnostics and monitoring.
Key Features
- K-Type surface temperature probe
- Designed for surface temperature measurements
- 8-inch probe length
- Ergonomic handle with built-in finger guard
- Enhanced user safety during measurements
- 5.25-foot coiled lead wire
- Mini K-Type connector
- Fast-response temperature sensing
- Durable field-ready construction
- Compatible with numerous UEi instruments
Use Cases
- Surface temperature measurements
- Boiler inspections
- HVAC diagnostics
- Heat exchanger testing
- Pipe temperature monitoring
- Mechanical equipment maintenance
- Preventive maintenance inspections
- Industrial temperature verification
Compatibility
Current Products
- UEi C161
- UEi C163
- UEi C165+
- UEi ACA
- UEi ACA/R
- UEi DL379B
- UEi DL389B
- UEi DL579
- UEi DL589
- UEi DL599
- UEi DT302
- UEi DT304
- UEi DT720
- UEi EPC
- UEi HAC
- UEi INF195C
- UEi TCM
Retired Products
- UEi ACM6000
- UEi ADM3201
- UEi C85
- UEi C100
- UEi C127
- UEi C155
- UEi C162
- UEi C164
- UEi C165
- UEi C255
- UEi C257
- UEi CO91
- UEi DL297T
- UEi DL429B
- UEi DL489
- UEi DM391
- UEi DM393
- UEi DT0150
- UEi DT150
- UEi DT221
- UEi DT222
- UEi DT301
- UEi DTK2
- UEi INF185
- UEi INF195
- UEi INF215
- UEi INF225
Benefits
- Provides accurate surface temperature measurements
- Finger guard improves user safety
- Extended coiled cable enhances flexibility
- Ideal for testing hot operating equipment
- Broad compatibility with UEi instruments
- Supports HVAC and industrial maintenance applications
FAQ
Q: What is the ATT36 designed to measure?
A: The ATT36 is designed for measuring surface temperatures on operational equipment, pipes, boilers, and HVAC systems.
Q: What safety feature is included on the probe?
A: The handle features a finger guard that helps prevent accidental contact with hot surfaces.
Q: What type of thermocouple is used?
A: The ATT36 uses a K-Type thermocouple sensor.
Q: How long is the cable?
A: The probe includes a 5.25-foot coiled lead wire.

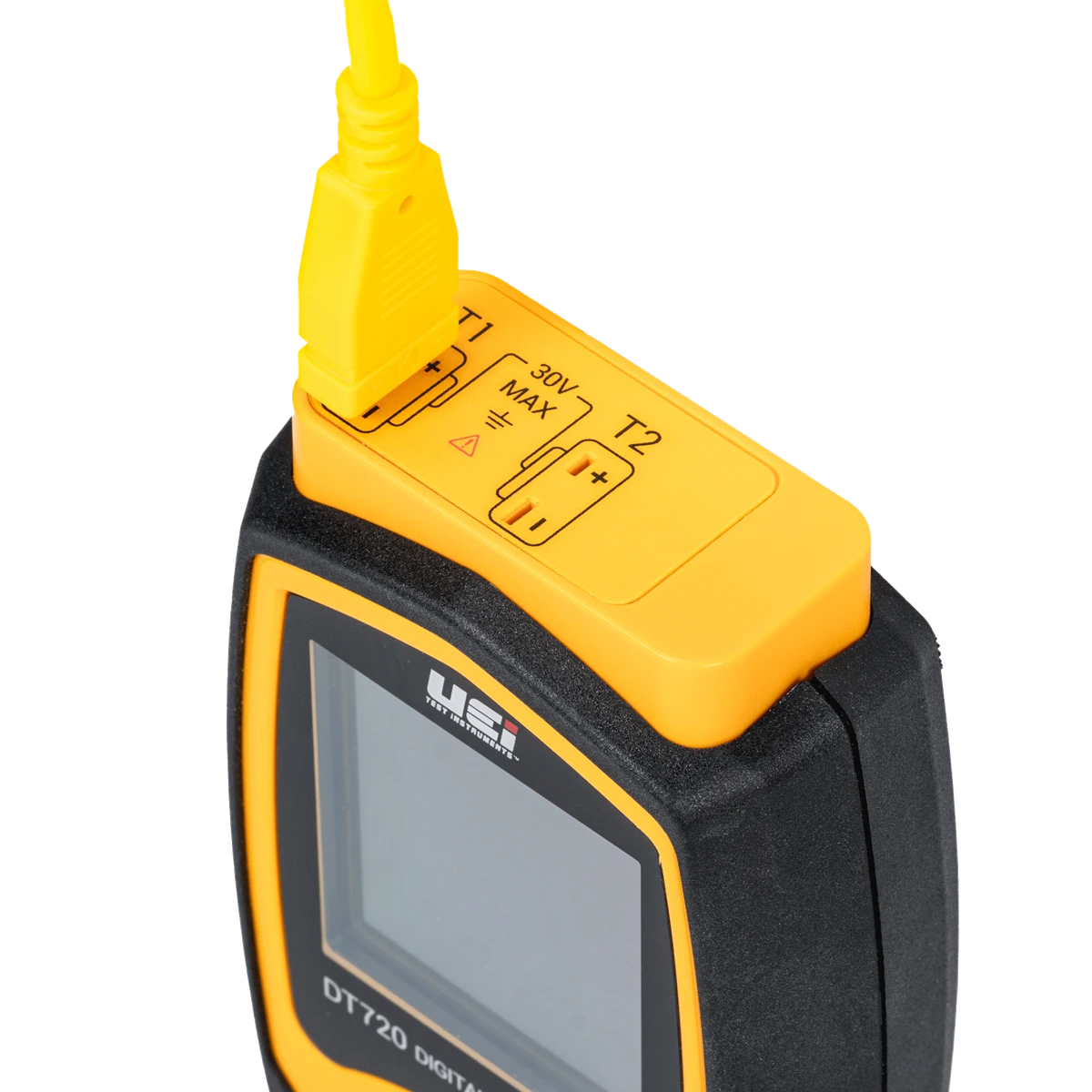

Q: Which instruments are compatible with the ATT36?
A: The ATT36 is compatible with a wide range of UEi K-Type temperature-capable instruments including combustion analyzers, clamp meters, thermometers, and HVAC testing equipment.
Technical Specs
General
- Product Type: Surface Temperature Probe
- Model Number: ATT36
- Probe Type: K-Type Thermocouple
- Application: Surface Temperature Measurement
Probe Specifications
- Probe Length: 8 Inches
- Lead Length: 5.25 Feet
- Wire Type: Coiled Wire
- Connector Type: Mini K-Type Connector
- Handle Included: Yes
- Finger Guard Included: Yes
Compatibility
- Compatible with UEi K-Type Temperature Measurement Instruments
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Coiled lead design allows compact storage and transport.
Who This Is For
- HVAC Technicians
- Boiler Service Technicians
- Industrial Maintenance Professionals
- Mechanical Contractors
- Facilities Maintenance Personnel
- Service Technicians
End-of-Page Summary
The UEi ATT36 K-Type Surface Temperature Probe provides safe and accurate surface temperature measurements with its 8-inch probe, ergonomic handle, and integrated finger guard. Featuring a 5.25-foot coiled lead and mini K-Type connector, it is ideal for HVAC diagnostics, boiler inspections, equipment maintenance, and industrial temperature monitoring.
