Product Description
Brushless 20V MAX* XR 1 in. SDS Plus rotary hammer with 2.6 Joules impact energy, three operation modes, and lightweight design. Bare tool — battery and charger sold separately.
Overview

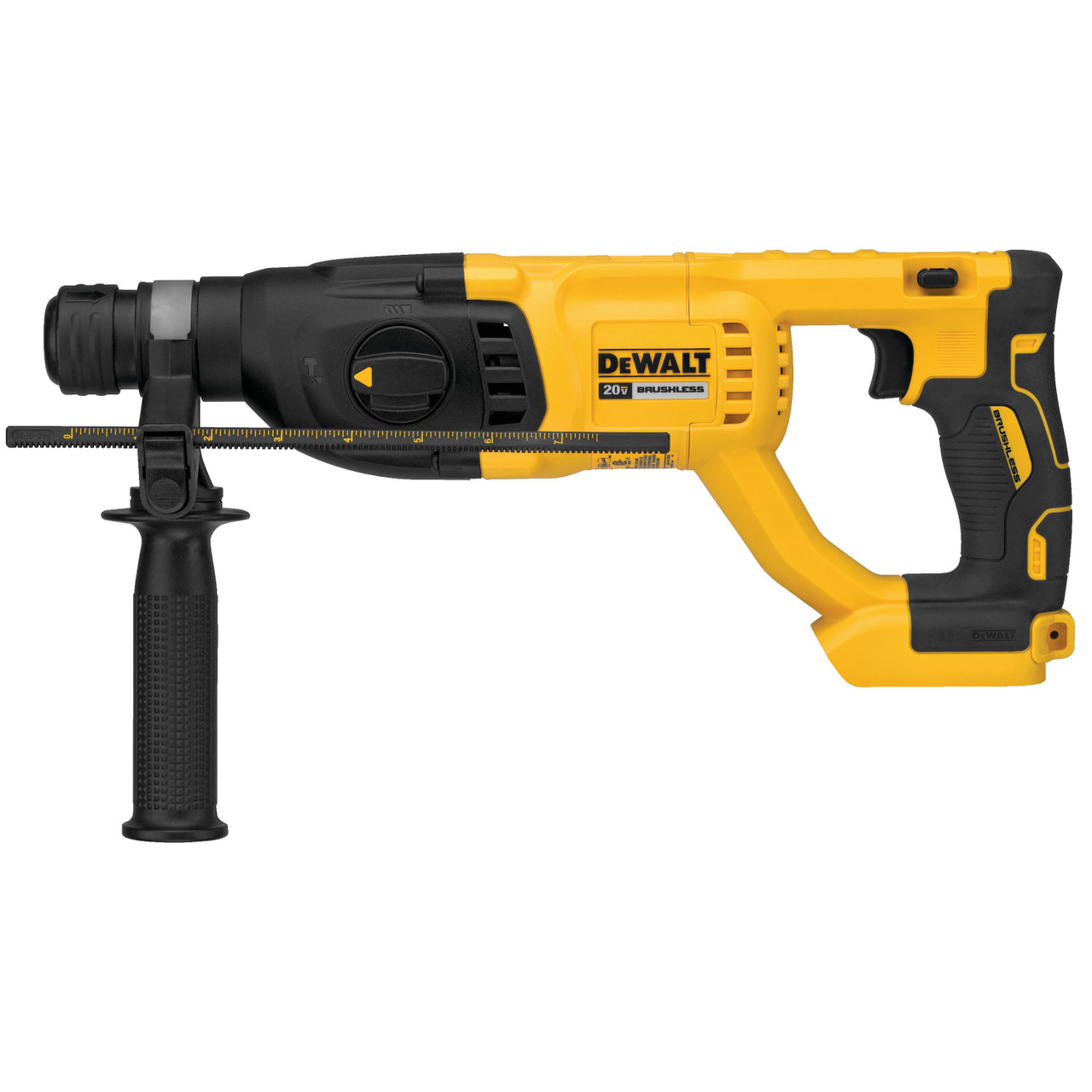

The Dewalt DCH133B 20V MAX* XR Brushless 1 in. SDS Plus D‑Handle Rotary Hammer delivers high performance with 2.6 Joules of impact energy. Powered by a brushless motor and German‑engineered mechanism, it ensures durability and runtime efficiency. The rotating dial allows selection between drill, hammer drill, and chip modes, making it versatile for forming, rod hanging, structural connections, beam anchorage, and steel stanchion mounting. Compact at 15.26 in. and weighing only 4.6 lbs, it is ideal for professional concrete drilling and fastening applications.
Key Features
-
2.6 Joules of impact energy for fast drilling in concrete
-
Brushless motor with German‑engineered mechanism for durability
-
Rotating dial with drill, hammer drill, and chip modes
-
Lightweight 4.6 lbs design for extended use
-
Dust collection ready for cleaner operation
-
Bare tool — battery and charger sold separately
Use Cases
-
Concrete drilling and anchoring
-
Structural connections and beam fastening
-
Rod hanging and stanchion mounting
-
Clip and bracket installations
Compatibility
-
Works with Dewalt 20V MAX* lithium‑ion batteries (sold separately)
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
High impact energy for demanding applications
-
Versatile with three operation modes
-
Lightweight and ergonomic for reduced fatigue
-
Cordless convenience with 20V MAX* system
FAQ
-
Does it include batteries? → No, bare tool only
-
What is the impact energy? → 2.6 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it compatible with 20V MAX batteries?* → Yes
Technical Specs
-
Model Number: DCH133B
-
Chuck Type: SDS+
-
Impact Energy: 2.6 Joules
-
No‑Load Speed: 0–1,500 RPM
-
Blows/Min: 0–5,550 BPM
-
Optimal Concrete Drilling: 3/16–5/8 in.
-
Tool Length: 15.26 in
-
Tool Weight: 4.6 lbs
-
Clutch: Mechanical
-
Dust Collection: Ready
-
System: 20V MAX*
Warranty Information
3‑year limited warranty, 2‑year free service, 90‑day money‑back guarantee.
Shipping Information
-
Box Dimensions: 16" × 12" × 6"
-
Package Weight: ~9 lbs
-
Includes: DCH133 rotary hammer, 360° side handle, depth rod, manual
-
Shipping Class: Heavy‑duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors
End‑of‑Page Summary
Dewalt DCH133B 20V MAX* XR Brushless 1 in. SDS Plus D‑Handle Rotary Hammer with 2.6 Joules impact energy, three operation modes, and lightweight design. Bare tool — battery and charger sold separately.
