Product Description
Midweight brushless rotary hammer with 4.5 Joules impact energy, SDS+ chuck, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, OSHA Table 1 compliance, and Tool Connect™ Tag‑Ready design. Tool‑only version with side handle and depth rod included.
Overview

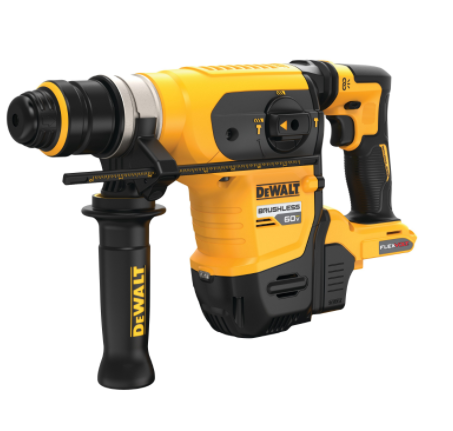

The Dewalt DCH416B FLEXVOLT 60V MAX* Rotary Hammer is engineered for heavy‑duty structural and anchoring applications. Delivering 4.5 Joules of impact energy through a German‑engineered brushless mechanism, it ensures fast drilling and chipping in the hardest concrete. Its midweight design makes it ideal for structural connections, beam and column anchorage, seismic attachments, rod hanging, and cable tray mounting. Integrated with SHOCKS Active Vibration Control® and Anti‑Rotation E‑Clutch®, it enhances safety and reduces vibration compared to standard rotary hammers. With Wireless Tool Control™, it links to the DCV585 dust extractor for remote activation, and its Tag‑Ready design allows asset tracking via Tool Connect™.
Key Features
-
4.5 Joules impact energy for fast drilling in concrete
-
Midweight design for structural and anchoring applications
-
Brushless motor with German‑engineered mechanism for efficiency
-
SHOCKS Active Vibration Control® reduces vibration at handles
-
Anti‑Rotation E‑Clutch® shuts down tool in bind‑up situations
-
OSHA Table 1 compliant with dust shroud and extractor
-
Rotating dial for drilling, hammer drilling, and chipping modes
-
Tool Connect™ Tag‑Ready for jobsite asset management
-
Tool‑only version (battery and charger sold separately)
Technical Specs
-
Model Number: DCH416B
-
Blows/Min: 0–4200 BPM
-
Chuck Type: SDS Plus
-
Impact Energy: 4.5 Joules
-
No Load Speed: 0–725 RPM
-
Optimal Concrete Drilling: 5/8" – 1-1/8"
-
Tool Weight: 9 lbs (tool only)
-
Vibration Measurement: 6.3 m/s²
-
System: FLEXVOLT 60V MAX* Cordless
Includes
-
Dewalt DCH416 Rotary Hammer
-
360° Side Handle
-
Depth Rod
End‑of‑Page Summary
Dewalt DCH416B FLEXVOLT 60V MAX* Rotary Hammer with brushless motor, 4.5 Joules impact energy, SDS+ chuck, SHOCKS Active Vibration Control®, Anti‑Rotation E‑Clutch®, and Tool Connect™ readiness. Tool‑only version includes side handle and depth rod.
