Product Description
Brushless 60V MAX* XR 1‑7/8 in. SDS MAX combination rotary hammer with 13.3 Joules impact energy, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, and constant speed electronics. Bare tool — battery and charger sold separately.
Overview

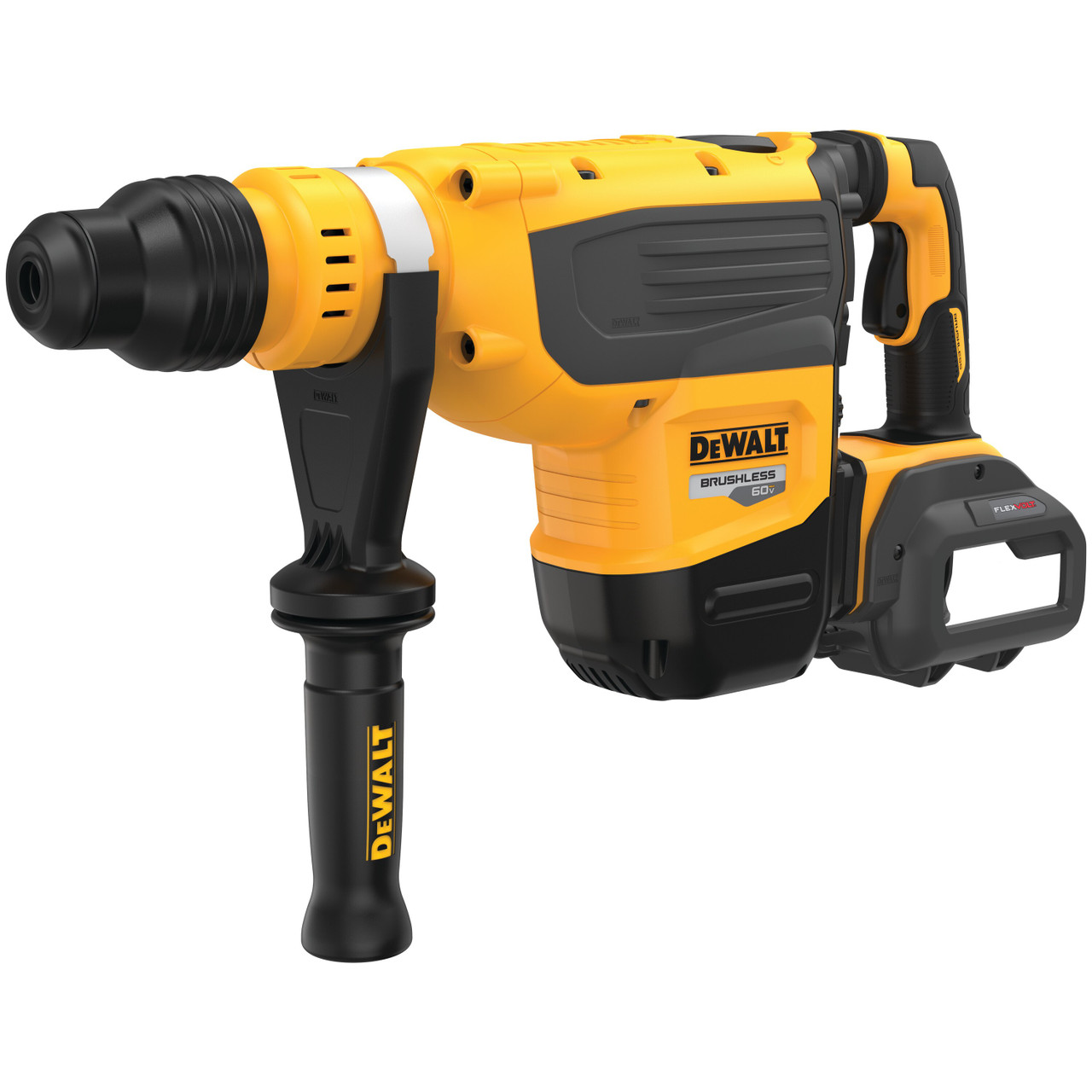

The Dewalt DCH733B 60V MAX* XR Brushless 1‑7/8 in. SDS MAX Combination Rotary Hammer delivers 13.3 Joules of impact energy for fast drilling and chipping in the hardest concrete. Integrated with the Anti‑Rotation E‑Clutch® System, it shuts down in bind‑up situations for user protection. SHOCKS Active Vibration Control® reduces vibration felt at the handles, while constant speed electronics maintain performance under load. Midweight at 20 lbs, it is ideal for horizontal and downward drilling, rebar dowelling (#6–#9), dry coring up to 5 in., and heavy chipping applications. Tag Ready™ for DEWALT Tool Connect™, this hammer offers advanced tracking and safety features.
Key Features
-
13.3 Joules of impact energy for heavy‑duty drilling and chipping
-
Anti‑Rotation E‑Clutch® shuts down tool in bind‑up situations
-
SHOCKS Active Vibration Control® reduces vibration
-
Constant speed electronics maintain performance under load
-
Midweight design for horizontal and downward drilling
-
Tag Ready™ for DEWALT Tool Connect™ tracking
-
Bare tool — battery and charger sold separately
Use Cases
-
Rebar dowelling (#6–#9)
-
Dry coring up to 5 in.
-
Structural connections and anchoring
-
Chipping lower to mid walls
-
Ground rod driving and bushing
Compatibility
-
Works with Dewalt 60V MAX* FLEXVOLT® batteries (sold separately)
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
Maximum impact energy for demanding applications
-
Enhanced safety with E‑Clutch® and SHOCKS vibration control
-
Constant speed under load for consistent performance
-
Cordless convenience with FLEXVOLT® system
FAQ
-
Does it include batteries? → No, bare tool only
-
What is the impact energy? → 13.3 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with DWH304DH extractor
Technical Specs
-
Model Number: DCH733B
-
Chuck Type: SDS MAX
-
Impact Energy: 13.3 Joules
-
No‑Load Speed: 177–355 RPM
-
Blows/Min: 1,350–2,705 BPM
-
Optimal Concrete Drilling: 3/4–1‑3/4 in.
-
Max Core Diameter: 5 in.
-
Tool Length: 23.5 in
-
Tool Height: 11.2 in
-
Tool Weight: 20 lbs
-
Vibration Measurement: 9.0 m/s²
-
Dust Collection: Ready
-
Clutch: E‑Clutch® + Mechanical
-
System: 60V MAX*
Warranty Information
3‑year limited warranty, 2‑year free service, 90‑day money‑back guarantee.
Shipping Information
-
Box Dimensions: 24" × 16" × 10"
-
Package Weight: ~25 lbs
-
Includes: DCH733 rotary hammer, 360° side handle, manual
-
Shipping Class: Heavy‑duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing maximum cordless performance
End‑of‑Page Summary
Dewalt DCH733B 60V MAX* XR Brushless 1‑7/8 in. SDS MAX Combination Rotary Hammer with 13.3 Joules impact energy, Anti‑Rotation E‑Clutch®, SHOCKS Active Vibration Control®, and constant speed electronics. Bare tool — battery and charger sold separately.
