Product Description
Brushless 60V MAX* XR 1-9/16 in. SDS MAX combination rotary hammer with 6.1 Joules impact energy, Anti-Rotation E-Clutch®, SHOCKS Active Vibration Control®, and constant speed electronics. Bare tool — battery and charger sold separately.
Overview

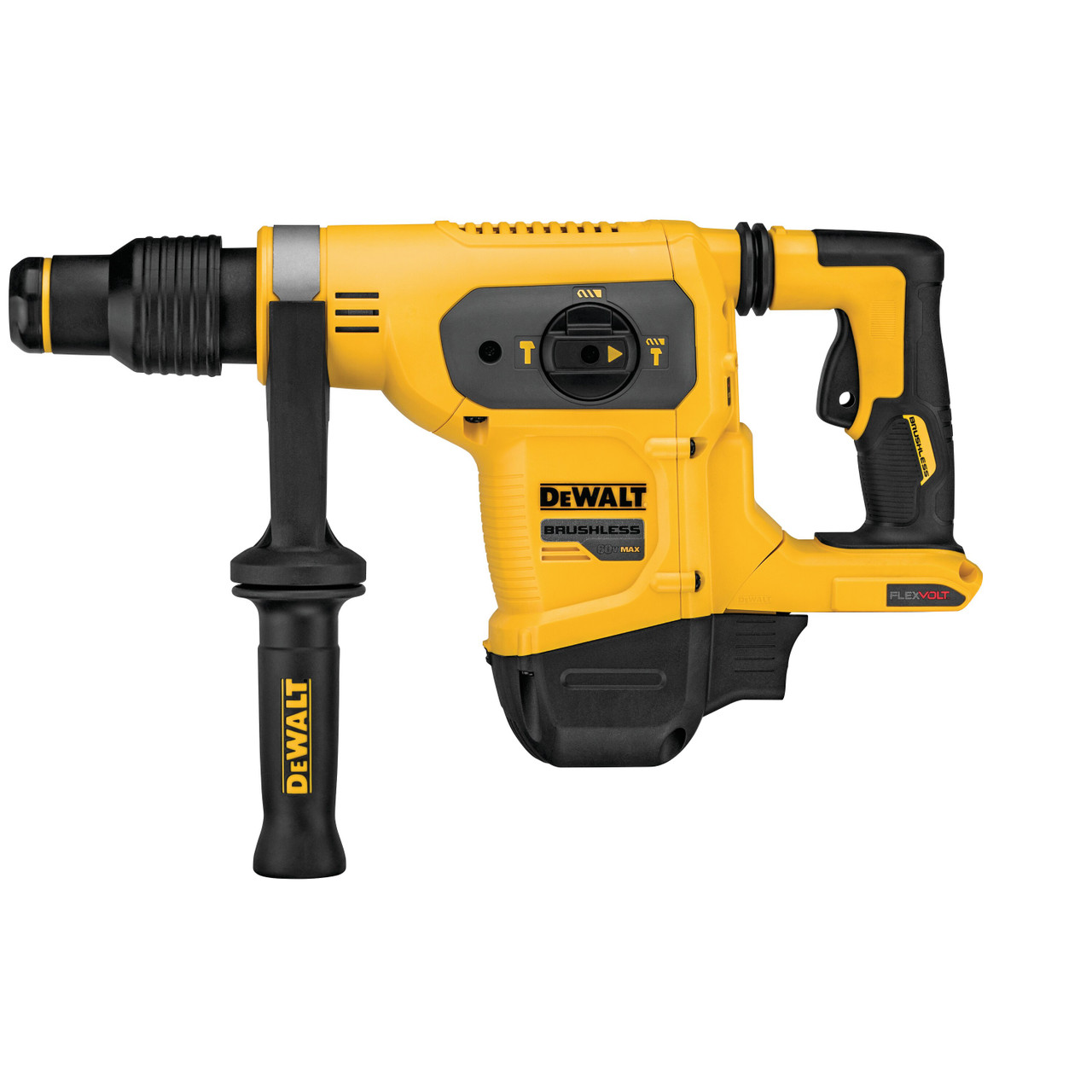

The Dewalt DCH481B 60V MAX* XR Brushless 1-9/16 in. SDS MAX Combination Rotary Hammer delivers 6.1 Joules of impact energy for fast drilling and chipping in the hardest concrete. Integrated with the Anti-Rotation E-Clutch® System, it shuts down in bind-up situations for user protection. SHOCKS Active Vibration Control® reduces vibration felt at the handles, while constant speed electronics maintain performance under load. Lightweight at 11.9 lbs, it is ideal for horizontal drilling, rebar dowelling (#3–#6), dry coring up to 3 in., and mid-to-upper wall chipping. Tag Ready™ for DEWALT Tool Connect™, this hammer offers advanced tracking and safety features.
Key Features
-
6.1 Joules of impact energy for heavy-duty drilling and chipping
-
Anti-Rotation E-Clutch® shuts down tool in bind-up situations
-
SHOCKS Active Vibration Control® reduces vibration
-
Constant speed electronics maintain performance under load
-
Lightweight design for horizontal drilling and overhead applications
-
Tag Ready™ for DEWALT Tool Connect™ tracking
-
Bare tool — battery and charger sold separately
Use Cases
-
Rebar dowelling (#3–#6)
-
Dry coring up to 3 in.
-
Structural connections and anchoring
-
Chipping mid-to-upper walls and ceilings
-
Ground rod driving and bushing
Compatibility
-
Works with Dewalt 60V MAX* FLEXVOLT® batteries (sold separately)
-
Compatible with Dewalt chargers and accessories
Benefits / Why Choose This Model
-
Extreme impact energy for demanding applications
-
Enhanced safety with E-Clutch® and SHOCKS vibration control
-
Constant speed under load for consistent performance
-
Cordless convenience with FLEXVOLT® system
FAQ
-
Does it include batteries? → No, bare tool only
-
What is the impact energy? → 6.1 Joules
-
What modes are available? → Drill, hammer drill, chip
-
Is it OSHA compliant? → Yes, with DWH304DH extractor
Technical Specs
-
Model Number: DCH481B
-
Chuck Type: SDS MAX
-
Impact Energy: 6.1 Joules
-
No-Load Speed: 540 RPM
-
Blows/Min: 3,150 BPM
-
Optimal Concrete Drilling: 1/2–1-1/8 in.
-
Max Core Diameter: 3 in.
-
Tool Length: 19.75 in
-
Tool Weight: 11.9 lbs
-
Vibration Measurement: 9.4 m/s²
-
Dust Collection: Ready
-
Clutch: E-Clutch® + Mechanical
-
System: 60V MAX*
Warranty Information
3-year limited warranty, 2-year free service, 90-day money-back guarantee.
Shipping Information
-
Box Dimensions: 20" × 14" × 8"
-
Package Weight: ~16 lbs
-
Includes: DCH481 rotary hammer, 360° side handle, manual
-
Shipping Class: Heavy-duty cordless tool
Who This Is For
-
Concrete workers
-
Structural installers
-
Industrial contractors needing heavy-duty cordless performance
End-of-Page Summary
Dewalt DCH481B 60V MAX* XR Brushless 1-9/16 in. SDS MAX Combination Rotary Hammer with 6.1 Joules impact energy, Anti-Rotation E-Clutch®, SHOCKS Active Vibration Control®, and constant speed electronics. Bare tool — battery and charger sold separately.
