Product Description
Compact brushless rotary hammer with 1.4 Joules impact energy, SDS+ chuck, SHOCKS Active Vibration Control®, OSHA Table 1 compliance, and mode selector switch. Tool‑only version with side handle, depth rod, and belt hook included.
Overview

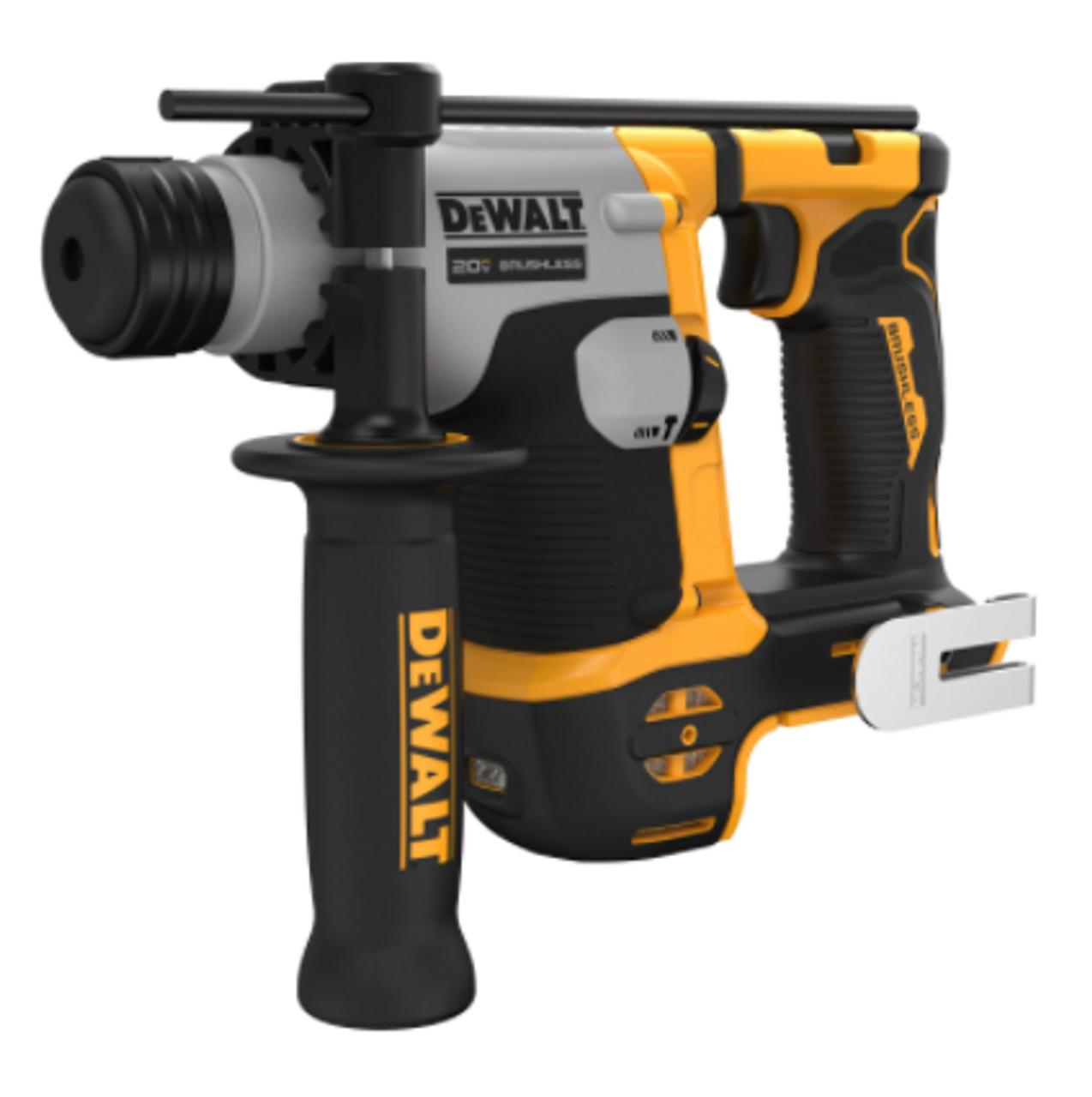

The Dewalt DCH172B ATOMIC 20V MAX* Rotary Hammer is engineered for demanding fastening and drilling tasks. Delivering 1.4 Joules of impact energy through a German‑engineered brushless mechanism, it ensures fast drilling in concrete with optimized runtime. Its compact and lightweight design makes it ideal for rod hanging, concrete forming, cable tray and strut mounting, clip and bracket mounting, and railing installation. Integrated with SHOCKS Active Vibration Control®, it reduces vibration felt at the handles compared to standard rotary hammers. When paired with the DWH200D dust shroud and DWH161D1 dust extractor, it becomes OSHA Table 1 compliant for dust control.
Key Features
-
1.4 Joules impact energy for fast drilling in concrete
-
Compact design for maneuverability in tight spaces
-
Brushless motor with German‑engineered mechanism for efficiency
-
SHOCKS Active Vibration Control® reduces vibration at handles
-
OSHA Table 1 compliant with dust shroud and extractor
-
Mode selector switch for drill and hammer drill applications
-
Lightweight at only 4.4 lbs
-
Tool‑only version (battery and charger sold separately)
Technical Specs
-
Model Number: DCH172B
-
Blows/Min: 0–1100 BPM
-
Chuck Type: SDS+
-
Impact Energy: 1.4 Joules
-
No Load Speed: 0–1060 RPM
-
Optimal Concrete Drilling: 5/32" – 1/2"
-
Tool Weight: 4.4 lbs
-
Vibration Measurement: 8.8 m/s²
-
System: ATOMIC 20V MAX* Cordless
Includes
-
Dewalt DCH172 Rotary Hammer
-
360° Side Handle
-
Depth Rod
-
Belt Hook
End‑of‑Page Summary
Dewalt DCH172B ATOMIC 20V MAX* Rotary Hammer with brushless motor, 1.4 Joules impact energy, SDS+ chuck, SHOCKS Active Vibration Control®, compact design, and OSHA Table 1 compliance. Tool‑only version includes side handle, depth rod, and belt hook.
