Product Description

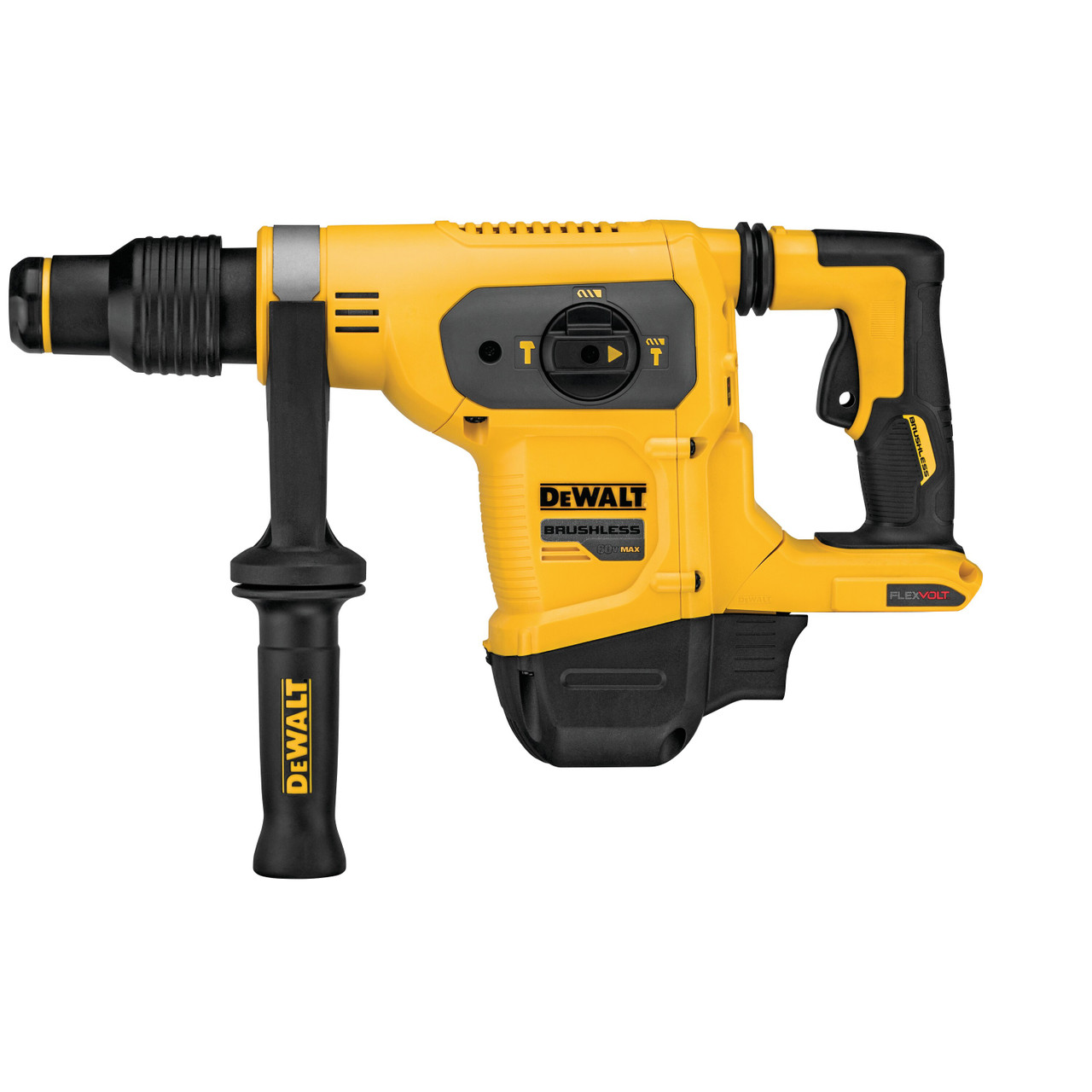

The 60V MAX* 1-9/16 in. Brushless SDS MAX Combination Hammer is a light weight, high-peroformance hammer that is powered by a brushless motor and a durable German engineered mechanism. It delivers 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. The constant speed electronics allow the tool to maintain speed under load. The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications, dry coring up to 3 in., and chipping in any mid to upper wall and ceiling. This hammer is part of the PERFORM & PROTECT™ product line, integrated with the Anti-Rotation E-CLUTCH® System and the SHOCKS Active Vibration Control® System. E-CLUTCH® shuts down the tool in bind up situations. SHOCKS™ reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready™ so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the DEWALT Tool Connect™ app.
FEATURES & SPECS
FEATURES
- 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete.
- Anti-Rotation E-CLUTCH System shuts down the tool in bind up situations.
- Constant speed electronics allows the tool to maintain speed under load.
- SHOCKS Active Vibration Control System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
- The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications and dry coring up to 3 in.
- Brushless motor and German-engineered mechanism.
- Tag Ready™ so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect™ app.
- Ideally suited for chipping in any lower wall and floor, ground rod driving, and bushing.
SPECIFICATIONS
- BLOWS/MIN 3,150 BPM
- CHARGERS/BATTERIES SOLD SEPERATLEY
- CHIPPING YES
- CHISEL ROTATION TRUE
- CHUCK TYPE SDS MAX
- CLUTCH E-CLUTCH™ AND INTEGRAL MECHANICAL CLUTCH
- E-CLUTCH(TM) YES
- IMPACT ENERGY 6.1 JOULES
- MAX. DIAMETER CORE 3 IN
- NO LOAD SPEED 540 RPM
- OPTIMAL CONCRETE DRILLING 1/2 - 1-1/8 IN
- POWER TOOL TYPE CORDLESS
- SYSTEM 60V MAX*
- TOOL LENGTH 19.75 IN
- TOOL WEIGHT 11.90 LBS
- VIBRATION CONTROL YES - SHOCKS™
- VIBRATION MEASUREMENT 9.4 M/S²
INCLUDES
- DCH481 60V MAX* Combination Rotary Hammer
- 360? Side Handle
