Product Description
Milwaukee M12 FUEL™ 1/4" Ratchet (3052-20)

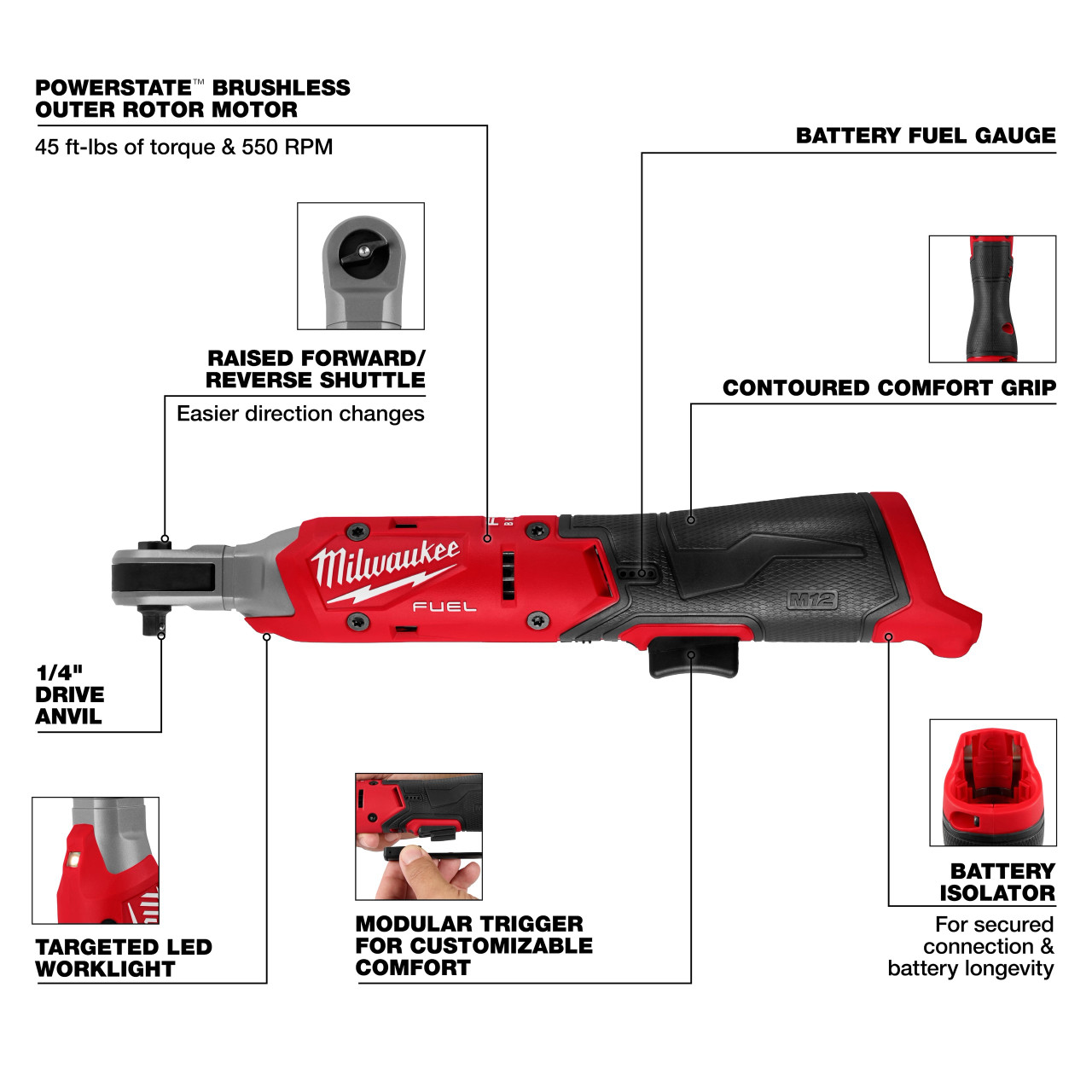

Our M12 FUEL™ 1/4" Ratchet redefines productivity, capability, & comfort for users looking for the ultimate cordless ratchet to tackle any job. Our new POWERSTATE™ Brushless outer rotor motor delivers the FASTEST CORDLESS RATCHET with 550 RPM & 45 ft-lbs of torque, giving you the ability to remove and install fasteners at a higher rate of speed. This solution also delivers the MOST COMPACT HEAD & BODY SIZE to allow users full body access into tight spaces, maintaining a 3/4" head profile & at only 1.5 lbs bare tool. The M12 FUEL™ Ratchet provides users UNMATCHED COMFORT with an ergonomic contoured grip & reduces fatigue during a full day of wrenching. It also features a new-to-the-world modular trigger, so users will be able to switch between various button or paddle trigger configurations for customizable comfort. Equipped with a targeted LED work light, battery isolation system, and optimized forward-reverse shuttle, this ratchet tackles core frustrations and delivers uncompromising performance.
Features

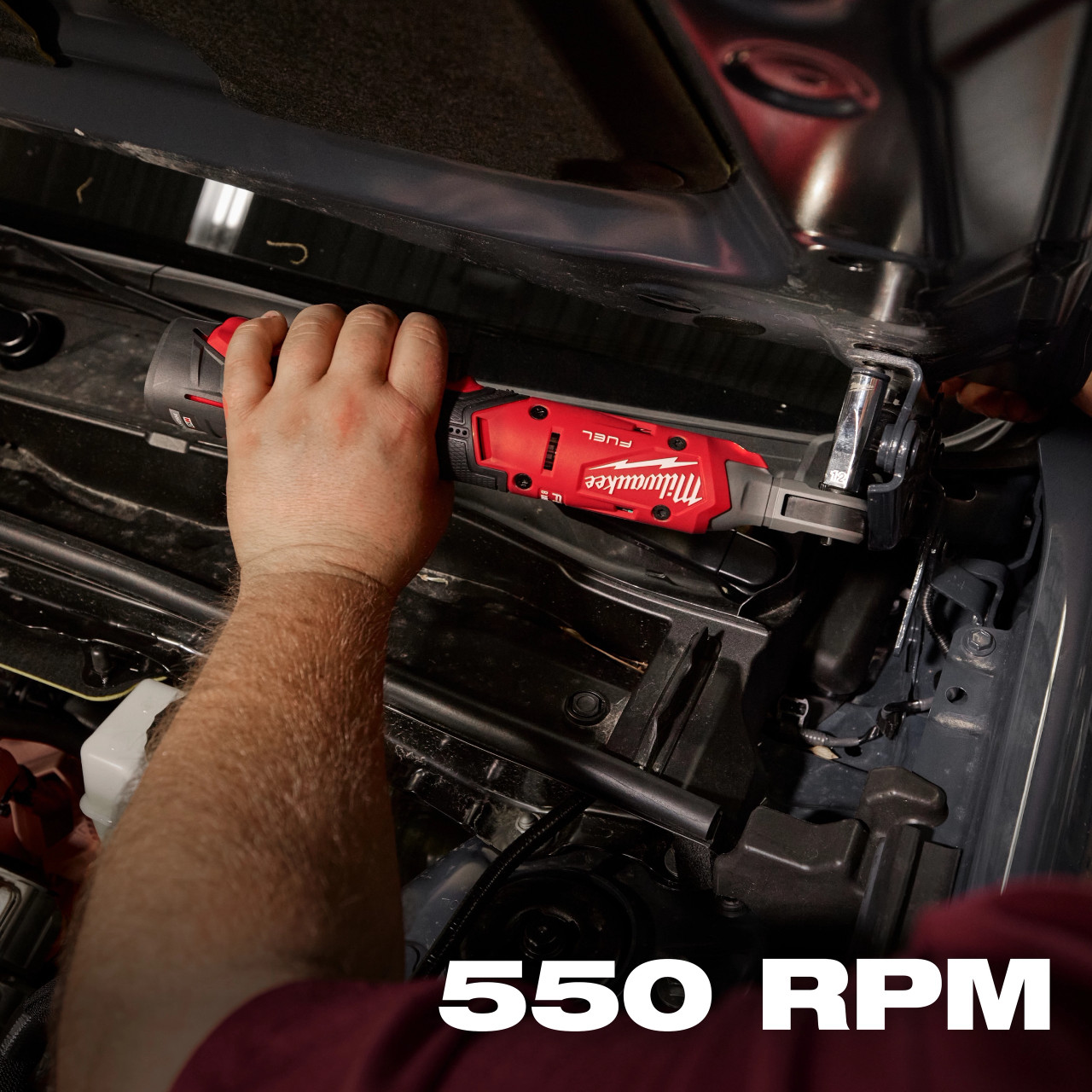

- 550 RPM for fastest application speeds

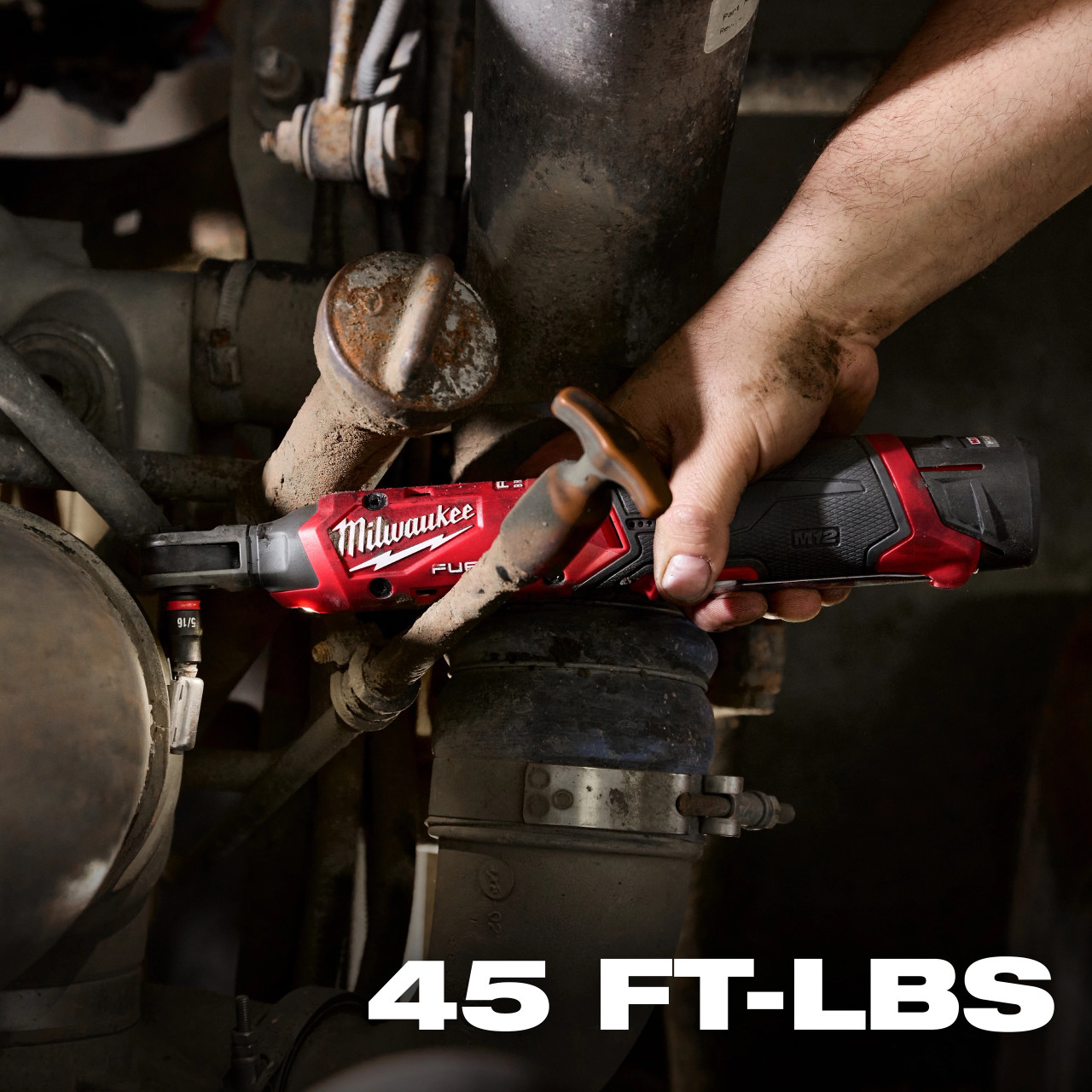

- Up to 45 ft-lbs of max torque
- Most Compact head & body size for increased access to tight spaces
- Contoured Grip for Unmatched comfort

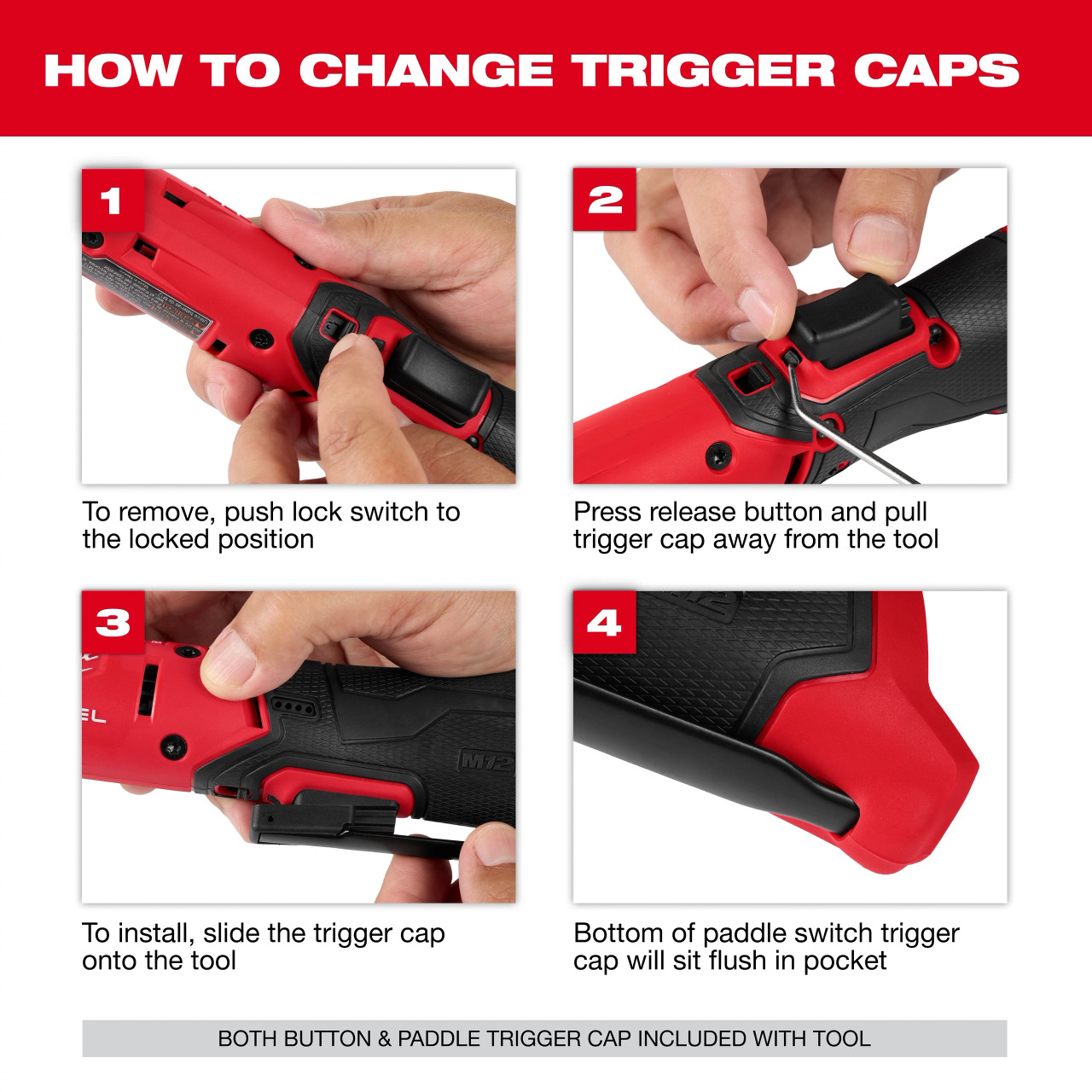

- Modular trigger for personalized grip point - button & paddle cap included
- Raised F/R shuttle for easier direction changes
- Integrated Grease Port for Self Lubrication
- Metal reinforced housing for increased durability
- POWERSTATE™ Brushless Outer Rotor Motor for greatest performance
- REDLINK PLUS™ intelligence prevents damage to the tool and battery due to overloading or overheating
- Bi-directional firmware for consistent breakaway torque
- Targeted LED light for greater illumination
- Part of the M12™ System featuring 150+ tools
Specifications
| Brand | Milwaukee |
|---|---|
| Model | 3052-20 |
| Anvil Size | 1/4 in |
| Anvil Type | Ball Detent |
| Height | 2.95 in |
| Length | 17.8 in |
| Width | 7.3 in |
| Badge Branding | FUEL™ |
| Battery Amp Hour | 2.5 Ah |
| Battery System | M12™ |
| Brushless Motor | Yes |
| Drive Size | 1/4" |
| FUEL™ | Yes |
| Head Profile | 0.75 in |
| Kit Type | Non-Kit |
| Maximum Torque | 45 ft-lbs |
| Motor Type | POWERSTATE™ Brushless |
| Weight | 1.65 lb |
| Number of Speed Settings | Variable |
| ONE-KEY™ Enabled | No |
| Tool Branding | FUEL™ |
| RPM Range | 0-550 RPM |
| Warranty | 5 Year Tool |
| Weight w/Batteries | 1.9 lb |
| Weight Excluding Battery | 1.5 lb |

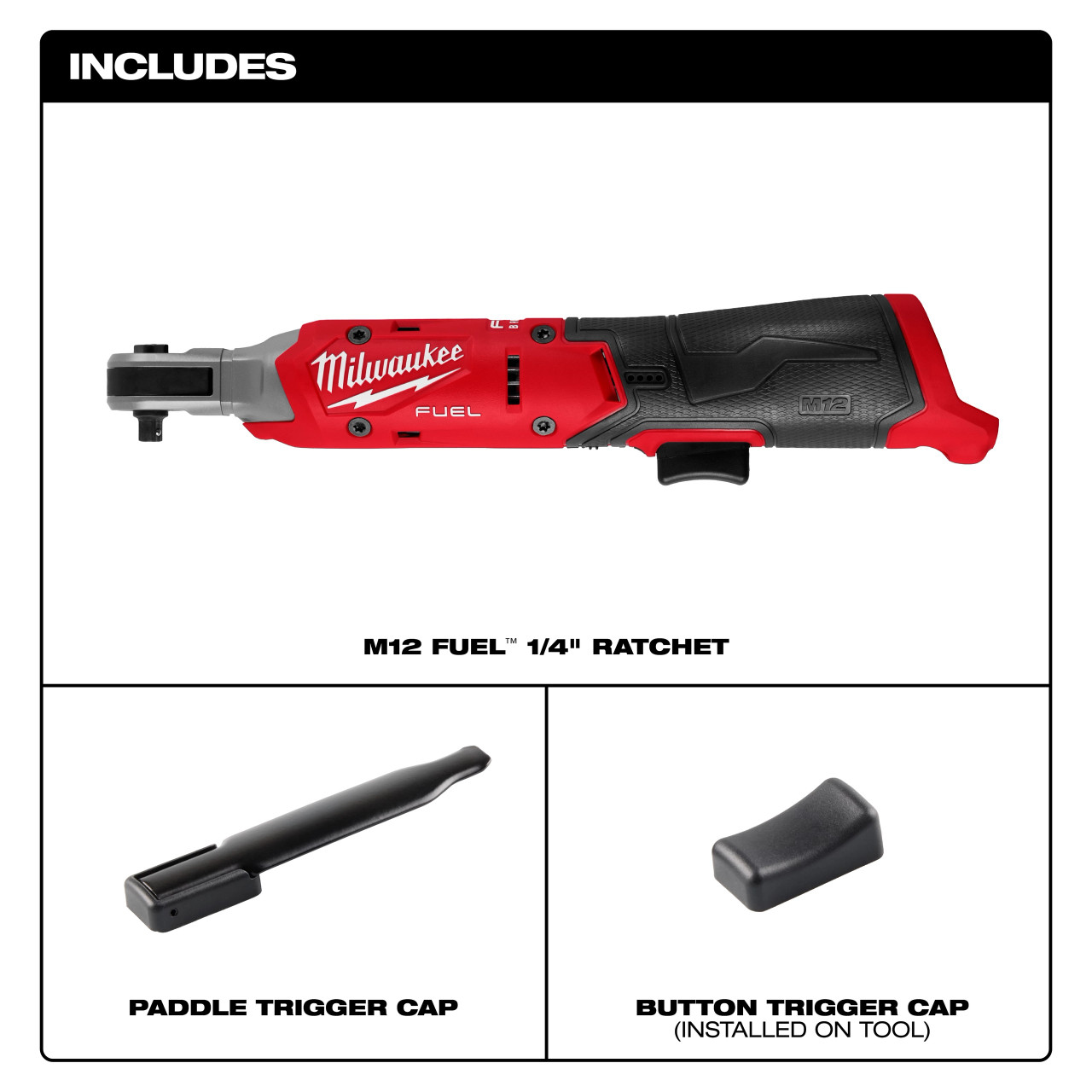

Includes
- (1) M12 FUEL™ 1/4" Ratchet – tool only (battery and charger sold separately)
