Product Description
Milwaukee M12 FUEL™ 3/8" Ratchet (3053-20)

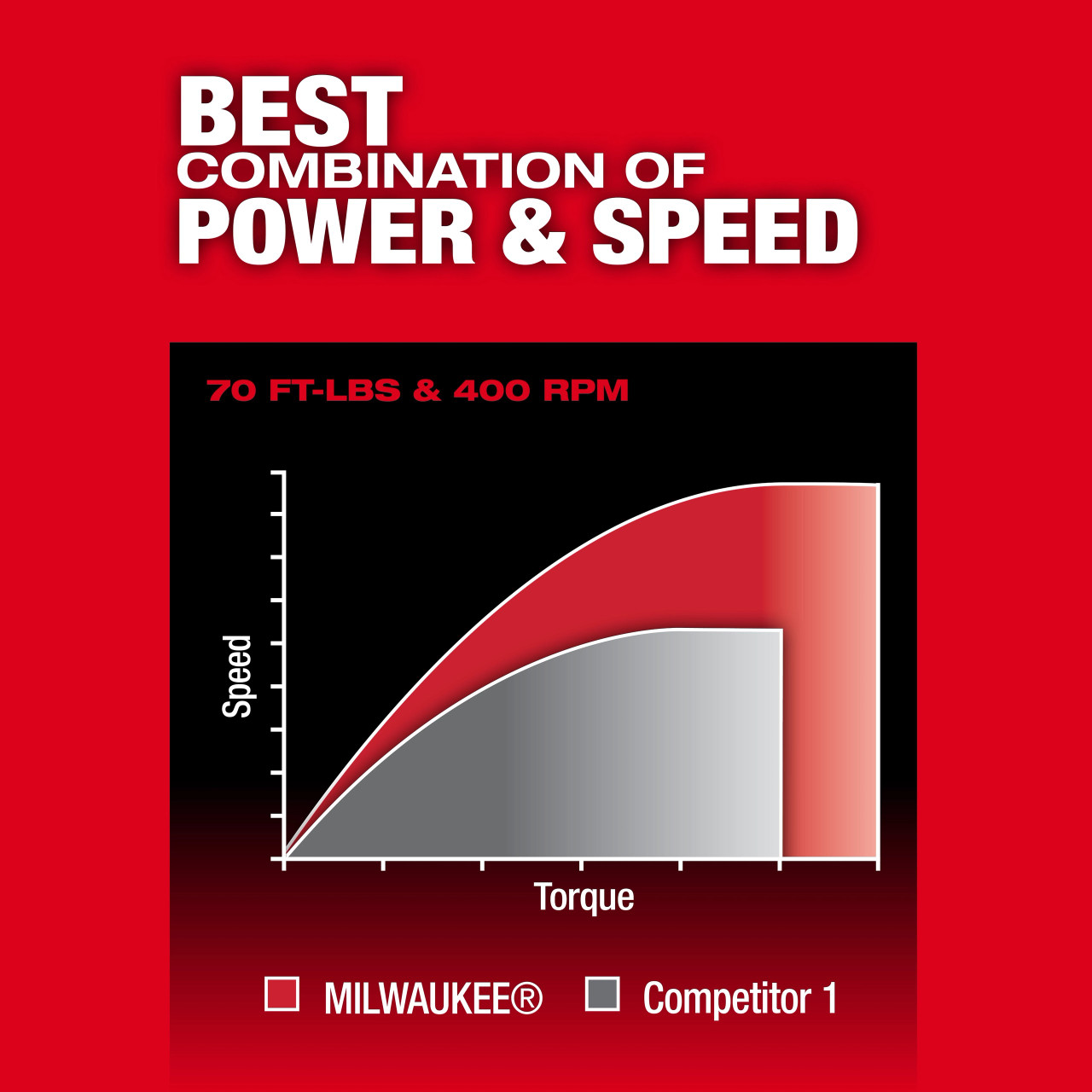

Our M12 FUEL™ 3/8" Ratchet redefines productivity, capability, & comfort for users looking for the ultimate cordless ratchet to tackle any job. Our new POWERSTATE™ Brushless outer rotor motor delivers the BEST COMBINATION OF POWER AND SPEED with 70 ft-lbs of torque to breakaway stubborn fasteners, & 400 RPM to remove and install fasteners at higher rates of speed. This solution also delivers the MOST COMPACT HEAD & BODY SIZE to allow users full body access into tight spaces, maintaining a 3/4" head profile & at only 1.5 lbs bare tool, without sacrificing durability. The M12 FUEL™ Ratchet provides users UNMATCHED COMFORT with a dedicated contoured grip & reduces fatigue during a full day of wrenching. It also features a new-to-world modular trigger cap, which will allow users to switch between various button or paddle trigger configurations for customizable comfort. Equipped with a targeted LED work light, battery isolation system, and & optimized forward reverse shuttle – this ratchet tackles core user frustrations and delivers uncompromising performance.

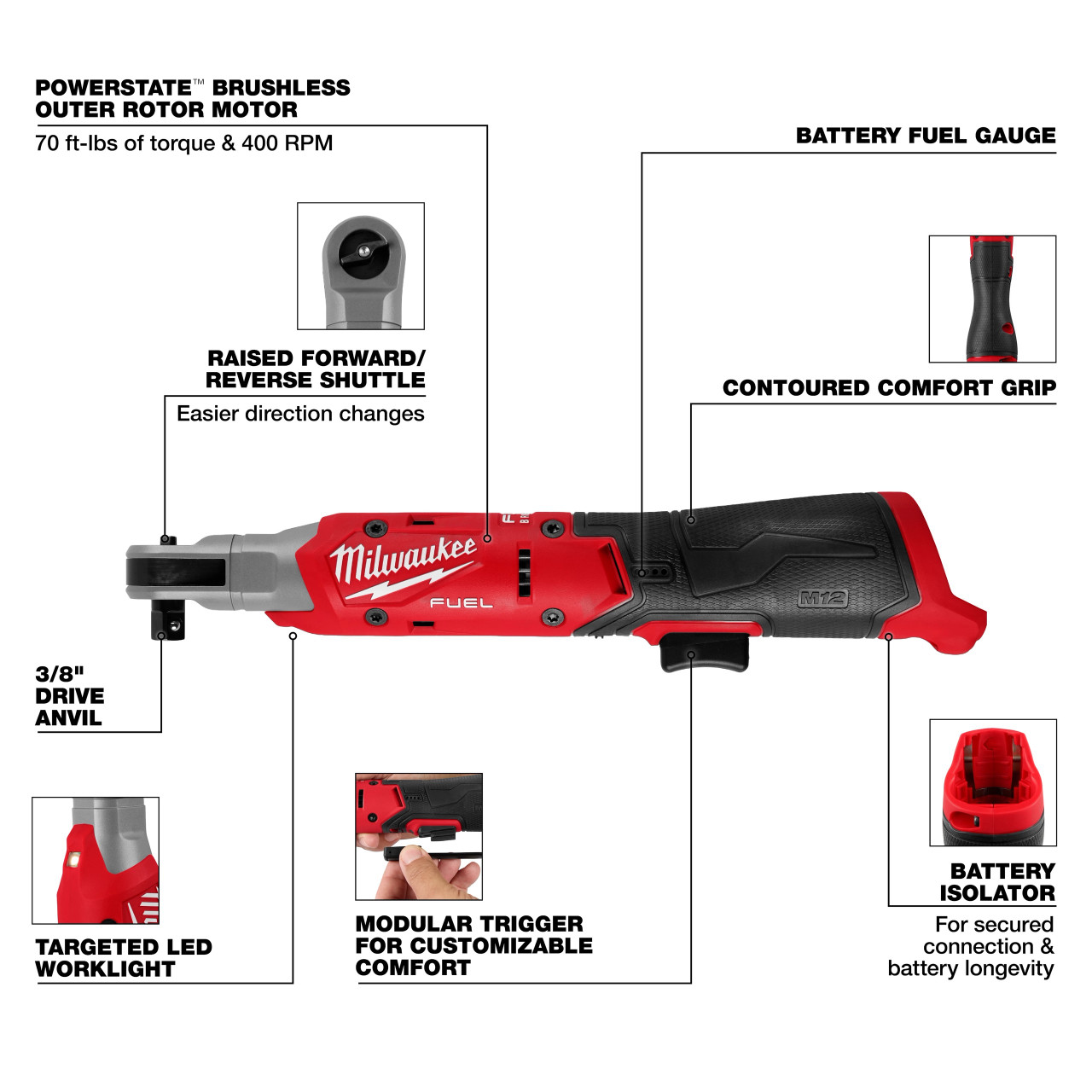

Features
- Up to 70 ft-lbs of max torque

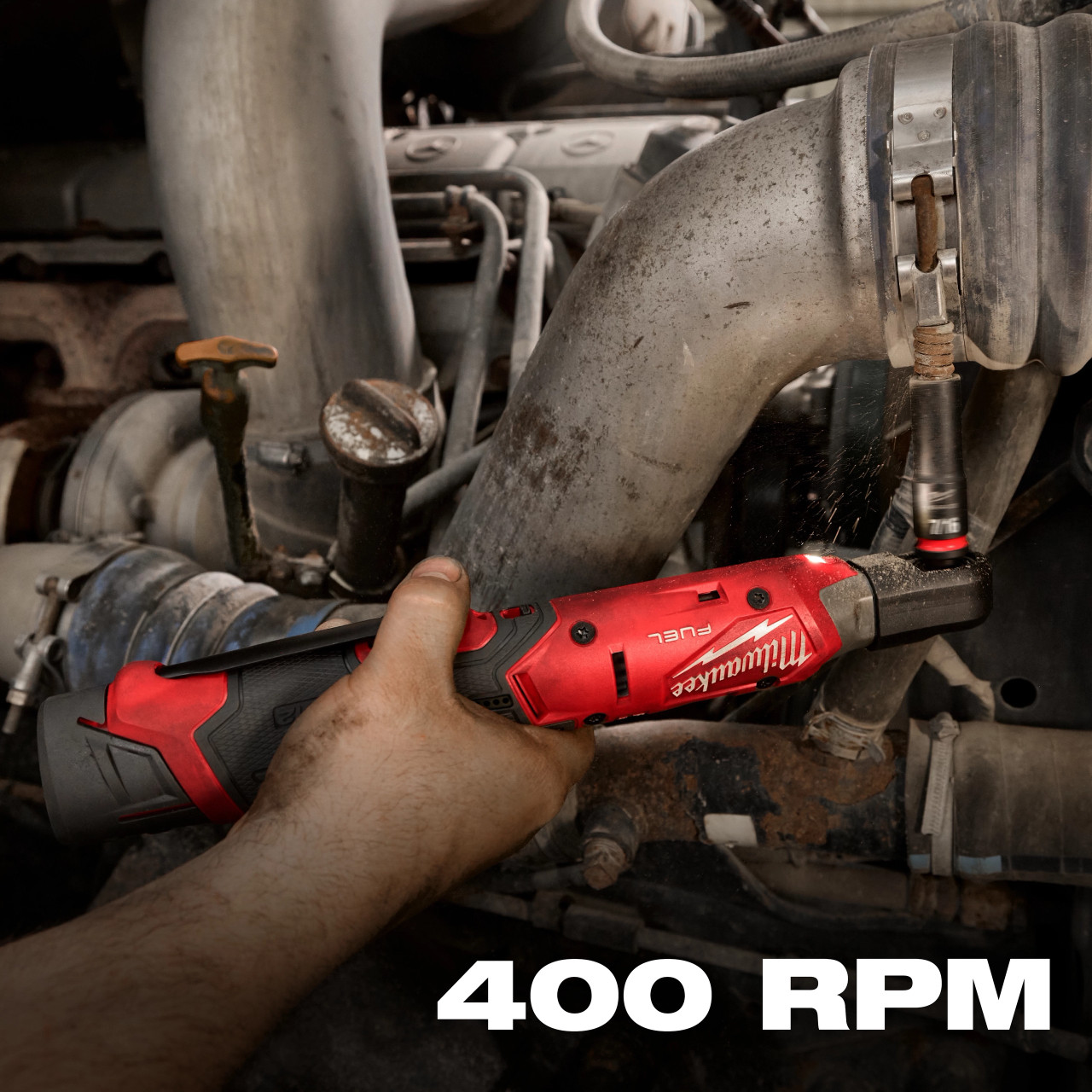

- 400 RPM for faster application speeds
- Most Compact head & body size for increased access to tight spaces
- Contoured Grip for Unmatched comfort
- Modular trigger for personalized grip point - button & paddle cap included
- Raised F/R shuttle for easier direction changes
- Integrated Grease Port for Self Lubrication
- Metal reinforced housing for increased durability
- POWERSTATE™ Brushless Outer Rotor Motor for greatest performance
- REDLINK PLUS™ intelligence prevents damage to the tool & battery due to overloading or overheating
- Bi-Directional Motor Firmware for consistent breakaway torque
- Targeted LED light for greater illumination
- Part of the M12™ System featuring 150+ Tools
Specifications
| Brand | Milwaukee |
|---|---|
| Model | 3053-20 |
| Anvil Size | 3/8 in |
| Anvil Type | Ball Detent |
| Height | 2.5 in |
| Length | 12.5 in |
| Width | 3 in |
| Badge Branding | Not Applicable |
| Battery System | M12™ |
| Brushless Motor | Yes |
| FUEL™ | Yes |
| Head Profile | 0.75 in |
| Kit Type | Non-Kit |
| Maximum Torque | 70 ft-lbs |
| Motor Type | POWERSTATE™ Brushless |
| Weight | 1.79 lb |
| ONE-KEY™ Enabled | No |
| Tool Branding | FUEL™ |
| RPM Range | 0-400 RPM |
| Warranty | 5 Year Tool |
| Weight Excluding Battery | 1.5 lb |
Includes
- (1) M12 FUEL™ 3/8" Ratchet – tool only (battery and charger sold separately)
