Product Description
Overview

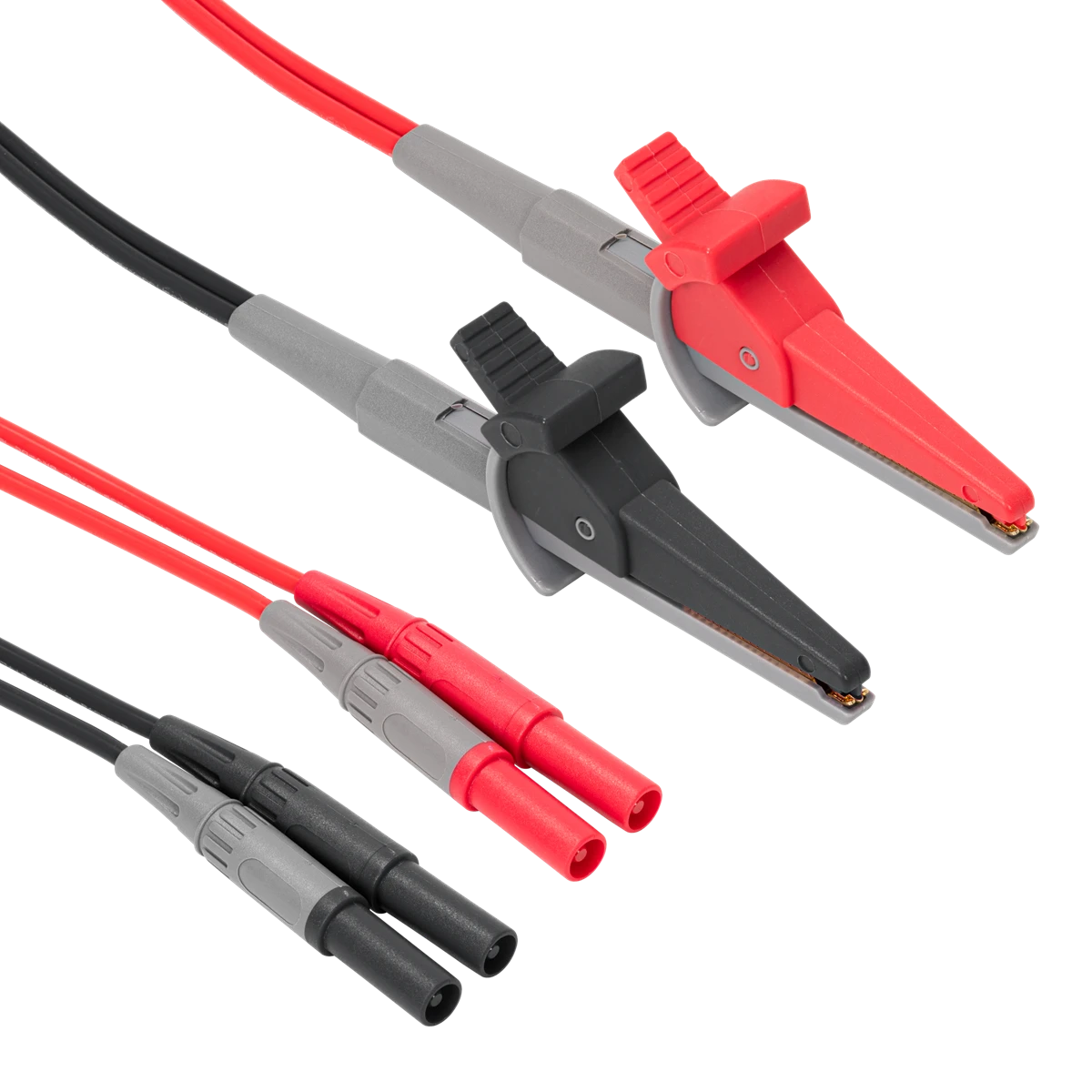

The UEi ATL190 Test Lead Set is engineered specifically for the UEi CLM100 Cable Length Meter to provide accurate cable length measurements in electrical, telecommunications, and industrial applications. Featuring dual-cable construction with straight connections, the ATL190 ensures reliable testing performance while maintaining durability in demanding field environments.
The lead set includes silicone-insulated cables and large alligator clips with jaw openings up to 20mm, making it easy to connect to a wide range of conductors. Designed for measuring both copper and aluminum cables, the ATL190 supports cable length measurements up to 30,000 feet.
Key Features
- Designed specifically for the CLM100 Cable Length Meter
- Dual-cable lead configuration
- Silicone-insulated construction
- Straight connection design
- Large alligator clips included
- 20mm alligator clip jaw opening
- Measures copper and aluminum conductors
- Supports cable lengths up to 30,000 ft
- 4mm input jack connections
- Durable field-ready construction
- CAT III 1000V, 10A safety rating
Use Cases
- Cable length measurement
- Electrical installation diagnostics
- Wire run verification
- Telecommunications testing
- Industrial wiring inspections
- Contractor cable identification
- Cable maintenance and troubleshooting
Compatibility
Current Products
- UEi CLM100 Cable Length Meter
Benefits
- Delivers accurate cable length measurements
- Compatible with copper and aluminum conductors
- Durable silicone insulation for field use
- Large alligator clips simplify connections
- Designed specifically for CLM100 performance
- Supports long-distance cable testing
FAQ
Q: Which meter is the ATL190 designed for?
A: The ATL190 is specifically designed for use with the UEi CLM100 Cable Length Meter.
Q: What types of cable can it measure?
A: The lead set supports measurement of both copper and aluminum cables.
Q: What is the maximum cable length supported?
A: The ATL190 supports cable measurements up to 30,000 feet.
Q: What type of connections does it use?
A: The lead set utilizes standard 4mm input jack connections.
Q: What is the safety rating?
A: The ATL190 is rated CAT III 1000V at 10A.
Technical Specs
- Product Type: Test Lead Set
- Model Number: ATL190
- Cable Type: Dual Cable
- Insulation Material: Silicone
- Connection Style: Straight
- Input Jack Size: 4mm
- Alligator Clip Included: Yes
- Maximum Jaw Opening: 20mm
- Cable Measurement Capability: Copper & Aluminum
- Maximum Cable Length: 30,000 ft
- Safety Rating: CAT III 1000V
- Current Rating: 10A
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Designed for storage in electrical testing kits and service tool bags.
Who This Is For
- Electricians
- HVAC Technicians
- Telecommunications Technicians
- Industrial Maintenance Professionals
- Cable Installation Contractors
- Electrical Service Technicians
End-of-Page Summary
The UEi ATL190 Test Leads are purpose-built for the CLM100 Cable Length Meter, providing accurate measurement of copper and aluminum cables up to 30,000 feet. Featuring silicone-insulated dual leads, 20mm alligator clips, and CAT III 1000V safety ratings, these leads are ideal for professional cable testing and length verification applications.
