Product Description
Overview
The UEi ATL301KIT Modular Test Lead Kit combines multiple diagnostic accessories into a single organized testing system. The kit includes the ATLTX Modular Test Lead Set, ATL1 Fine Point Probes, ATL2 Large Jaw Alligator Clips, ATL3 Remote Grabber Clips, and the AC12 Carrying Pouch.
The modular design allows technicians to quickly switch between probe styles depending on the testing application. Whether accessing tight terminals, creating secure hands-free connections, or troubleshooting control circuits, the ATL301KIT provides the flexibility needed for professional electrical diagnostics.
All components are stored inside the included AC12 carrying pouch, helping keep accessories organized and protected during transport.
Key Features
- Complete modular electrical testing kit
- Includes ATLTX modular test lead set
- Includes ATL1 fine-point probes
- Includes ATL2 large jaw alligator clips
- Includes ATL3 remote grabber clips
- Includes AC12 carrying pouch
- Modular interchangeable design
- Color-coded test accessories
- Hands-free testing options available
- Professional-grade electrical diagnostic solution
- Multiple safety-rated components
Included Components

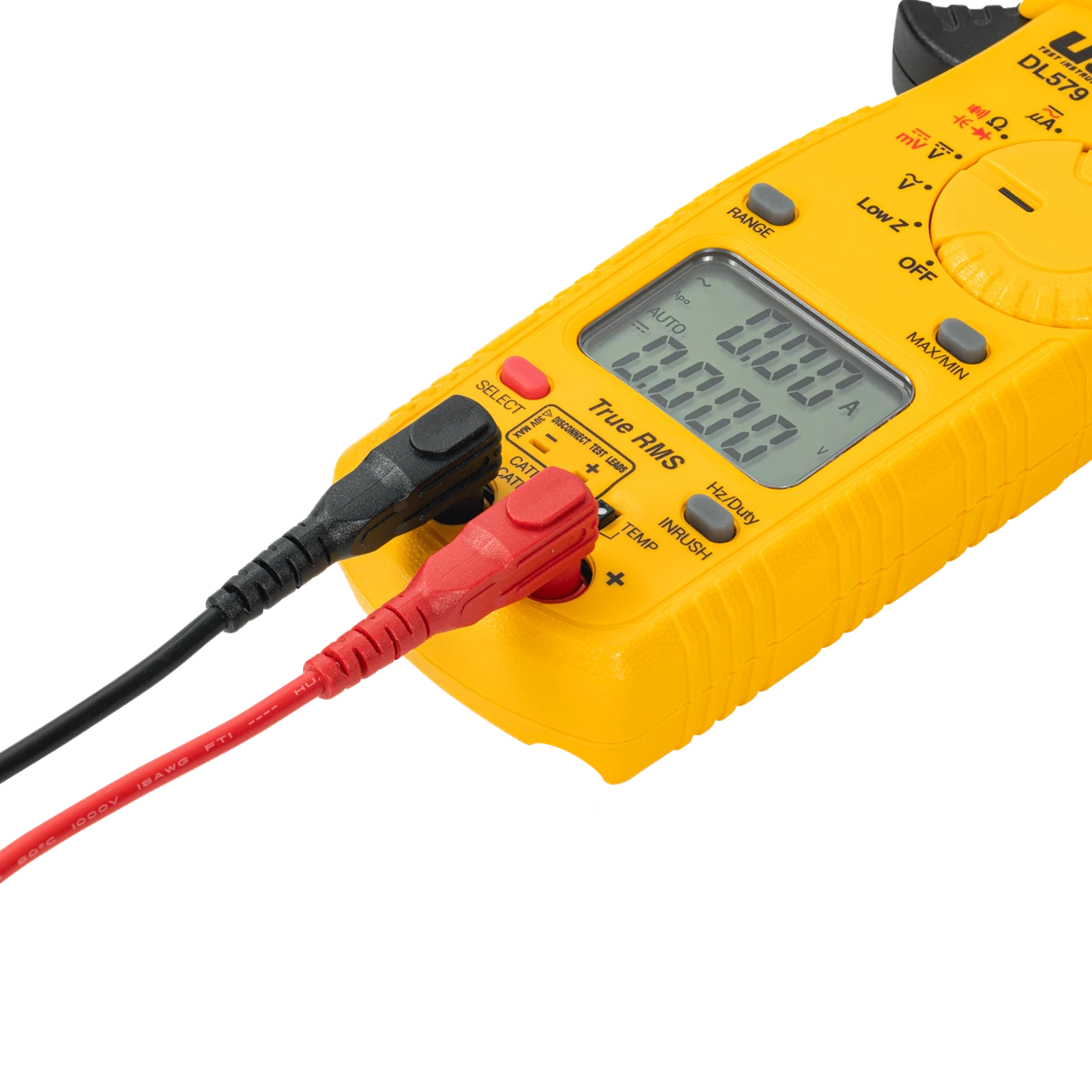

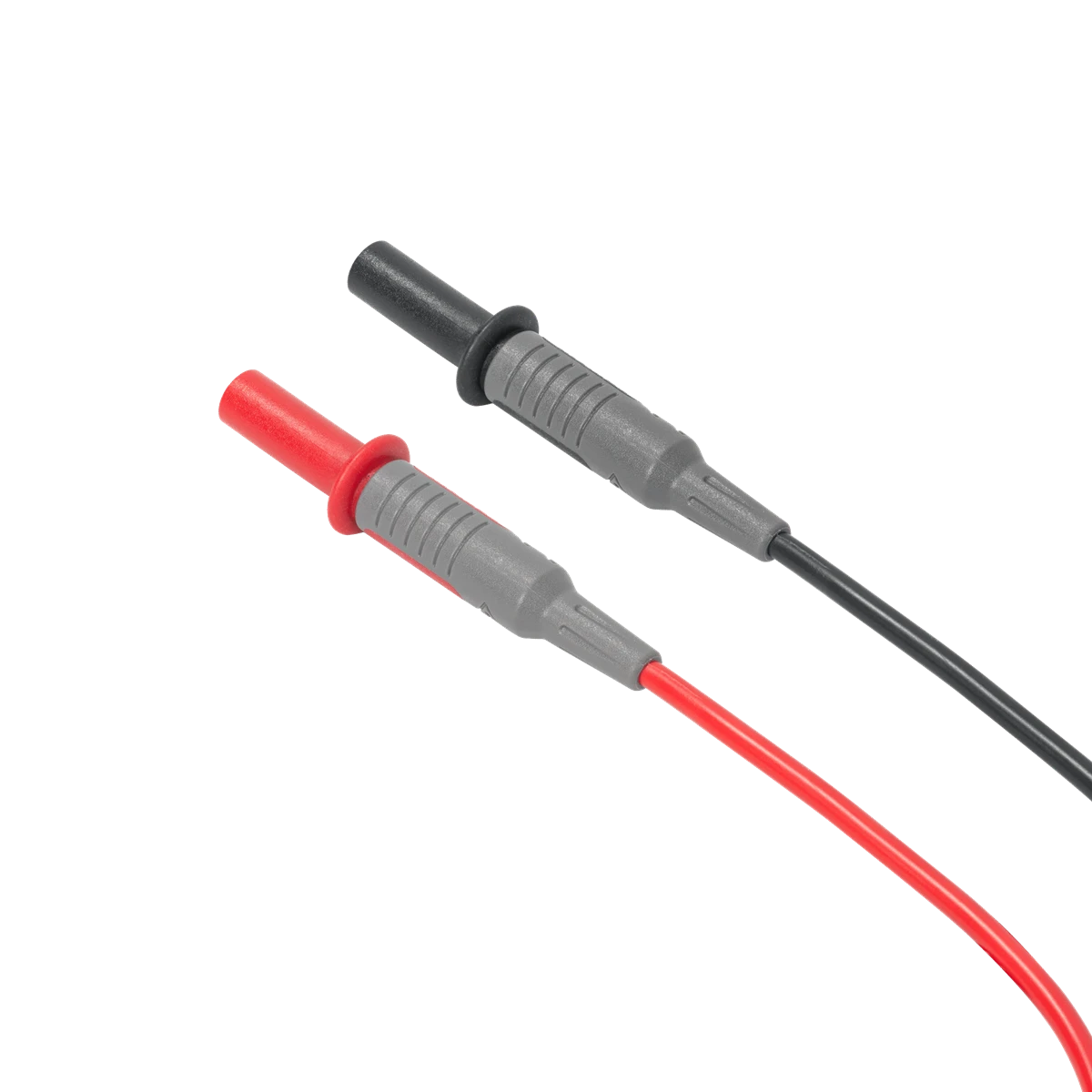

ATLTX Modular Test Lead Set
- Straight to right-angle lead configuration
- Standard insulation
- Overall length: 40 inches
- 4mm input jacks
- Extra-long shrouds
- 21mm shrouded banana connectors
ATL1 Fine Point Probes
- 2mm needle-point probe tips
- Female 4mm jacks
- Color-coded positive and negative probes
- Protective storage caps
ATL2 Alligator Clips
- Large jaw clip design
- Up to 30mm jaw opening
- Female 4mm jacks
- Hands-free testing capability
ATL3 Remote Grabber Clips
- One-handed plunger operation
- 100mm grabber neck
- Attaches to contacts up to 4mm diameter
- Female 4mm jacks

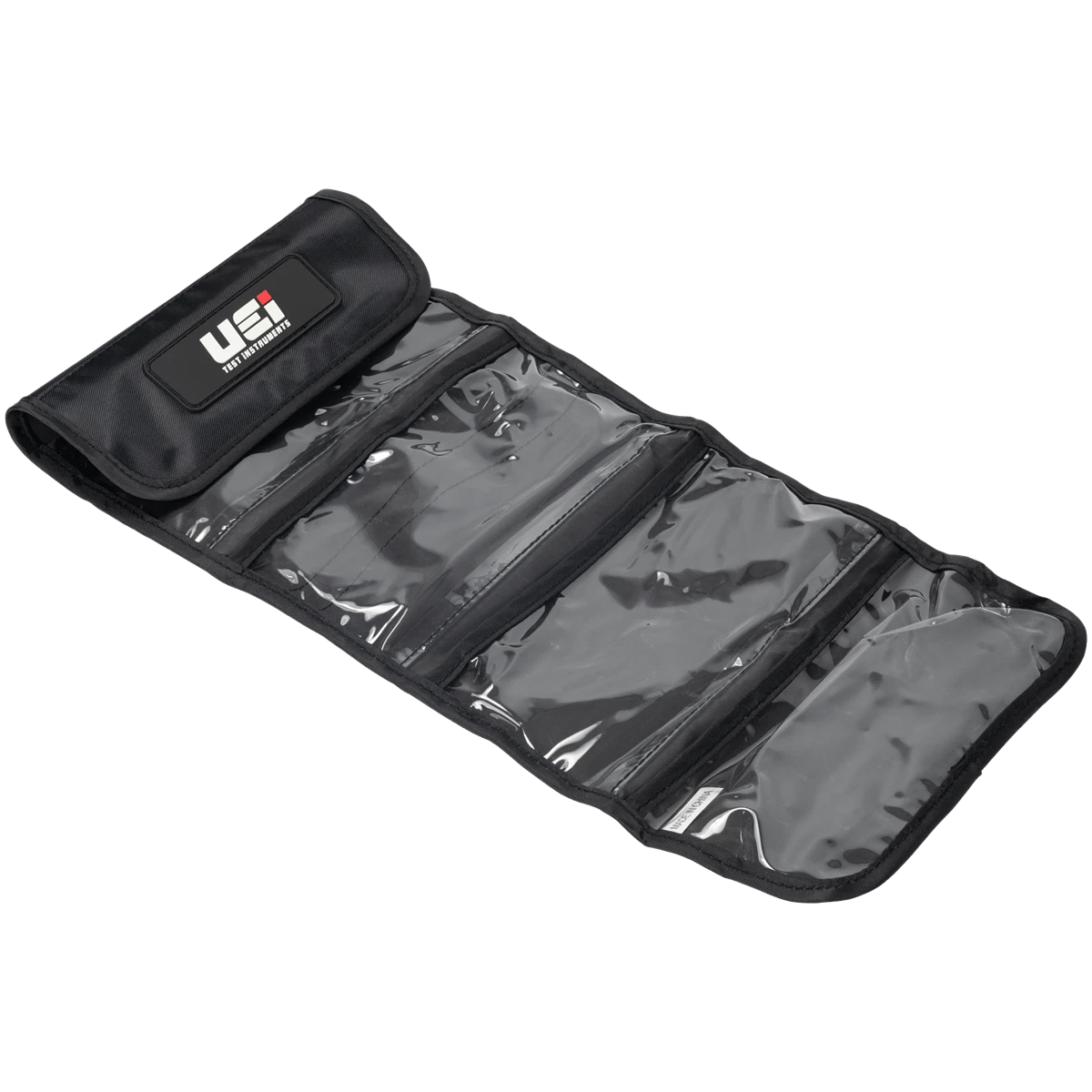

AC12 Carrying Pouch
- Four storage compartments
- Folding design
- Accessory organization and protection
Use Cases
- HVAC electrical diagnostics
- Electrical troubleshooting
- Voltage testing
- Continuity testing
- Control board diagnostics
- Commercial service applications
- Industrial maintenance testing
- Preventive maintenance inspections
Compatibility
Current Products
- UEi DL369
- UEi DL379B
- UEi DL389B
- UEi DL569
- UEi DL579
- UEi DM505
- UEi DM515
- UEi DM525
- UEi IRT803
- UEi IRT807
Retired Products
- UEi DL389
- UEi DL419
- UEi DL429B
- UEi DL469
- UEi DL479
- UEi DL489
- UEi DM300
- UEi DM300A
- UEi DM310
- UEi DM383
- UEi DM383B
- UEi DM384
- UEi DM391
- UEi DM393
- UEi DM400
- UEi DM410
- UEi DM420
- UEi DM520
- UEi DM600
- UEi IRT3
- UEi UTL261
- UEi UTL291
- UEi UTL33T
- UEi UTLDM1
- UEi UTLDM2
Benefits
- Multiple testing methods in one kit
- Reduces the need for multiple separate accessories
- Improves technician efficiency
- Easy transition between testing styles
- Professional organization with carrying pouch
- Supports hands-free measurements
- Suitable for a wide variety of electrical applications
FAQ
Q: What is included in the ATL301KIT?
A: The kit includes the ATLTX Modular Test Lead Set, ATL1 Fine Point Probes, ATL2 Alligator Clips, ATL3 Grabber Clips, and an AC12 Carrying Pouch.
Q: Can the attachments be swapped quickly?
A: Yes. The modular design allows users to change probe configurations based on the testing application.
Q: Does the kit support hands-free testing?
A: Yes. The ATL2 alligator clips and ATL3 grabber clips allow secure hands-free connections.
Q: What is the lead length of the ATLTX?
A: The ATLTX test leads have an overall length of 40 inches.
Q: Is a storage pouch included?
A: Yes. The kit includes the AC12 carrying pouch for convenient organization and transport.
Technical Specs
ATLTX Test Leads
- Length: 40"
- Input Connection: 4mm Jack
- Connection Style: Straight to Right-Angle
- Safety Rating: CAT III 1000V 10A
ATL1 Fine Point Probes
- Tip Size: 2mm
- Safety Rating: CAT IV 600V / CAT III 1000V 10A
ATL2 Alligator Clips
- Jaw Opening: Up to 30mm
- Safety Rating: CAT IV 600V / CAT III 1000V 10A
ATL3 Grabber Clips
- Neck Length: 100mm
- Contact Capacity: Up to 4mm Diameter
- Safety Rating: CAT IV 600V / CAT III 1000V 5A
Carrying Pouch
- Model: AC12
- Storage Compartments: 4
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Includes organized carrying pouch for convenient storage and transport.
Who This Is For
- HVAC Technicians
- Electricians
- Service Technicians
- Industrial Maintenance Professionals
- Controls Technicians
- Electrical Troubleshooting Specialists
End-of-Page Summary
The UEi ATL301KIT Modular Test Lead Kit combines modular test leads, fine-point probes, alligator clips, grabber clips, and a carrying pouch into one complete testing solution. Designed for professional diagnostics and troubleshooting, this versatile kit delivers flexibility, safety, and convenience for electrical testing applications.
