Product Description
Overview

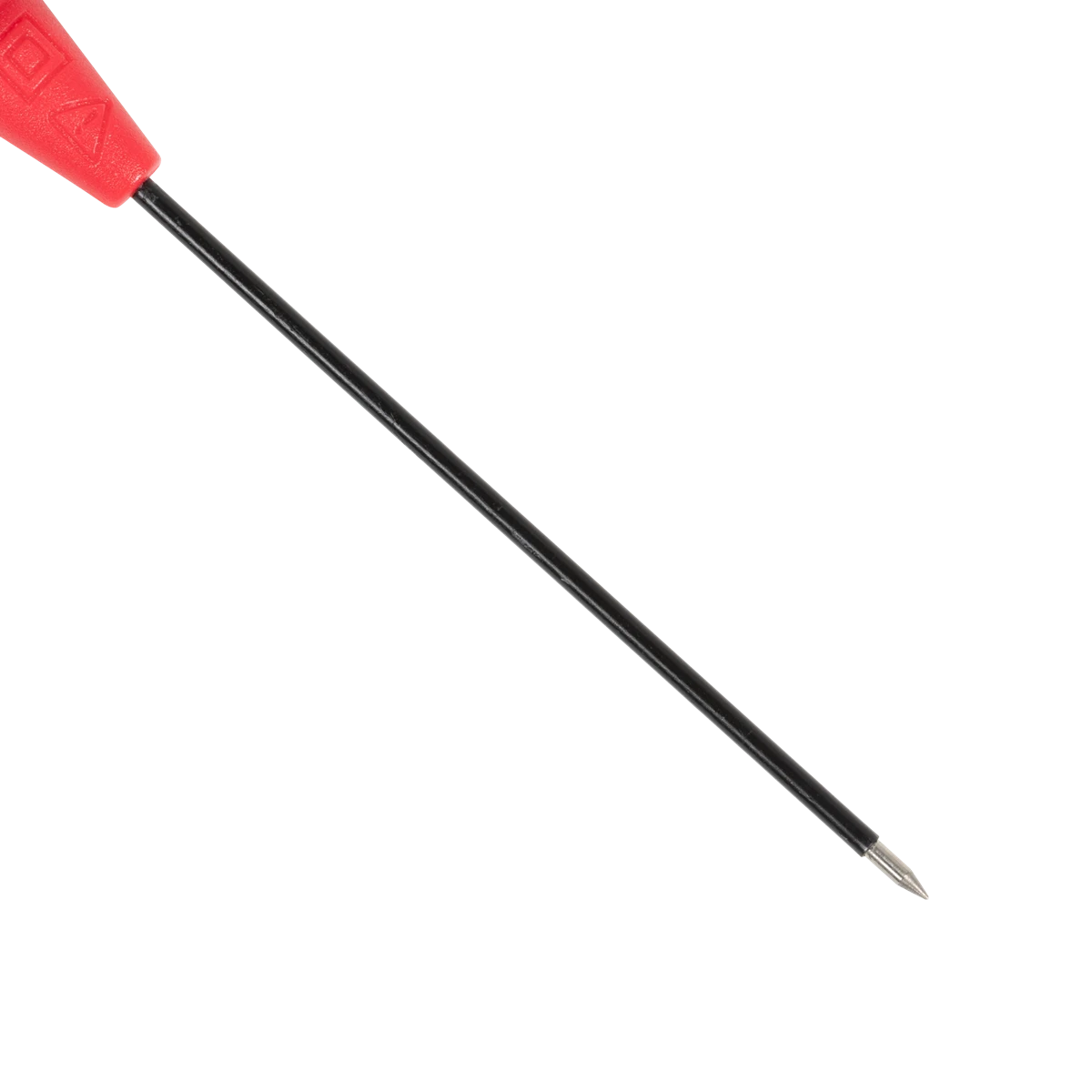

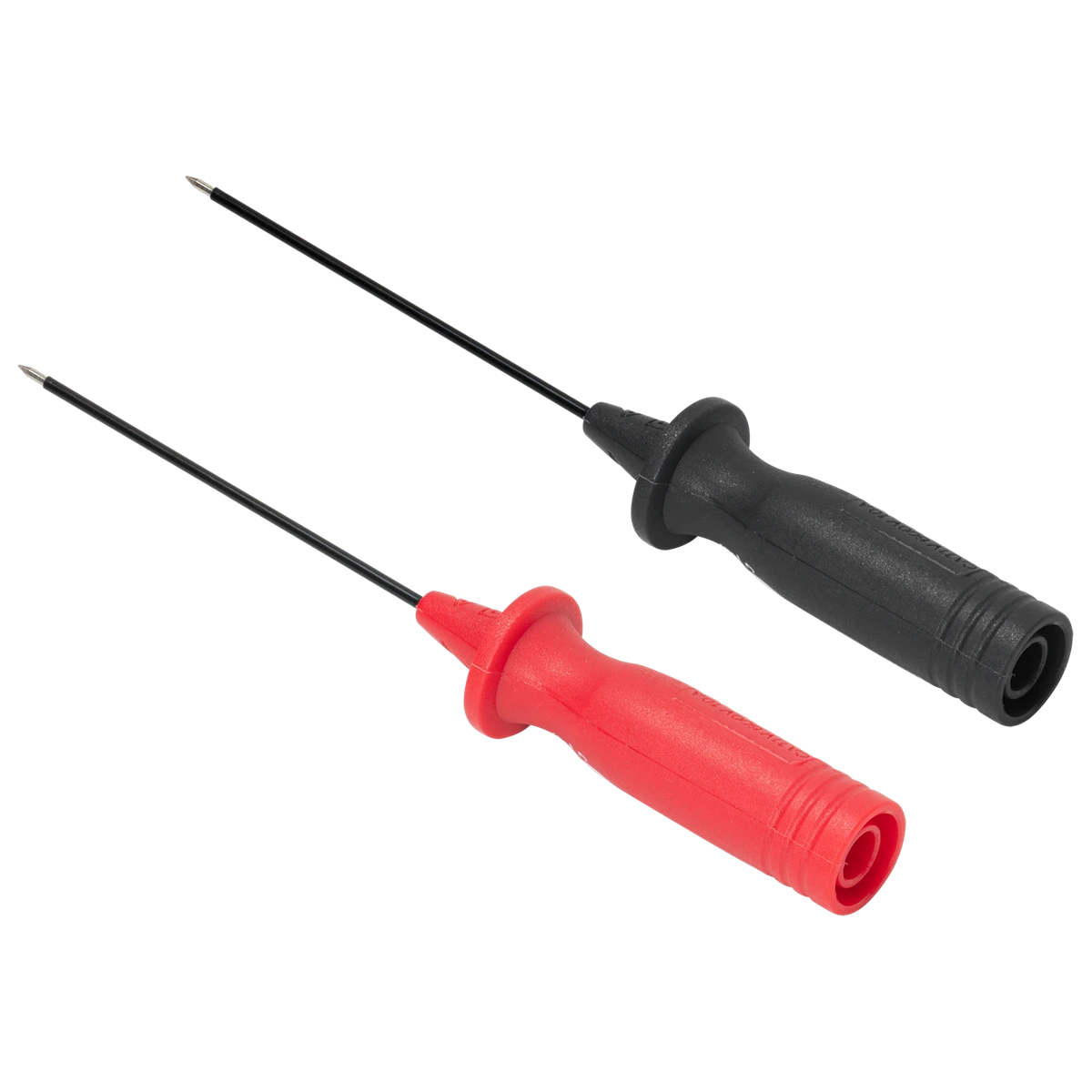

The UEi ATL5 Modular Back Probe Test Tips are professional diagnostic accessories designed for technicians who need to measure voltage, continuity, and signal flow without disconnecting connectors. Specifically designed to work with the UEi ATLTX Modular Test Lead System, the ATL5 allows access to wiring through the rear of connectors, making troubleshooting faster and less intrusive.
The probes are particularly useful when testing Molex connectors and other multi-pin electrical connections. Featuring precision probe tips with a 1.25mm diameter and 48mm length, the ATL5 provides reliable contact in confined spaces while minimizing the risk of connector damage.
Protective caps are included to protect probe integrity and maintain sharp tips during storage and transport.
Key Features
- Modular back probe attachment set
- Designed for use with the ATLTX Modular Test Lead Set
- Female 4mm jack connections
- Ideal for Molex connector testing
- Precision back probe design
- Color-coded positive and negative probes
- Probe tip diameter of 1.25mm
- Probe length of 48mm
- Protective storage caps included
- cETLus listed
- CAT IV 600V 10A safety rating
Use Cases
- HVAC electrical diagnostics
- Automotive electrical testing
- Molex connector inspections
- Wiring harness troubleshooting
- Control board testing
- Voltage measurements
- Circuit integrity verification
- Industrial equipment diagnostics
Compatibility
Required Product
- UEi ATLTX Modular Test Lead Set
Also Available In
- UEi ATLBPK
- Modular Test Lead Set
- Back Probe Lead Set
Benefits
- Test circuits without disconnecting connectors
- Helps reduce damage to wiring and terminals
- Improves troubleshooting efficiency
- Provides precise access to difficult test points
- Supports professional diagnostic procedures
- Integrates seamlessly with the ATLTX lead system
FAQ
Q: What is the ATL5 designed for?
A: The ATL5 is designed for back-probing electrical connectors and measuring voltage or signal flow without disconnecting the circuit.
Q: Does the ATL5 work independently?
A: No. The ATL5 requires the UEi ATLTX Modular Test Lead Set.
Q: What connector types can it be used with?
A: It is ideal for Molex connectors and other similar electrical connector systems.
Q: What size are the probe tips?
A: The probe tips are 1.25mm in diameter and 48mm long.
Q: Are protective caps included?
A: Yes. Protective caps are included to keep the probe tips protected during storage.
Technical Specs
- Product Type: Modular Back Probe Test Tips
- Model Number: ATL5
- Connection Type: Female 4mm Jack
- Probe Style: Back Probe
- Probe Diameter: 1.25mm
- Probe Length: 48mm
- Color-Coded: Yes
- Protective Caps Included: Yes
- ETL Listed: cETLus
- Safety Rating: CAT IV 600V
- Current Rating: 10A
- Compatible Lead System: ATLTX
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Includes protective storage caps.
- Compact design for easy transport and storage.
Who This Is For
- HVAC Technicians
- Automotive Technicians
- Electricians
- Controls Technicians
- Industrial Maintenance Personnel
- Electrical Troubleshooting Specialists
End-of-Page Summary
The UEi ATL5 Modular Back Probe Test Tips provide safe and accurate access to electrical circuits without disconnecting connectors. Designed for use with the ATLTX Modular Test Lead System, these precision back probes feature CAT IV safety ratings, protective caps, and color-coded identification, making them an essential accessory for professional diagnostics and troubleshooting.
