Product Description
Overview
The UEi ATL55 Test Lead Set is designed to provide dependable performance for electrical testing, troubleshooting, and diagnostics. Featuring right-angle shrouded banana plug connections and standard insulation, these replacement leads are ideal for professional technicians who require durability, flexibility, and enhanced safety during electrical measurements.
The lead set includes threaded alligator clips for hands-free testing and protective tip shields that reduce exposed probe length for CAT IV applications. Compatible with most industry-standard meters utilizing 4mm input jacks, the ATL55 is suitable for HVAC, electrical, industrial, and maintenance environments.
Key Features
- Professional replacement test lead set

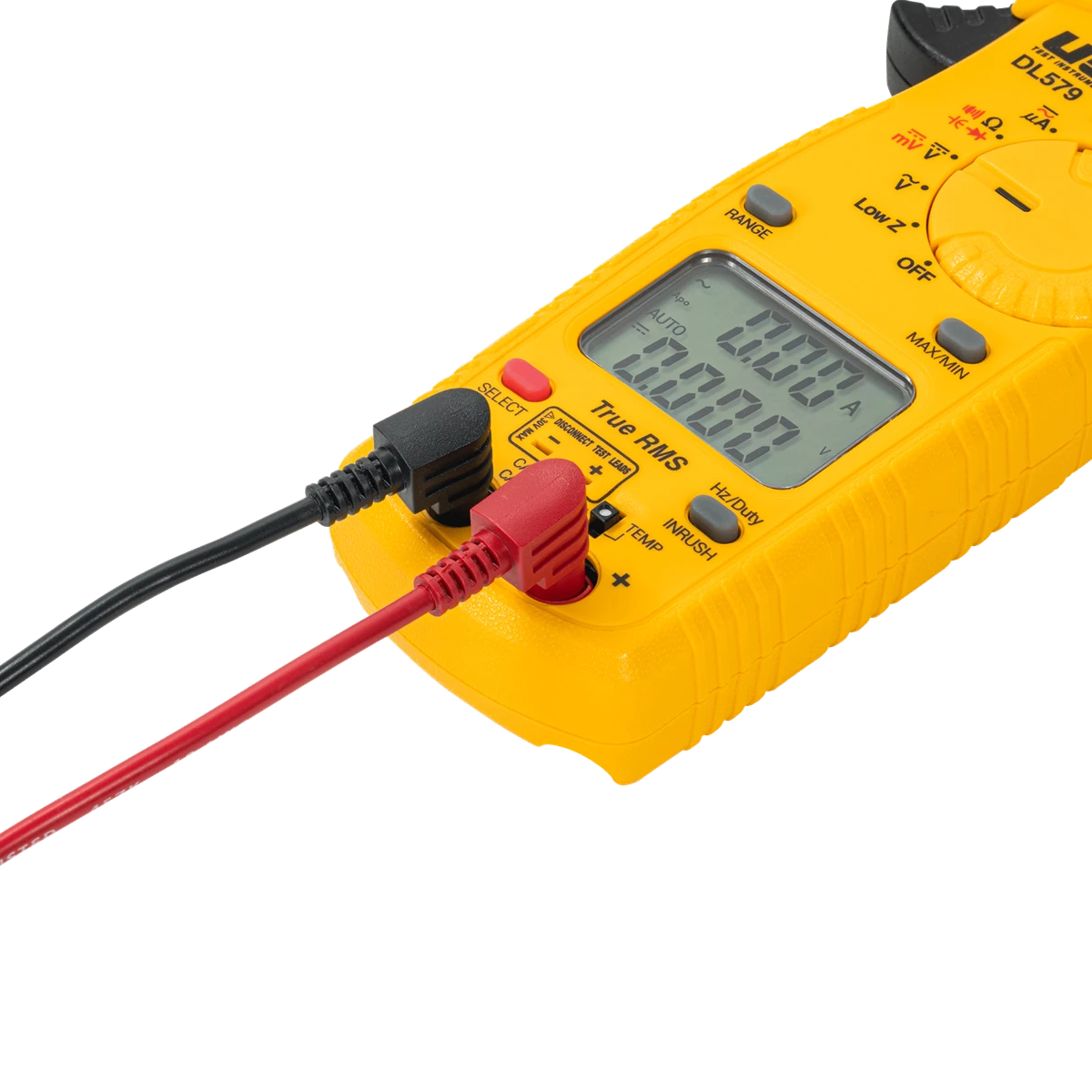

- Right-angle shrouded banana plug connections
- Standard insulation construction
- 42-inch overall lead length

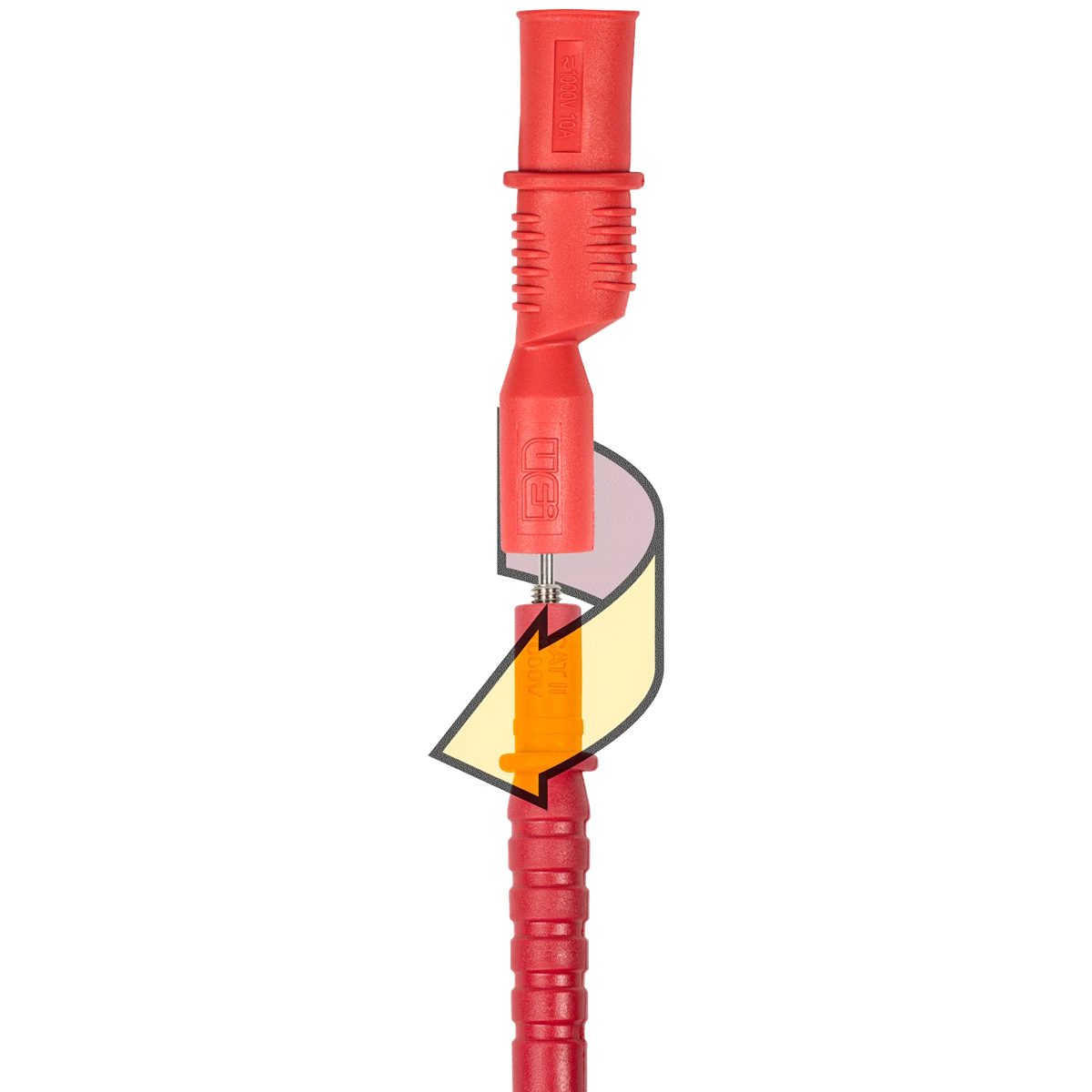

- Includes threaded alligator clips
- Hands-free testing capability

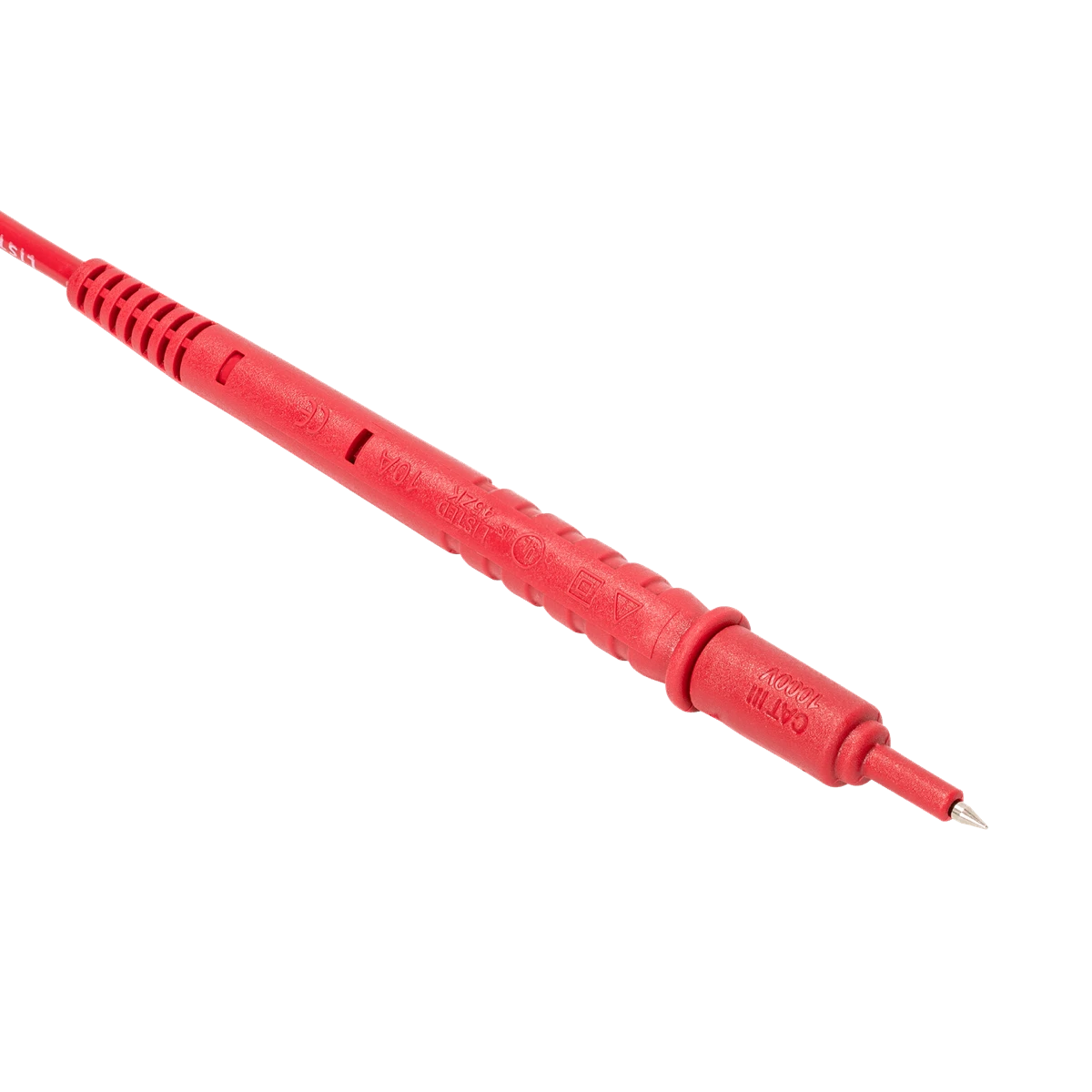

- Includes CAT IV protective tip shields
- Fits most industry-standard 4mm meter inputs
- UL listed construction
- Suitable for HVAC and electrical diagnostics
Use Cases
- Electrical troubleshooting
- HVAC diagnostics
- Voltage measurements
- Continuity testing
- Preventive maintenance
- Industrial electrical service
- Residential electrical inspections
- Hands-free testing applications
Compatibility
Current Products
- UEi DL369
- UEi DL379B
- UEi DL389B
- UEi DL569
- UEi DL579
- UEi DM505
- UEi DM515
- UEi DM525
- UEi IRT803
- UEi IRT807
- UEi TCM
Retired Products
- UEi DL269
- UEi DL279
- UEi DL289
- UEi DL379
- UEi DL389
- UEi DL419
- UEi DL429B
- UEi DL469
- UEi DL479
- UEi DL489
- UEi DM300
- UEi DM300A
- UEi DM310
- UEi DM383
- UEi DM383B
- UEi DM384
- UEi DM391
- UEi DM393
- UEi DM400
- UEi DM410
- UEi DM420
- UEi DM520
- UEi DM600
- UEi IRT3
- UEi UTL261
- UEi UTL291
- UEi UTL33T
- UEi UTLDM1
- UEi UTLDM2
Benefits
- Supports accurate electrical measurements
- Provides enhanced CAT IV safety protection
- Enables hands-free testing with included clips
- Compatible with a broad range of UEi instruments
- Durable construction for daily field use
- Improves technician efficiency and testing convenience
FAQ

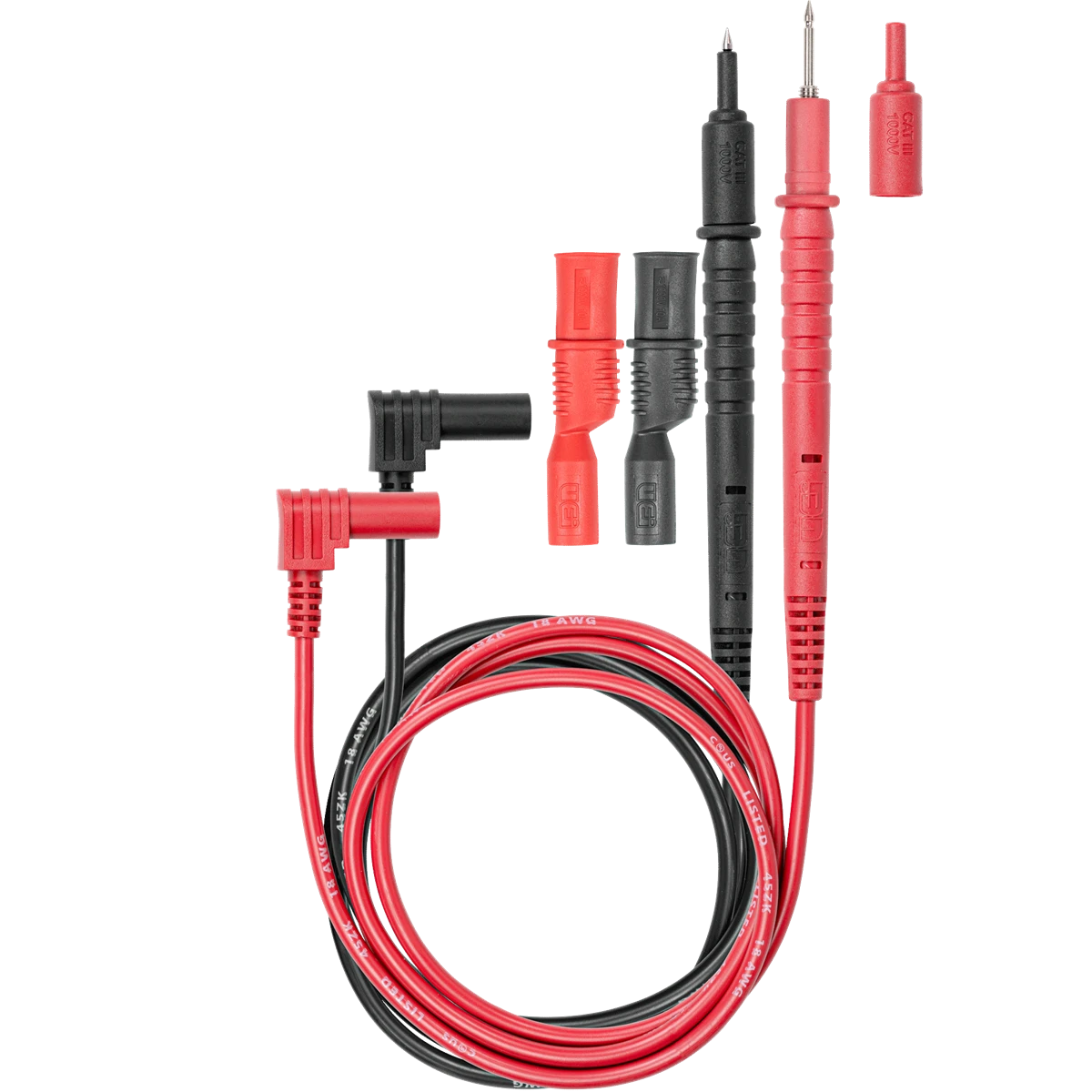

Q: What is included with the ATL55 test lead set?
A: The set includes replacement test leads, threaded alligator clips, and protective CAT IV tip shields.
Q: What is the overall lead length?
A: The ATL55 test leads have an overall length of 42 inches.
Q: What input connection does the lead set use?
A: The ATL55 is designed for meters with standard 4mm input jacks.
Q: Are alligator clips included?
A: Yes, threaded alligator clips are included for hands-free testing applications.
Q: What are the safety ratings?
A: With protective shields installed, the leads are rated CAT IV 600V 10A and CAT III 1000V 10A. Without shields, they are rated CAT II 1000V 10A.
Technical Specs
General
- Product Type: Replacement Test Lead Set
- Model Number: ATL55
- Lead Length: 42 Inches
- Insulation Type: Standard
- Connection Style: Right-Angle
Connections
- Input Jack Size: 4mm
- Banana Plug Style: Right-Angle Shrouded
- Shroud Length: 17mm
- Threaded Alligator Clips Included: Yes
- Protective Tip Shields Included: Yes
Safety Ratings
- UL Listed: Yes
- CAT IV 600V 10A (With Protective Shields)
- CAT III 1000V 10A (With Protective Shields)
- CAT II 1000V 10A (Without Protective Shields)
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Includes alligator clips and protective tip shields.
Who This Is For
- HVAC Technicians
- Electricians
- Service Technicians
- Industrial Maintenance Personnel
- Electrical Contractors
- Facilities Maintenance Teams
End-of-Page Summary
The UEi ATL55 CAT III Test Leads provide reliable electrical testing performance with right-angle connections, threaded alligator clips, and enhanced CAT IV safety protection. Compatible with a wide range of UEi meters and standard 4mm input instruments, these professional-grade leads are ideal for troubleshooting, maintenance, and diagnostic applications.
