Product Description
Overview
The UEi ATLBPK Back Probe Test Lead Kit combines two professional testing accessories into one convenient package. The kit includes the ATLTX Modular Test Lead Set and the ATL5 Back Probe Set, giving technicians the ability to perform safe and accurate electrical measurements while accessing circuits through the rear of connectors.
The ATLTX modular lead system features straight-to-right-angle connections, extra-long safety shrouds, and compatibility with a wide range of UEi meters. The ATL5 back probes allow testing at Molex connectors and other electrical terminals without disconnecting circuits, helping reduce system disruption and diagnostic time.
Protective caps are included with the back probes to protect the precision tips during storage and transport.
Key Features
- Complete modular back probe testing kit
- Includes ATLTX Modular Test Lead Set
- Includes ATL5 Back Probe Set
- Allows testing without disconnecting connectors
- Compatible with Molex and similar connectors
- Color-coded positive and negative probes
- Straight and right-angle lead configuration
- Extra-long safety shrouds
- Precision back probe tips
- Protective probe caps included
- Designed for professional diagnostics
Included Components
ATLTX Modular Test Lead Set
- Straight-to-right-angle lead design
- Standard insulation
- 40-inch overall length
- 4mm input jack compatibility
- Extra-long safety shrouds
- 21mm shrouded banana plug ends

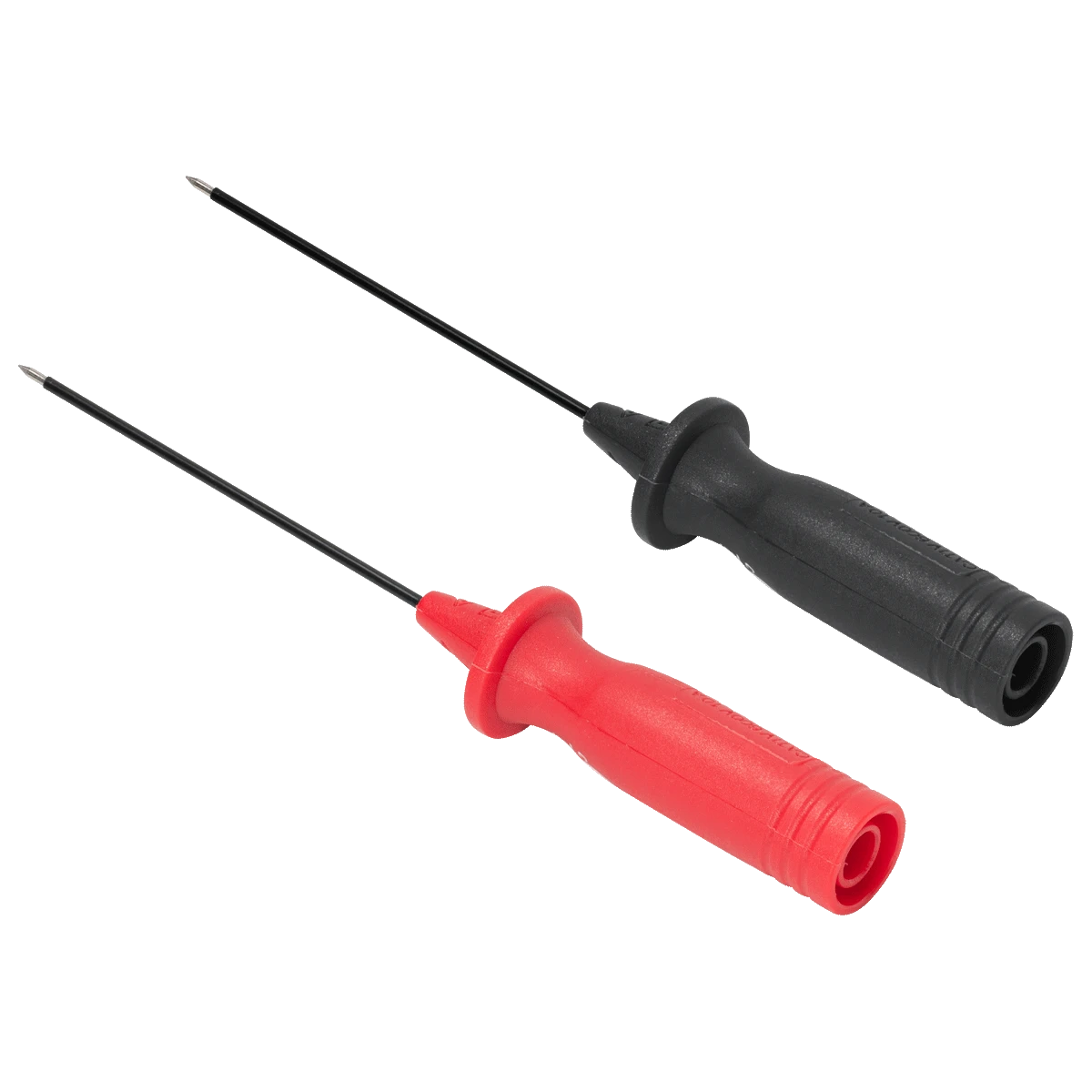

ATL5 Back Probe Set
- Precision back probe tips
- 1.25mm tip diameter
- 48mm probe length
- Female 4mm jack connections
- Color-coded positive and negative probes
- Protective storage caps included
Use Cases
- HVAC electrical diagnostics
- Automotive electrical troubleshooting
- Molex connector testing
- Voltage measurements
- Circuit verification
- Control board diagnostics
- Industrial maintenance
- Connector back-probing applications
Compatibility
Current Products
- UEi DL369
- UEi DL379B
- UEi DL389B
- UEi DL569
- UEi DL579
- UEi DM505
- UEi DM515
- UEi DM525
- UEi IRT803
- UEi IRT807
Retired Products
- UEi DL389
- UEi DL419
- UEi DL429B
- UEi DL469
- UEi DL479
- UEi DL489
- UEi DM300
- UEi DM300A
- UEi DM310
- UEi DM383
- UEi DM383B
- UEi DM384
- UEi DM391
- UEi DM393
- UEi DM400
- UEi DM410
- UEi DM420
- UEi DM520
- UEi DM600
- UEi IRT3
- UEi UTL261
- UEi UTL291
- UEi UTL33T
- UEi UTLDM1
- UEi UTLDM2
Also Available As
- ATLTX Modular Test Lead Set
- ATL301KIT Modular Test Lead Kit with Fine Point Probes, Alligator Clips, Grabber Clips, and Carrying Pouch
Benefits
- Test live circuits without disconnecting connectors
- Improves diagnostic efficiency
- Reduces risk of connector damage
- Supports professional troubleshooting procedures
- Modular design offers flexibility
- Compatible with a broad range of UEi instruments
- Convenient all-in-one testing package
FAQ
Q: What is included in the ATLBPK?
A: The kit includes the ATLTX Modular Test Lead Set and the ATL5 Back Probe Set.
Q: What are back probes used for?
A: Back probes allow technicians to access circuits through the back of electrical connectors without disconnecting wiring.
Q: Can the kit be used with Molex connectors?
A: Yes. The ATL5 back probes are ideal for testing Molex and similar connector types.
Q: What is the length of the ATLTX test leads?
A: The ATLTX test leads measure 40 inches overall.
Q: Are protective caps included?
A: Yes. Protective caps are included with the ATL5 back probes to help protect the probe tips during storage.
Technical Specs
ATLTX Test Leads
- Lead Length: 40 Inches
- Connection Style: Straight to Right-Angle
- Input Connection: 4mm Jack
- Shroud Length: 21mm
- Safety Rating: CAT III 1000V 10A
ATL5 Back Probes
- Probe Diameter: 1.25mm
- Probe Length: 48mm
- Connection Type: Female 4mm Jack
- Safety Rating: CAT IV 600V 10A
- Protective Caps Included: Yes
Kit Information
- Product Type: Back Probe Test Lead Kit
- Model Number: ATLBPK
- Application: Electrical Testing & Connector Diagnostics
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Includes modular lead system and back probe accessories.
Who This Is For
- HVAC Technicians
- Electricians
- Automotive Technicians
- Control System Technicians
- Industrial Maintenance Professionals
- Electrical Troubleshooting Specialists
End-of-Page Summary
The UEi ATLBPK Back Probe Test Lead Kit combines the ATLTX Modular Test Lead Set and ATL5 Back Probe Set into one versatile diagnostic solution. Designed for connector testing, circuit verification, and professional troubleshooting, this kit enables safe and accurate measurements without disconnecting electrical connections.
