Product Description
Overview

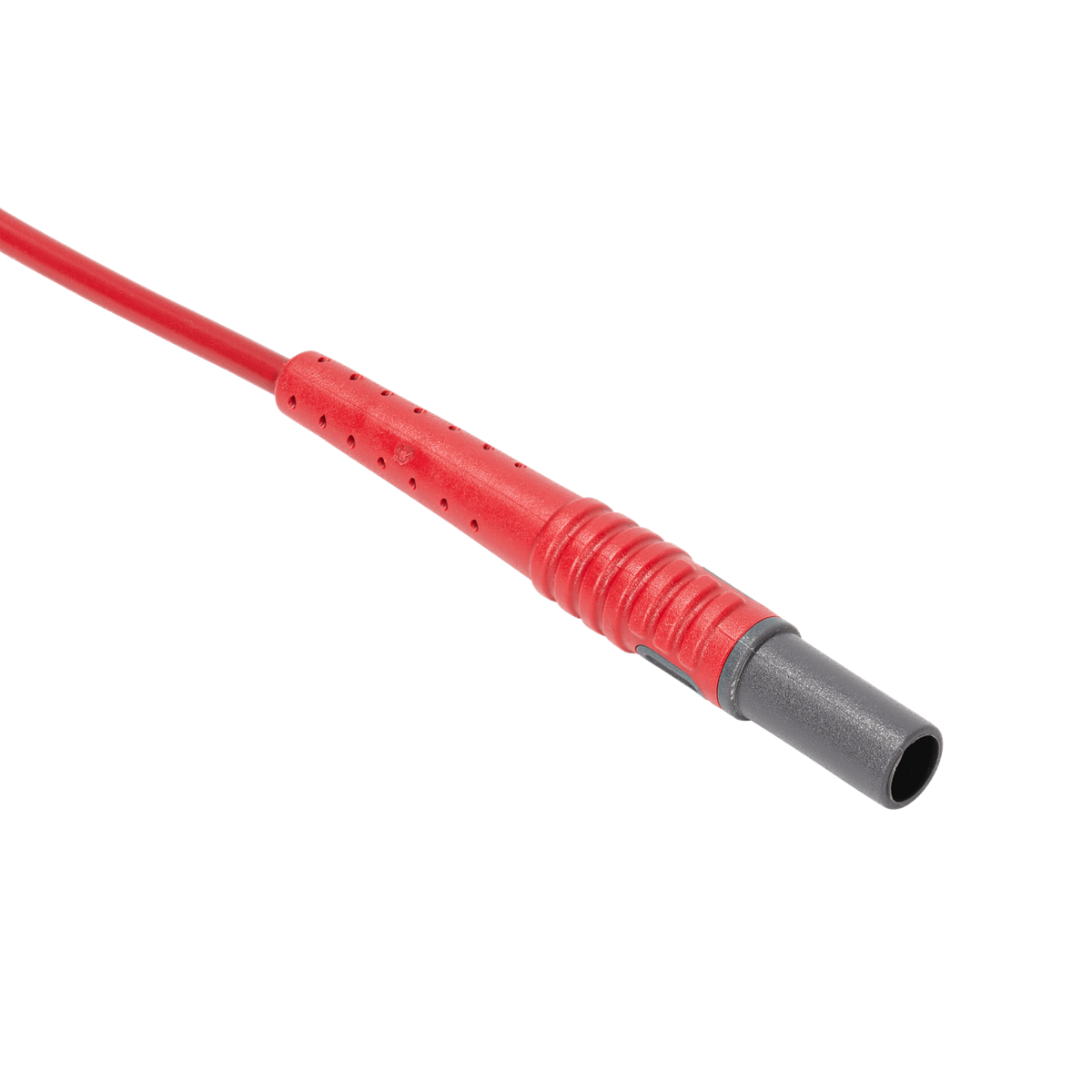

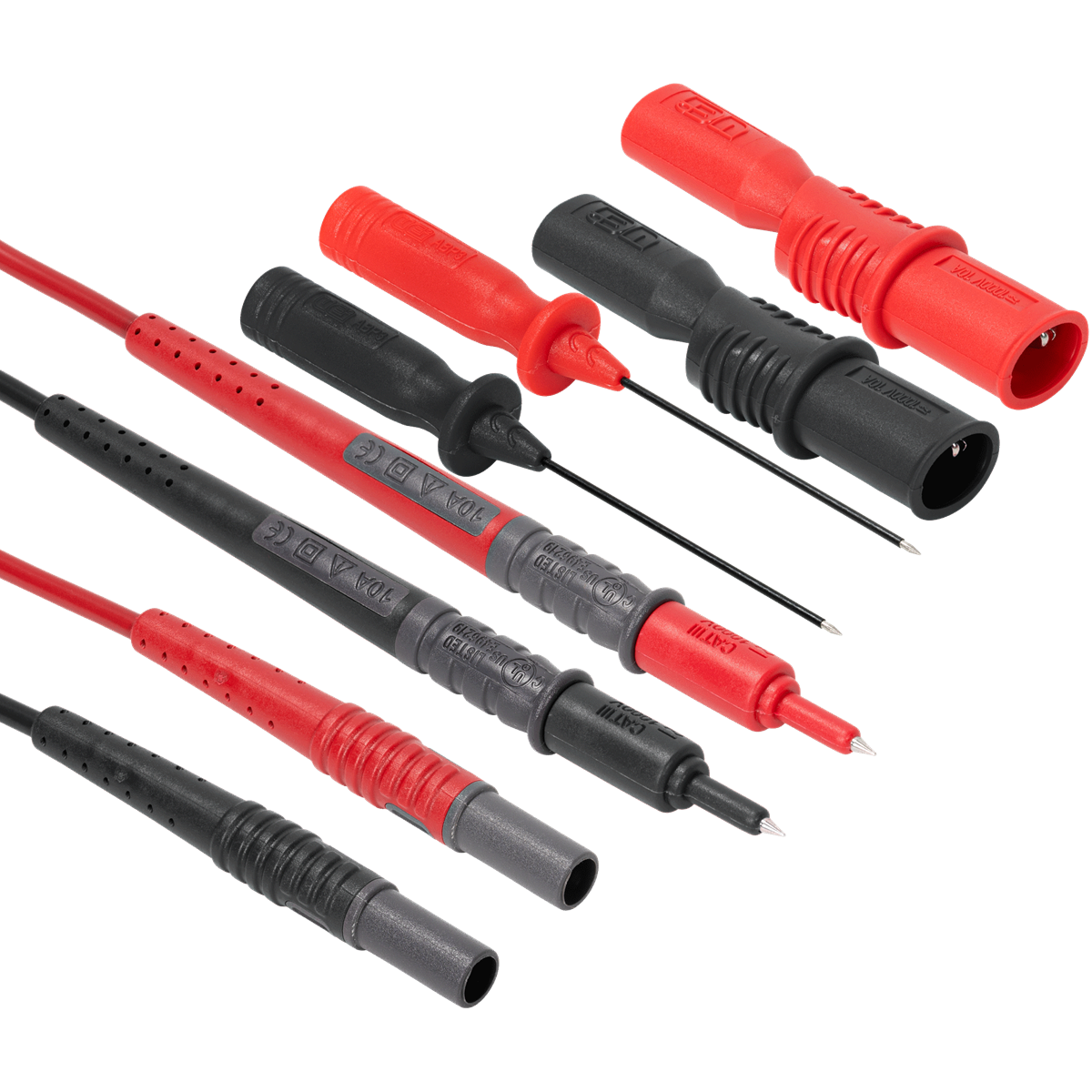

The UEi ATL58 Test Lead Set is a premium replacement lead kit designed for technicians who require maximum flexibility, durability, and testing versatility. Built for use with the DL589 and DL599 clamp meters, the ATL58 includes high-quality silicone-insulated test leads, threaded alligator clips for hands-free testing, threaded ABP3 back probes for connector diagnostics, and protective CAT IV tip shields.
The silicone insulation remains flexible in both hot and cold environments while providing superior resistance to burns, solvents, and cracking compared to standard lead insulation. The included back probes allow technicians to test circuits at the rear of Molex and similar connectors without disconnecting wiring, making the ATL58 ideal for HVAC, electrical, automotive, and industrial troubleshooting.
Key Features
- Premium silicone-insulated test lead set

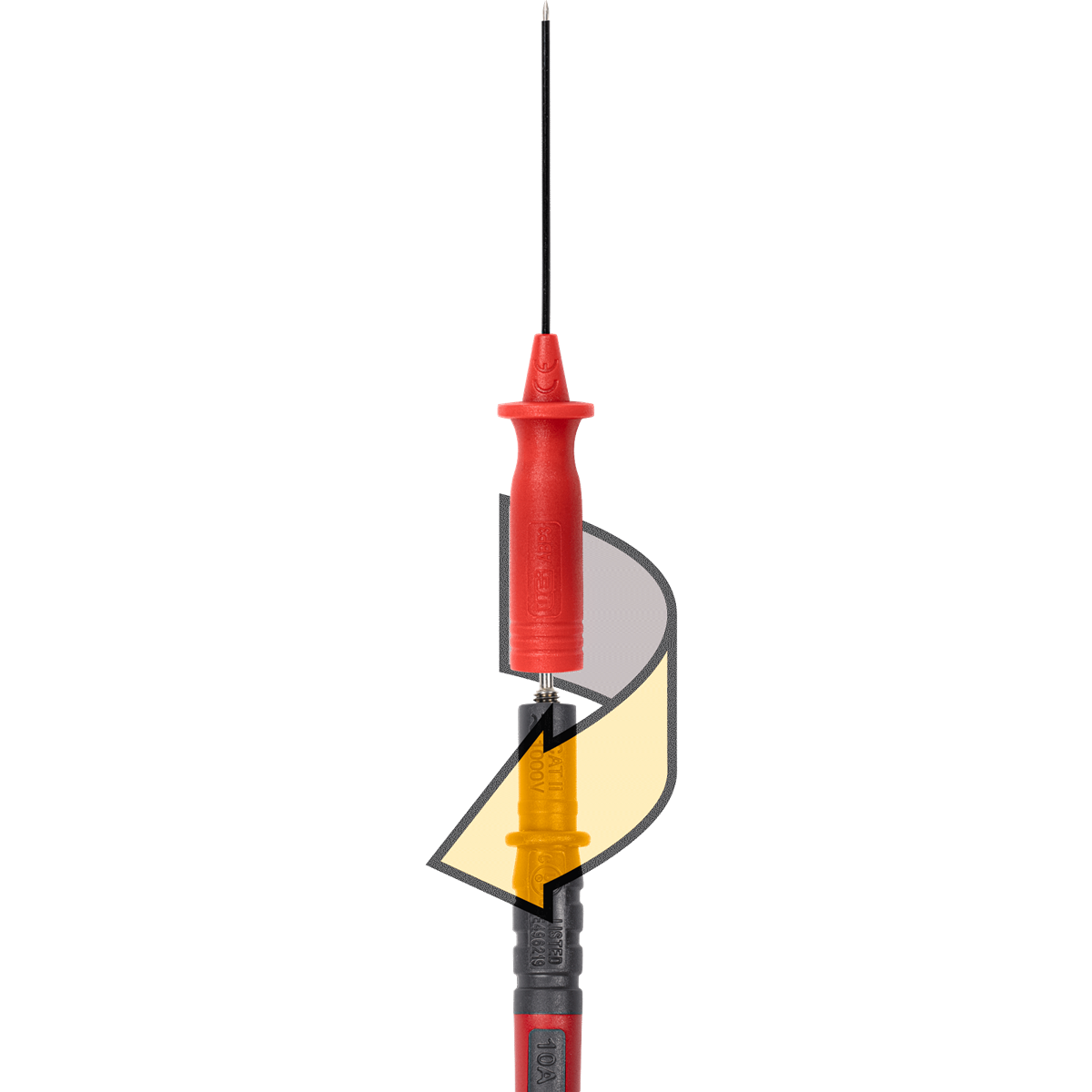

- Includes threaded ABP3 back probes
- Includes threaded alligator clips
- Straight lead connections
- 48-inch overall lead length
- Hands-free testing capability
- Included CAT IV protective tip shields
- Flexible in extreme temperatures
- Enhanced burn and solvent resistance
- Compatible with standard 4mm meter inputs
- Designed specifically for DL589 and DL599 clamp meters
- UL listed for safety
Use Cases
- HVAC electrical troubleshooting
- Motor diagnostics
- Connector testing
- Molex connector back-probing
- Electrical maintenance
- Industrial service applications
- Automotive electrical diagnostics
- Voltage and continuity measurements
Compatibility
Current Products
- UEi DL589 Clamp Meter
- UEi DL599 Clamp Meter
Retired Products
- UEi DMEG1
- UEi DMEG2
Benefits
- Combines test leads, clips, and back probes in one kit
- Enables testing without disconnecting connectors
- Provides exceptional flexibility in harsh environments
- Improves measurement safety and convenience
- Supports hands-free testing procedures
- Enhances troubleshooting efficiency
- Reduces risk of connector and wire damage
FAQ
Q: What is included with the ATL58?
A: The ATL58 includes silicone test leads, threaded alligator clips, threaded ABP3 back probes, and CAT IV protective tip shields.
Q: What meters is the ATL58 designed for?
A: The ATL58 is designed primarily for use with the UEi DL589 and DL599 clamp meters.
Q: What are the back probes used for?
A: The included ABP3 back probes allow technicians to test circuits through the back of connectors without disconnecting wiring.
Q: What advantage does silicone insulation provide?
A: Silicone insulation remains flexible in extreme temperatures and offers improved resistance to heat, burns, solvents, and cracking.
Q: What are the safety ratings?
A: With protective shields installed, the ATL58 is rated CAT IV 600V 10A and CAT III 1000V 10A. Without shields, the leads are rated CAT II 1000V 10A.
Technical Specs
General
- Product Type: Silicone Test Lead Set with Back Probes
- Model Number: ATL58
- Lead Length: 48 Inches
- Insulation Type: Silicone
- Connection Style: Straight
Included Accessories
- Threaded Alligator Clips
- ABP3 Threaded Back Probes
- Protective Tip Shields
Connections
- Input Jack Size: 4mm
- Banana Plug Type: Shrouded
- Shroud Length: 17mm
Safety Ratings
- UL Listed
- CAT IV 600V 10A (With Protective Shields)
- CAT III 1000V 10A (With Protective Shields)
- CAT II 1000V 10A (Without Protective Shields)
Material Benefits
- Flexible in Hot Conditions
- Flexible in Cold Conditions
- Burn Resistant
- Solvent Resistant
- Crack Resistant
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Includes alligator clips, back probes, and CAT IV protective shields.
Who This Is For
- HVAC Technicians
- Electricians
- Industrial Maintenance Technicians
- Automotive Technicians
- Service Contractors
- Electrical Troubleshooting Professionals
End-of-Page Summary
The UEi ATL58 CAT IV Silicone Test Lead Set combines flexible silicone-insulated leads, threaded alligator clips, ABP3 back probes, and advanced safety protection into one professional testing package. Designed for the DL589 and DL599 clamp meters, it provides versatile diagnostic capabilities for HVAC, electrical, industrial, and automotive applications.
