Product Description

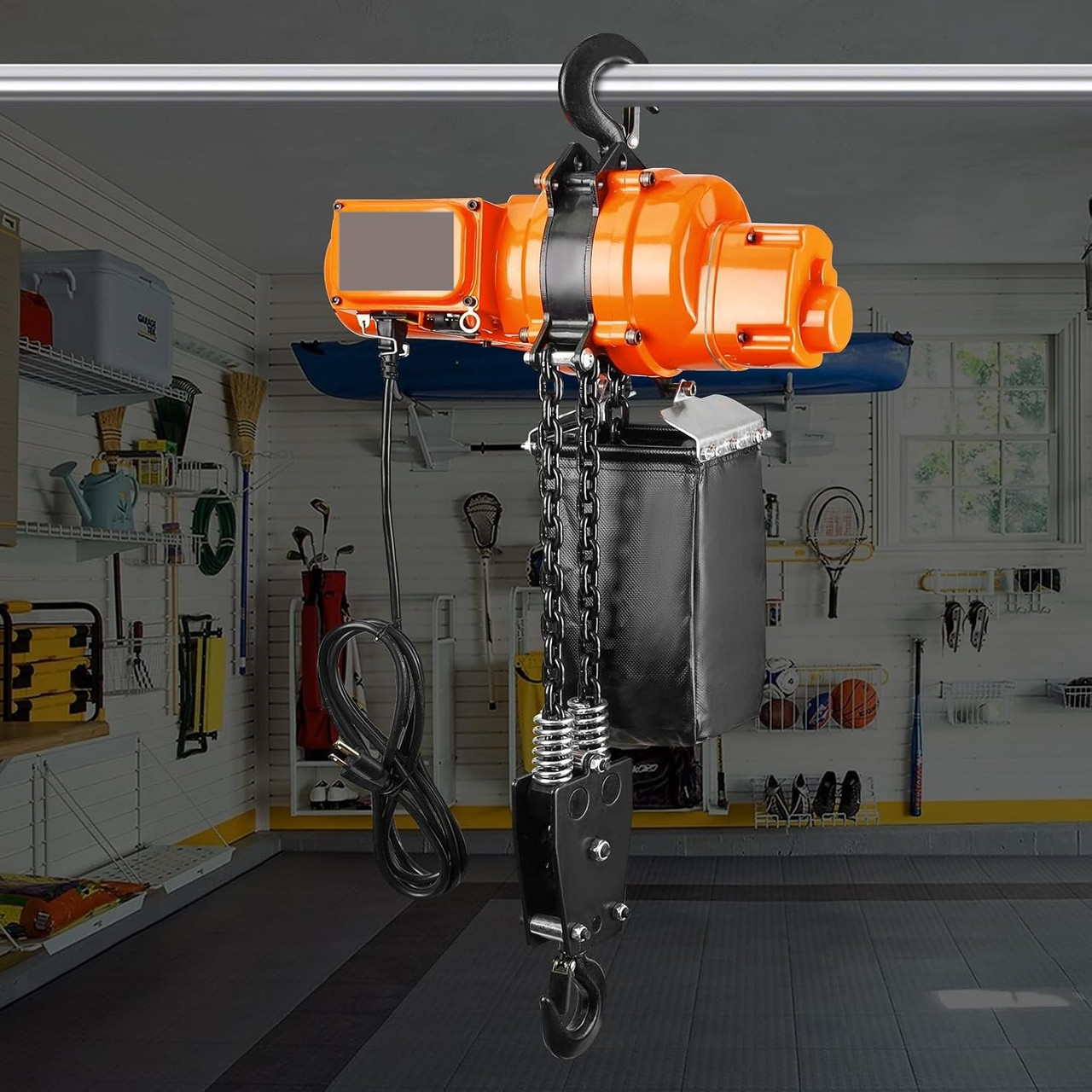

A 1-ton (2200 lb / 998 kg) double-fall electric chain hoist with 20 ft of lift, running on standard 120V single-phase power. It has both a 15 ft wired pendant and a 328 ft wireless remote, so it's a good fit for garages, shops, warehouses and light industrial lifting.
Specifications
- Rated load: 2200 lbs (998 kg)
- Max lifting height: 20 ft (6 m)
- Power supply: 120V, 60Hz, single phase
- Motor power: 1000W pure copper motor
- No-load motor speed: 11,500 r/min
- Lifting speed: 6.9 ft/min
- Chain: Double-fall, DT-grade carburized steel, 0.25 in (6.3 mm) wire diameter
- Insulation class: F (155°C / 311°F)
- Protection rating: IP54
- Controls: 15 ft (4.5 m) wired pendant + 328 ft (100 m) wireless remote
- Hook: 360° swivel hook with safety latch
- Product weight: 73.6 lbs (33.4 kg)
- Product dimensions: 17.3 x 8.1 x 22.8 in (440 x 205 x 580 mm)
Features
- Double-fall chain design for stable, balanced lifting of loads up to 2200 lbs
- Heavy-duty DT-grade carburized chain for wear resistance in -10°C to 200°C working environments
- Pure copper motor with Class F insulation for dependable, continuous operation
- Two control modes: a 15 ft wired pendant for close work and a 328 ft wireless remote for operating from a safe distance
- Emergency stop and electromagnetic brake that hold the load securely when you release the button
- 360° swivel hook with a safety latch for easier rigging
- Mounts to a beam, trolley or rated overhead support with metal or wood straps
What's in the Box
- 1 x Electric chain hoist
- 1 x 15 ft wired pendant control
- 1 x Wireless remote control (uses 2 x AA batteries)
- 1 x Lifting sling
- 1 x User manual
Warranty
Manufacturer's warranty.
Safety note: Never exceed the rated load. Never lift people. Mount only to a support that is rated for the load, and have a qualified person handle installation and electrical connection.
