Product Description

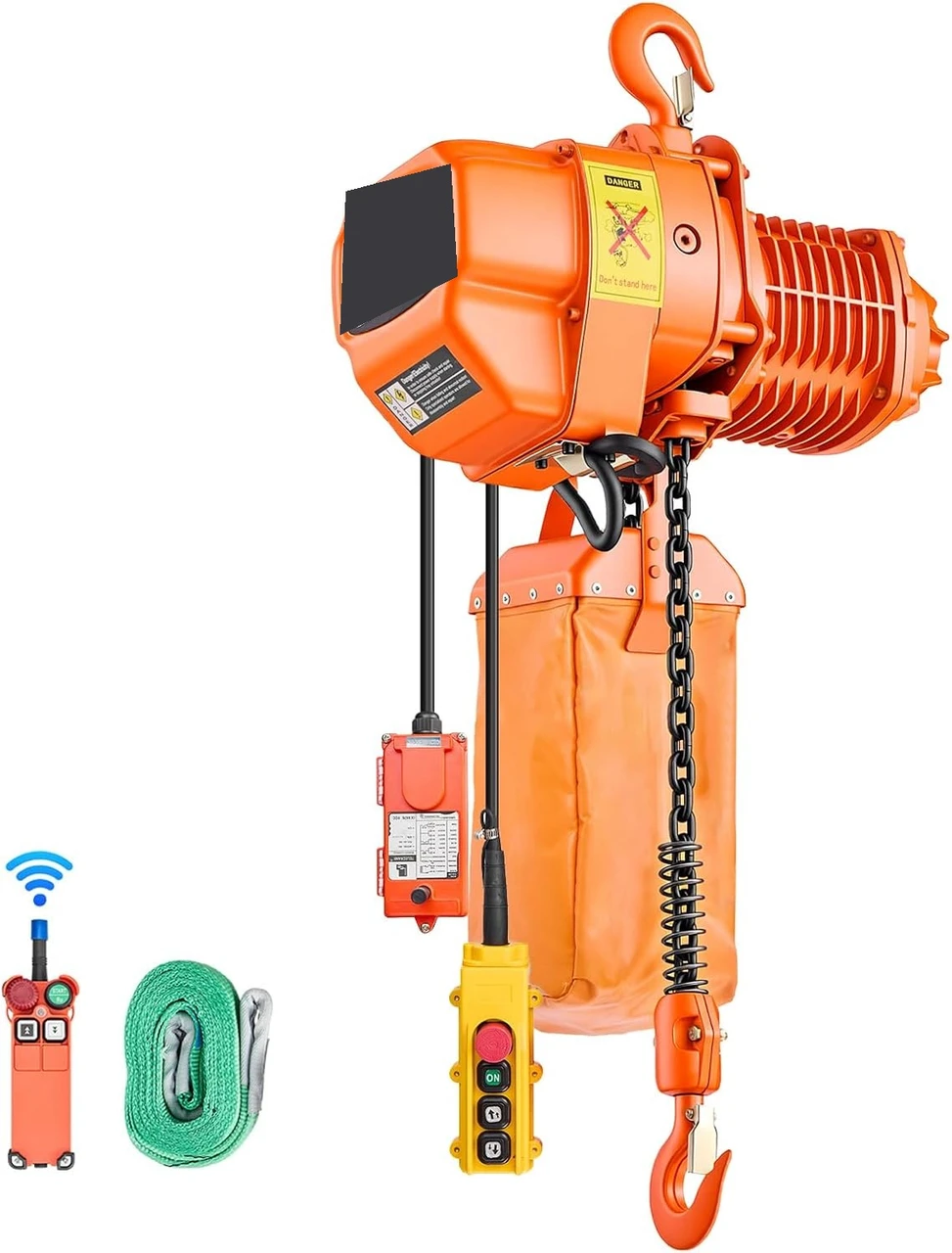

An industrial 1100 lb (500 kg) dual-speed electric chain hoist with 20 ft of lift for 480V three-phase power. A fast 27.5 ft/min speed covers quick lifts, and a slow 8.2 ft/min speed handles precise placement. You can run it from the 15 ft wired pendant or the 328 ft wireless remote.
Specifications
- Rated load: 1100 lbs (500 kg)
- Max lifting height: 20 ft (6 m)
- Power supply: 480V, 60Hz, three phase
- Motor power: 1000W copper motor with cooling fan
- Lifting speed: Fast 27.5 ft/min (8.4 m/min); slow 8.2 ft/min (2.5 m/min)
- Chain: Single-fall G80 alloy steel chain
- Insulation class: F
- Protection rating: IP55
- Controls: 15 ft (4.5 m) wired pendant + 328 ft (100 m) wireless remote
- Hook: 360° rotating forged hook
- Housing: Aluminum alloy
- Net weight: 82.5 lbs (37.4 kg)

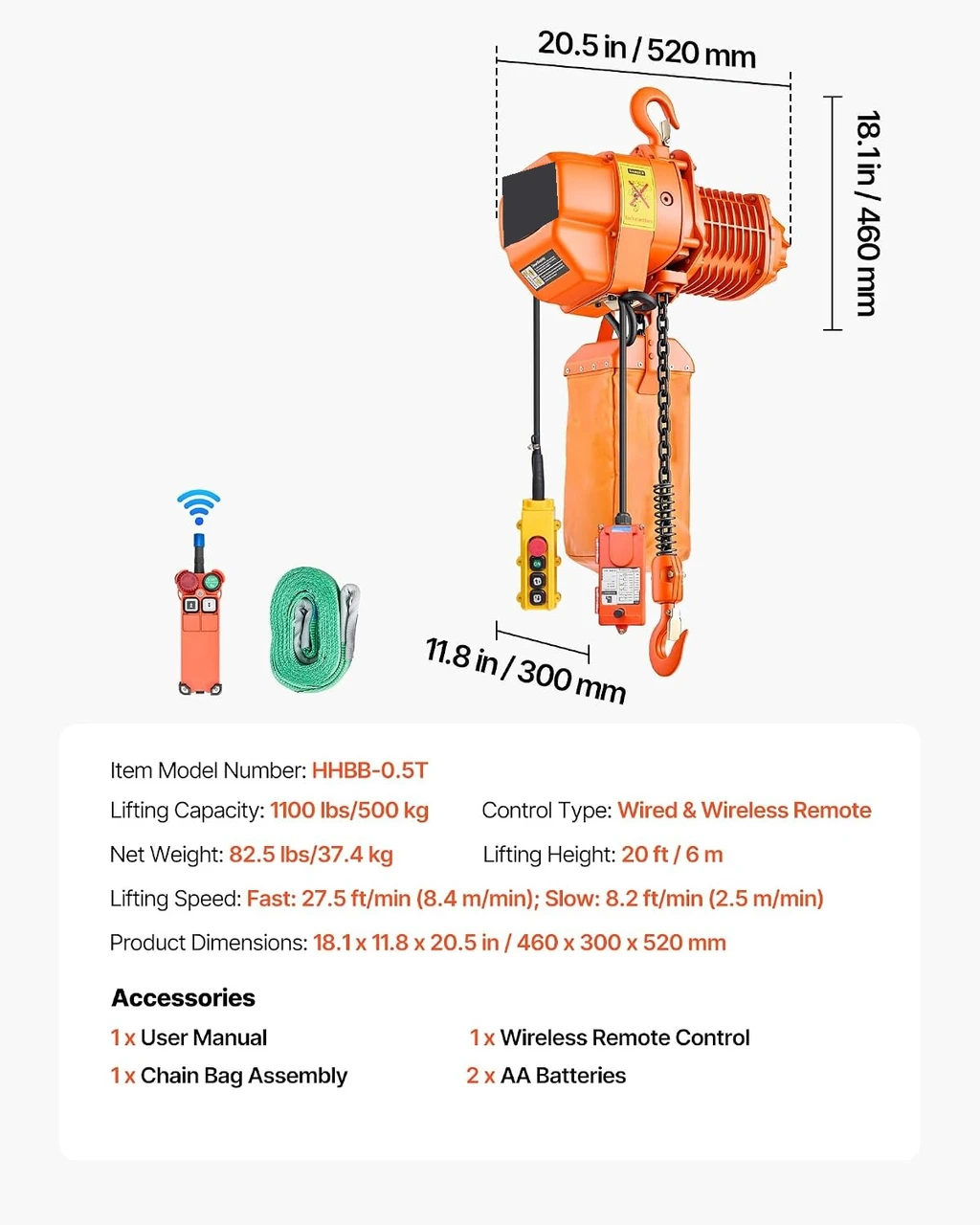

- Product dimensions: 18.1 x 11.8 x 20.5 in (460 x 300 x 520 mm)
Features
- Two lifting speeds: fast 27.5 ft/min for quick lifts and slow 8.2 ft/min for precise positioning
- 2-in-1 control: a 15 ft wired pendant for hands-on precision and a 328 ft wireless remote for team coordination
- 480V three-phase motor built for steady industrial duty
- Upper and lower limit switches prevent over-travel
- Automatic braking on power loss and an emergency stop switch
- G80 alloy chain with a chain bag to keep the chain tidy
- IP55 protection, cooling fan and Class F insulation
- 360° forged hook and an aluminum housing
What's in the Box
- 1 x Electric chain hoist with chain bag assembly
- 1 x 15 ft wired pendant control
- 1 x Wireless remote control
- 2 x AA batteries
- 1 x User manual
Warranty
Manufacturer's warranty.
Safety note: Never exceed the rated load. Never lift people. Mount only to a support that is rated for the load, and have a qualified person handle installation and electrical connection.
