Product Description
A 2200 lb (998 kg) double-fall electric chain hoist with 10 ft of lift that plugs into standard 120V single-phase power. It has a 10 ft wired pendant with an emergency stop and is built for garages, shops, hotels, farms and home workshops.
Specifications
- Rated load: 2200 lbs (998 kg)
- Max lifting height: 10 ft (3 m)
- Power supply: 120V, 60Hz, single phase

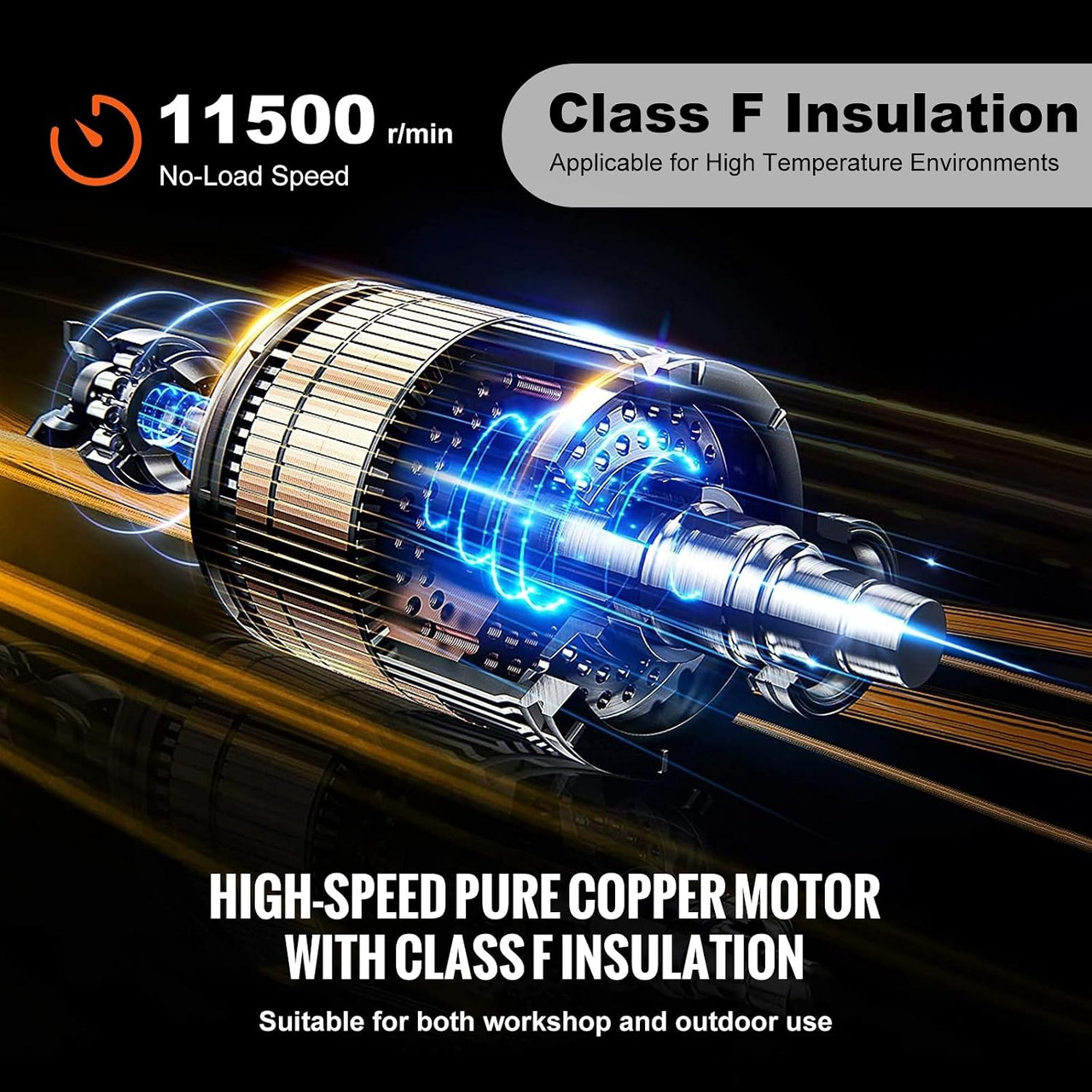

- Motor power: 1000W pure copper motor
- No-load motor speed: 11,500 r/min
- Lifting speed: 6.9 ft/min
- Chain: Double-fall, DT-grade carburized steel, 0.25 in (6.3 mm) wire diameter
- Insulation class: F (155°C / 311°F)
- Protection rating: IP54
- Controls: 10 ft (3 m) wired pendant with emergency stop
- Hook: 360° swivel hook with safety latch
- Product weight: 55.1 lbs (25 kg)
- Product dimensions: 17.3 x 8.1 x 22.8 in (440 x 205 x 580 mm)
Features
- Double-fall chain design for stable lifting of loads up to 2200 lbs
- DT-grade carburized chain for strength and wear resistance
- Pure copper motor with Class F insulation rated up to 155°C
- 10 ft extended control cable lets you work from a comfortable distance
- Built-in emergency stop switch and electromagnetic brake for secure load holding
- 360° swivel hook with a safety latch
- Easy installation on a beam, trolley or rated overhead support with metal or wood straps
- Ideal for lifting engines, boats, mowers, golf carts, equipment and other heavy items
What's in the Box
- 1 x Electric chain hoist
- 1 x 10 ft wired pendant control
- 1 x Lifting sling
- 1 x User manual
Warranty
Manufacturer's warranty.
Safety note: Never exceed the rated load. Never lift people. Mount only to a support that is rated for the load, and have a qualified person handle installation and electrical connection.
