Product Description

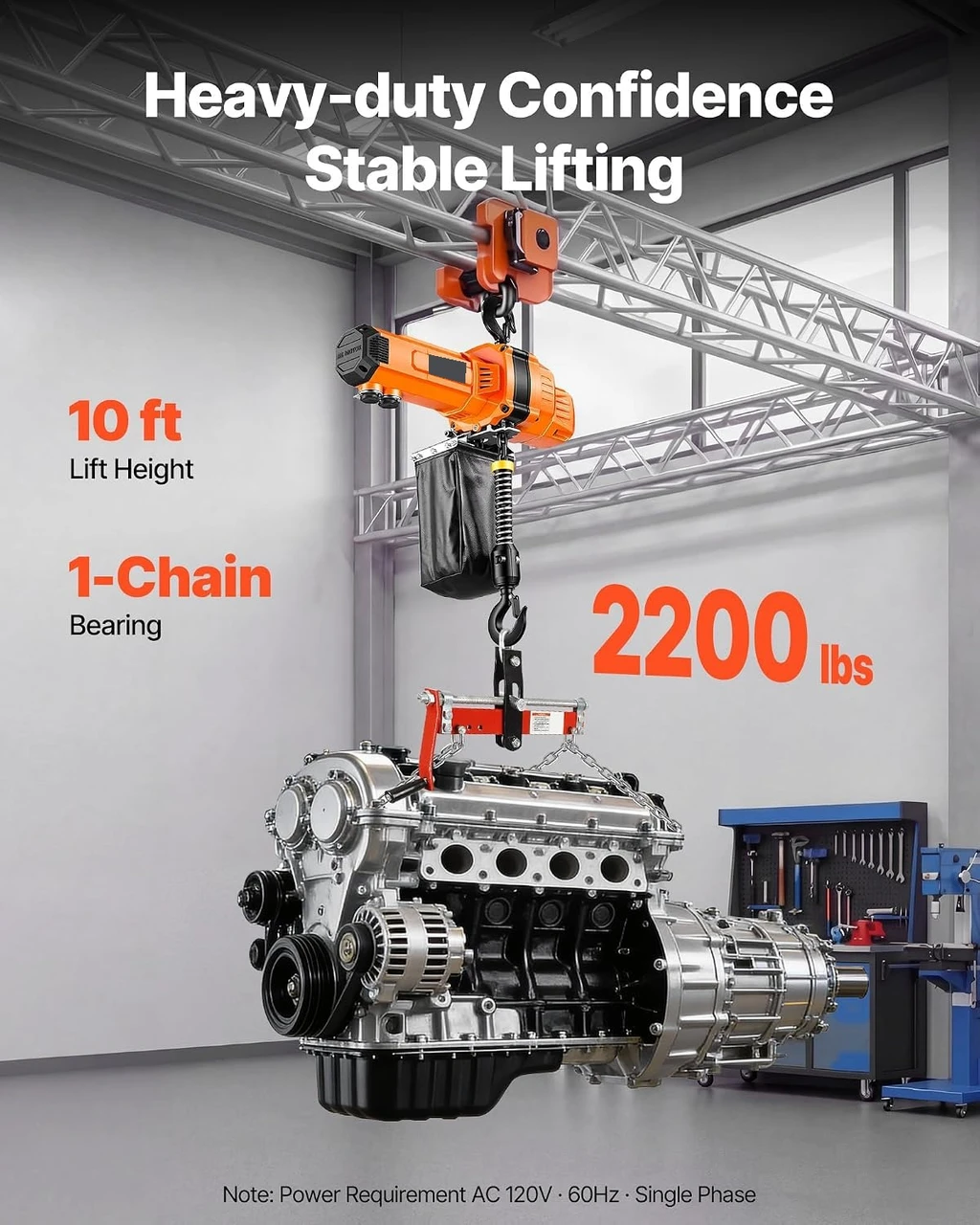

A fast single-chain electric hoist rated for 2200 lbs (1000 kg) with 10 ft of lift. Its brushless motor lifts and lowers at a steady 29 ft/min on standard 120V single-phase power. It has a lightweight aluminum housing and a full set of safety protections, so it suits factories, warehouses and garages.
Specifications
- Rated load: 2200 lbs (1000 kg)
- Max lifting height: 10 ft (3 m)
- Power supply: AC 120V, 60Hz, single phase
- Motor: 2500W brushless motor with cooling fan
- Lifting speed: 29 ft/min (fixed, constant speed)
- Chain: Single-fall G100 alloy steel chain
- Insulation class: F (155°C)
- Protection rating: IP54 dustproof and splash-resistant

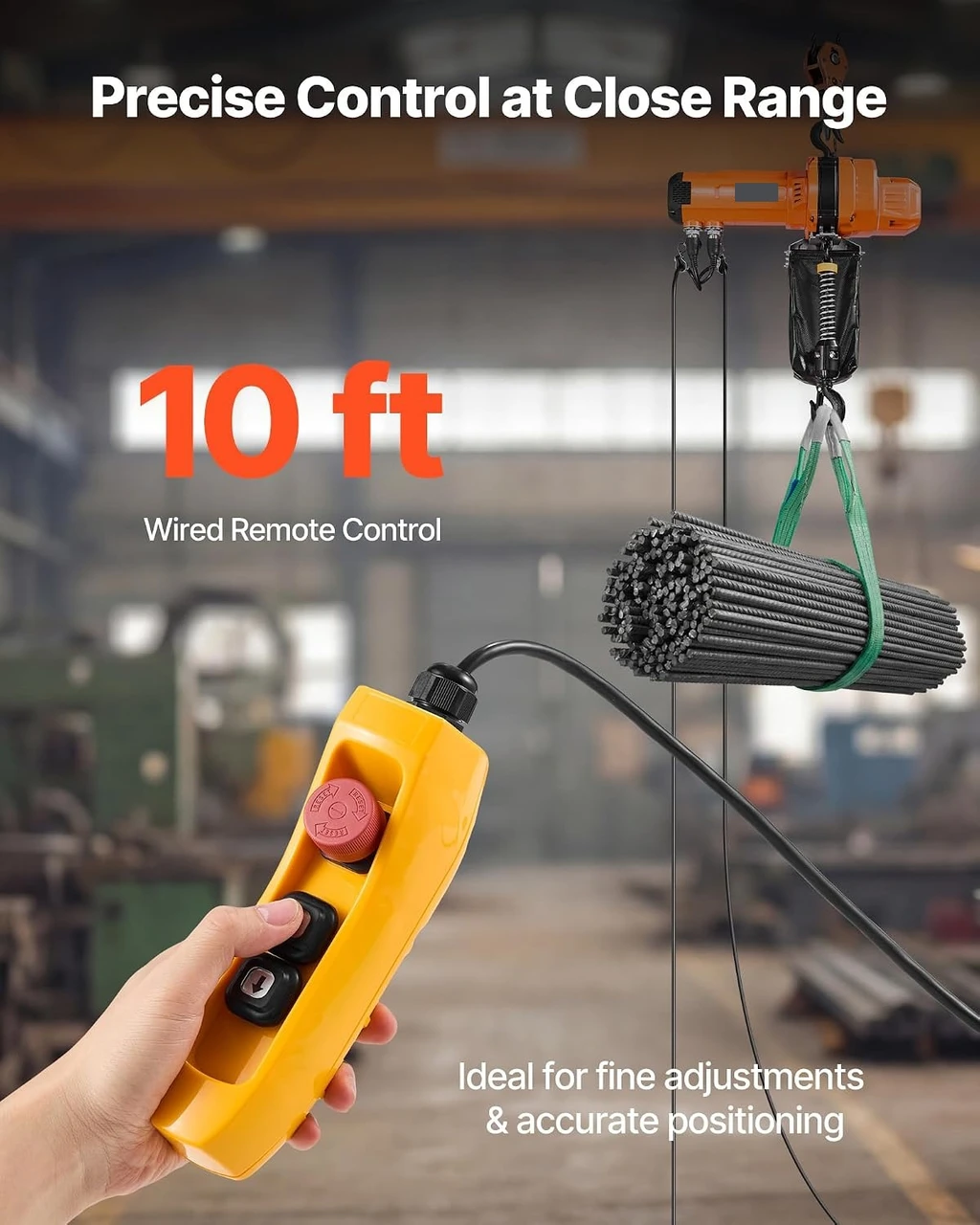

- Controls: 10 ft (3 m) wired pendant with emergency stop
- Hook: 360° rotating forged hook
- Housing: Aluminum alloy
- Net weight: 45.2 lbs (20.5 kg)

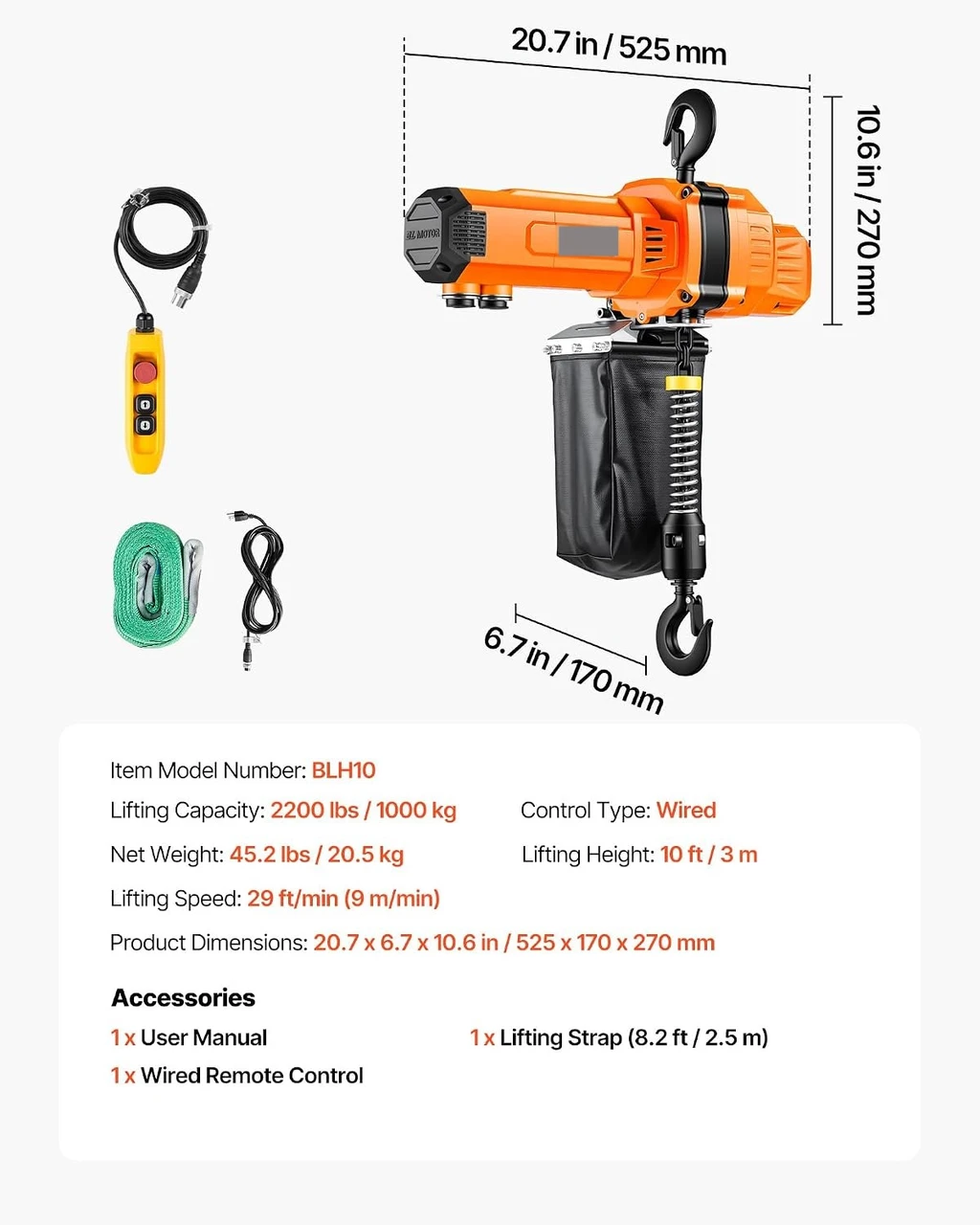

- Product dimensions: 20.7 x 6.7 x 10.6 in (525 x 170 x 270 mm)
Features
- Brushless motor gives a fast, constant 29 ft/min lift speed for repetitive lifting jobs
- Single-fall G100 alloy steel chain for high strength and durability
- Upper and lower limit switches prevent over-travel
- Automatic braking on power loss helps prevent sudden drops
- Emergency stop switch on the wired pendant
- IP54 motor, cooling fan and Class F insulation for reliable daily use
- 360° rotating forged hook and a lightweight aluminum housing
What's in the Box
- 1 x Electric chain hoist
- 1 x 10 ft wired remote control
- 1 x Lifting strap (8.2 ft / 2.5 m)
- 1 x User manual
Warranty
Manufacturer's warranty.
Safety note: Never exceed the rated load. Never lift people. Mount only to a support that is rated for the load, and have a qualified person handle installation and electrical connection.
