Product Description
Overview

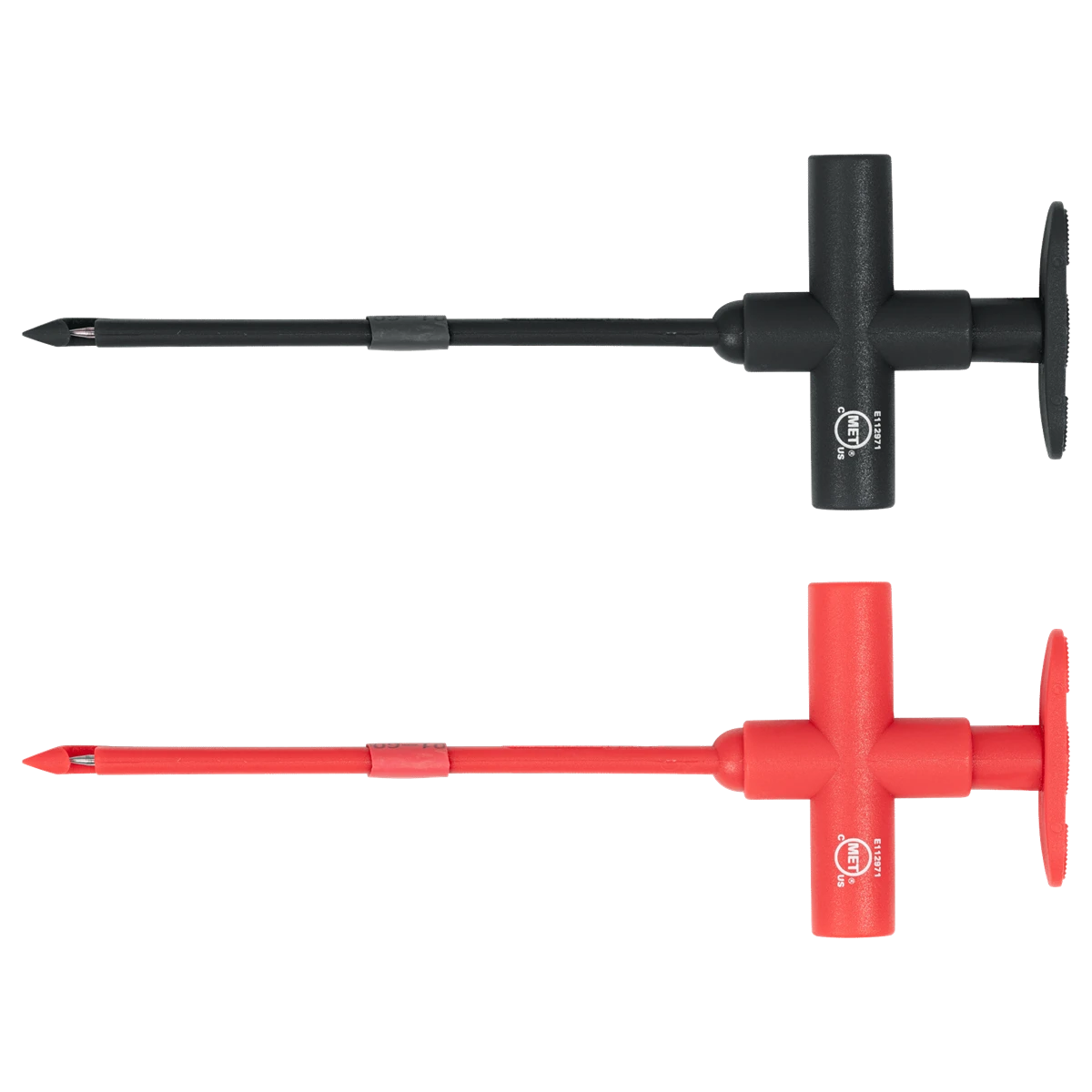

The UEi ATL6 Modular Piercing Test Clips are professional diagnostic accessories that allow technicians to safely access electrical conductors through wire insulation without cutting, stripping, or damaging the cable. Designed exclusively for the ATLTX Modular Test Lead System, the ATL6 helps simplify troubleshooting and voltage testing in HVAC, electrical, industrial, and control system applications.
The spring-loaded piercing mechanism uses a sharp needle tip to puncture insulation and establish electrical contact with conductors up to 1.5mm in diameter. Once attached, the clip securely clamps onto the cable, enabling hands-free testing while reducing the need for cable modifications.
Color-coded positive and negative clips assist with proper polarity identification and organized testing procedures.
Key Features
- Modular piercing test clip set
- Designed for use with ATLTX Modular Test Lead Set
- Female 4mm jack connections
- Pierces wire insulation without stripping
- Spring-loaded one-handed plunger operation
- Needle-point piercing tip
- Suitable for cables up to 1.5mm diameter
- Hands-free testing capability
- Color-coded positive and negative clips
- c-MET-us listed
- CAT III 1000V 10A safety rating
Use Cases
- HVAC electrical diagnostics
- Wire troubleshooting
- Circuit verification
- Voltage testing
- Control system diagnostics
- Electrical maintenance
- Industrial service work
- Temporary test point creation
Compatibility
Required Product
- UEi ATLTX Modular Test Lead Set
Benefits
- Eliminates the need to strip insulation
- Reduces wire damage during testing
- Enables hands-free measurements
- Speeds troubleshooting procedures
- Provides secure temporary test connections
- Improves technician efficiency
- Integrates seamlessly with modular lead systems
FAQ
Q: What is the ATL6 used for?
A: The ATL6 is used to pierce wire insulation and take electrical measurements without stripping or cutting the wire.
Q: Does the ATL6 work independently?
A: No. The ATL6 is designed to work with the UEi ATLTX Modular Test Lead Set.
Q: What cable size can the piercing tip handle?
A: The piercing clip is designed for cables up to 1.5mm in diameter.
Q: How does the clip operate?
A: The ATL6 uses a spring-loaded one-handed plunger mechanism for easy attachment and removal.
Q: What is the safety rating?
A: The ATL6 is safety rated at CAT III 1000V 10A.
Technical Specs
- Product Type: Modular Piercing Test Clips
- Model Number: ATL6
- Connection Type: Female 4mm Jack
- Clip Style: Piercing Test Clip
- Operation: Spring-Loaded One-Handed Plunger
- Cable Diameter Capacity: Up to 1.5mm
- Color-Coded: Yes
- Hands-Free Testing: Yes
- Certification: c-MET-us Listed
- CAT Rating: CAT III 1000V
- Current Rating: 10A
- Compatible Lead System: ATLTX
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Compact design for easy transport and storage.
Who This Is For
- HVAC Technicians
- Electricians
- Industrial Maintenance Professionals
- Controls Technicians
- Service Contractors
- Electrical Troubleshooting Specialists
End-of-Page Summary
The UEi ATL6 Modular Piercing Test Clips provide a fast and minimally invasive method for testing insulated conductors without stripping wires. Designed for use with the ATLTX Modular Test Lead System, these spring-loaded clips offer hands-free operation, CAT III safety ratings, and efficient troubleshooting capabilities for professional electrical diagnostics.
