Product Description
Overview

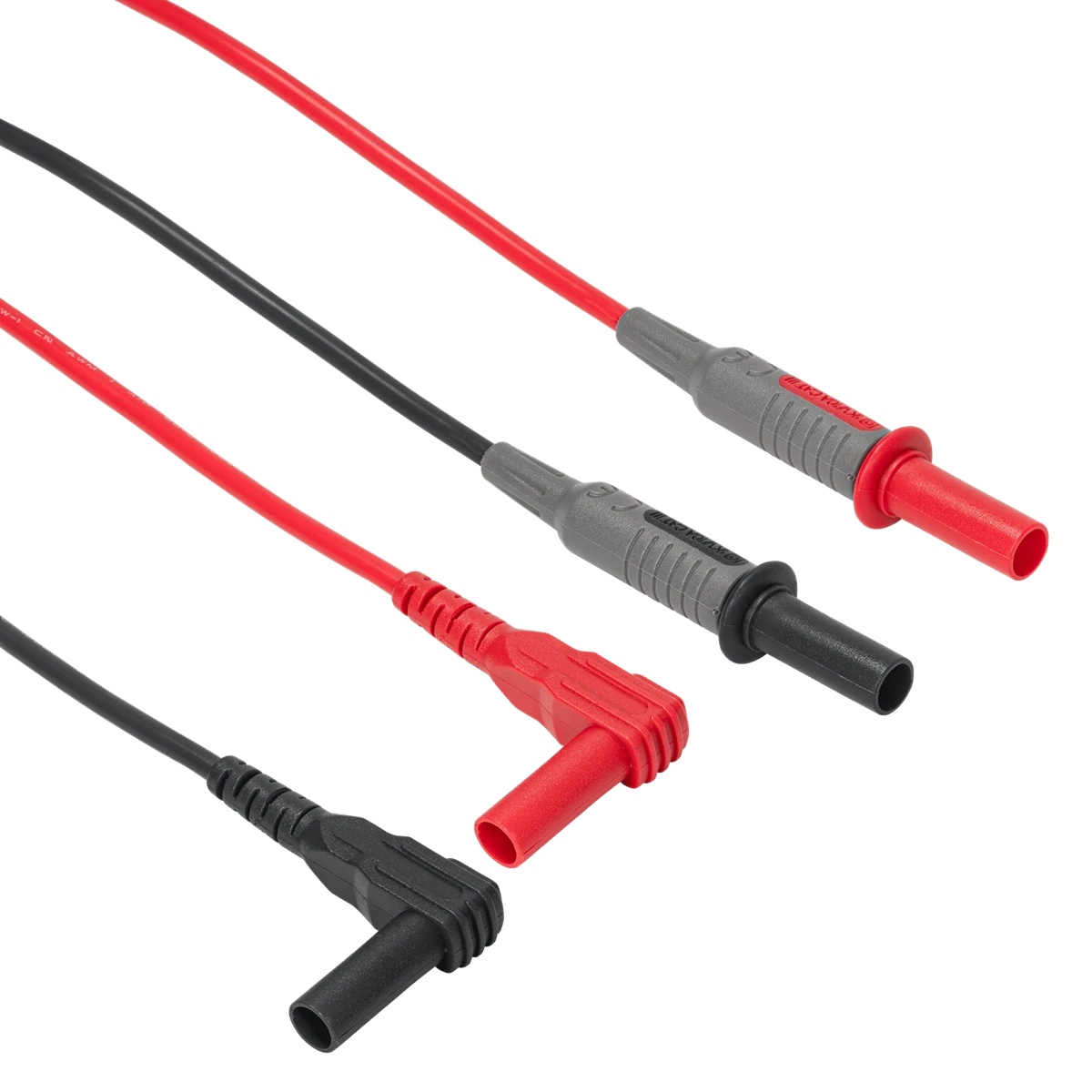

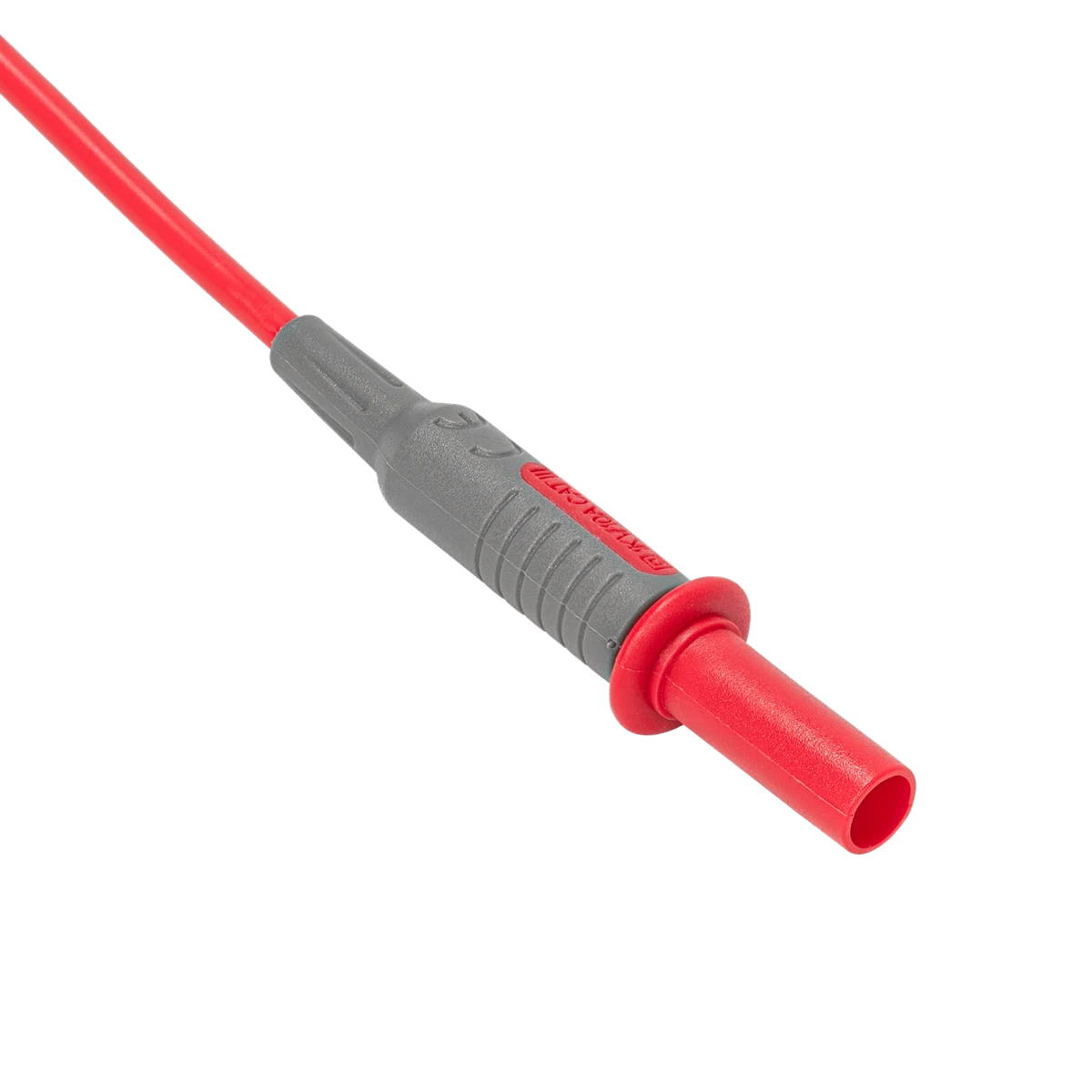

The UEi ATLTX Modular Test Lead Extension Wire is the core component of the UEi modular test lead system. Designed to work with a variety of interchangeable accessories including fine-point probes, alligator clips, grabber clips, back probes, and piercing clips, the ATLTX allows technicians to customize their test setup for virtually any diagnostic task.
Featuring durable standard insulation, a straight-to-right-angle lead design, and an overall length of 40 inches, the ATLTX delivers the flexibility and reach required for professional HVAC, electrical, industrial, and maintenance testing applications.
Its 4mm input jack configuration and extra-long safety shrouds provide secure connections and compatibility with numerous UEi instruments.
Key Features
- Modular test lead extension wire set
- Compatible with interchangeable UEi modular accessories
- Straight-to-right-angle connection configuration
- 40-inch overall lead length
- Standard insulation construction
- 4mm input jack compatibility
- Extra-long safety shrouds
- 21mm shrouded banana plug ends
- Professional diagnostic testing solution
- Designed for electrical troubleshooting and maintenance
Compatible Modular Accessories
- ATL1 Fine Point Probe Set
- ATL2 Large Jaw Alligator Clip Set
- ATL3 Grabber Clip Set
- ATL5 Back Probe Set

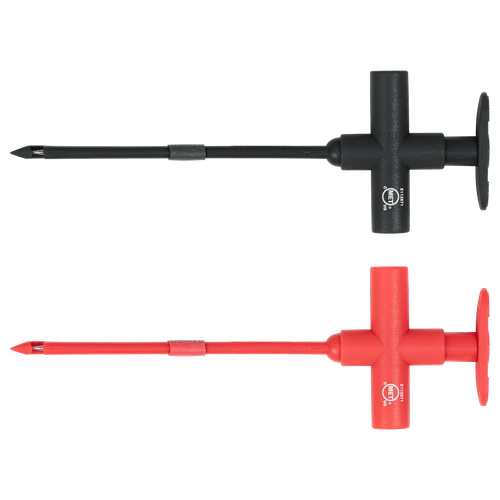

- ATL6 Piercing Test Clip Set
Use Cases
- Electrical troubleshooting
- HVAC diagnostics
- Voltage measurements
- Continuity testing
- Control board diagnostics
- Circuit verification
- Industrial maintenance
- Modular testing configurations
Compatibility
Current Products
- UEi DL369
- UEi DL379B
- UEi DL389B
- UEi DL569
- UEi DL579
- UEi DM505
- UEi DM515
- UEi DM525
- UEi IRT803
- UEi IRT807
Retired Products
- UEi DL269
- UEi DL279
- UEi DL289
- UEi DL379
- UEi DL389
- UEi DL419
- UEi DL429B
- UEi DL469
- UEi DL479
- UEi DL489
- UEi DM300
- UEi DM300A
- UEi DM310
- UEi DM383
- UEi DM383B
- UEi DM384
- UEi DM391
- UEi DM393
- UEi DM400
- UEi DM410
- UEi DM420
- UEi DM520
- UEi DM600
- UEi DMEG1
- UEi DMEG2
- UEi IRT3
- UEi UTL261
- UEi UTL291
- UEi UTL33T
- UEi UTLDM1
- UEi UTLDM2
Also Available As
ATLBPK
- ATLTX Modular Test Lead Set
- ATL5 Back Probe Set
ATL301KIT
- ATLTX Modular Test Lead Set
- ATL1 Fine Point Probe Set
- ATL2 Large Jaw Alligator Clip Set
- ATL3 Grabber Clip Set
- AC12 Carrying Pouch
Benefits
- Customizable testing configurations
- Supports multiple interchangeable accessories
- Reduces the need for separate lead sets
- Improves technician efficiency
- Compatible with a wide range of UEi instruments
- Professional-grade diagnostic flexibility
FAQ
Q: What is the ATLTX?
A: The ATLTX is a modular test lead extension wire set that serves as the foundation for UEi's interchangeable modular testing system.
Q: Can the ATLTX be used with different probe types?
A: Yes. It is compatible with fine-point probes, alligator clips, grabber clips, back probes, and piercing clips.
Q: How long are the leads?
A: The ATLTX has an overall length of 40 inches.
Q: What type of input connection does it use?
A: It uses 4mm input jacks with extra-long safety shrouds.
Q: What is the safety rating?
A: The ATLTX is safety rated for CAT III 1000V at 10A.
Technical Specs
General
- Product Type: Modular Test Lead Extension Wire
- Model Number: ATLTX
- Lead Length: 40 Inches
- Insulation Type: Standard
- Connection Configuration: Straight to Right-Angle
Connections
- Input Jack Size: 4mm
- Banana Plug Type: Shrouded
- Shroud Length: 21mm
- Modular Accessory Compatible: Yes
Safety
- Safety Rating: CAT III 1000V
- Current Rating: 10A
Warranty
- 1-Year Limited Warranty
Shipping Information
- Ships in protective retail packaging.
- Compatible with multiple modular testing accessories sold separately.
Who This Is For
- HVAC Technicians
- Electricians
- Service Technicians
- Industrial Maintenance Professionals
- Controls Technicians
- Electrical Troubleshooting Specialists
End-of-Page Summary
The UEi ATLTX Modular Test Lead Extension Wire serves as the core of the UEi modular testing system, allowing technicians to interchange probes, clips, and specialty accessories for a customized testing solution. With CAT III 1000V safety ratings, 40-inch lead length, and broad instrument compatibility, the ATLTX delivers professional flexibility for electrical diagnostics and troubleshooting.
