Product Description
Overview
The UEi 510KIT Condensing Unit Install Kit provides HVAC professionals with the critical tools needed to properly install, commission, and maintain condensing units. Designed to support manufacturer-recommended installation procedures, this comprehensive kit allows technicians to verify electrical performance, measure refrigerant system conditions, perform evacuation testing, calculate superheat and subcool values, and detect refrigerant leaks.
The kit includes the EPC True-RMS Wireless Clamp Meter, RLD15B Refrigerant Leak Detector, HUB8 Smart Refrigerant Kit, AC550 Heavy Duty Tool Backpack, and multiple wireless probes for pressure, temperature, humidity, and vacuum measurements. Together, these tools provide accurate diagnostics and documentation required for equipment startup and warranty compliance.
Key Features
- Complete condensing unit installation and commissioning kit
- Includes EPC True-RMS wireless clamp meter
- HUB8 smart refrigerant diagnostic system
- RLD15B refrigerant leak detector
- Wireless pressure, temperature, humidity, and vacuum probes
- Calculates superheat and subcool values
- Supports evacuation verification procedures
- Detects HFC, HCFC, and CFC refrigerants
- Heavy-duty waterproof-base tool backpack included
- Suitable for installation, troubleshooting, and maintenance applications
Use Cases
- Condensing unit installation
- HVAC system commissioning
- Refrigerant leak detection
- Refrigeration diagnostics
- Superheat and subcool verification
- Electrical performance testing
- Vacuum and evacuation testing
- Warranty validation and documentation
Compatibility
Designed for servicing and commissioning:
- Air Conditioning Systems
- Condensing Units
- Heat Pump Systems
- Commercial HVAC Equipment
- Residential HVAC Equipment
- Refrigeration Systems
Benefits
- Helps satisfy manufacturer installation requirements
- Supports equipment warranty documentation
- Combines multiple HVAC diagnostic tools into one kit
- Improves installation accuracy and efficiency
- Detects refrigerant leaks quickly
- Simplifies commissioning and maintenance procedures
- Portable and organized storage solution included
FAQ
Q: What is included in the 510KIT?
A: The kit includes the EPC Clamp Meter, RLD15B Leak Detector, HUB8 Smart Refrigerant Kit, wireless probes, and the AC550 Heavy Duty Tool Backpack.
Q: Can this kit verify refrigerant system performance?
A: Yes. The kit measures pressure, temperature, superheat, subcooling, humidity, and evacuation levels for system verification.
Q: Does the leak detector identify refrigerant leaks?
A: Yes. The included RLD15B detects HFC, HCFC, and CFC refrigerants as well as refrigerant blends.
Q: Is the backpack included?
A: Yes. The AC550 Heavy Duty Tool Backpack is included with the kit.
Q: Is this kit suitable for equipment commissioning?
A: Yes. It is specifically designed to assist HVAC professionals during installation, startup, documentation, and maintenance procedures.
Technical Specs
General
- Part Number: 510KIT
- Product Type: Condensing Unit Install Kit
- Display Count: 6000
- Dual Display: Yes
- Hold Function: Yes
- Min/Max Function: Yes
- Auto Power Off: Yes
- Digital Display: Yes
Electrical Measurement
- True RMS: Yes
- AC Voltage: 750V AC
- DC Voltage: 1000V DC
- AC Current: 600A AC
- AC Millivolts: 600mV
- DC Millivolts: 600mV
- Frequency: 99.99kHz
- Duty Cycle: 1.0% to 99.0%
- Resistance: 60 MΩ
- Capacitance: 6000µF
- Continuity: Yes
- Diode Test: Yes
- Low Z: Yes
- NCV Detection: Yes
- Inrush Current Measurement: Yes
Temperature
- Temperature Range: -328°F to 2462°F
- K-Type Inputs: Yes
- Pipe Clamp Range: 32°F to 180°F
Refrigeration Measurements
- Pressure Range: 0 to 725 PSIG
- Vacuum Range: 0 to 20,000 Microns
- Relative Humidity: 0% to 100%
- Hygrometer Temperature Range: 32°F to 140°F
- Superheat: 32°F to 180°F
- Subcool: 32°F to 180°F
- Vapor/Liquid Saturation: 32°F to 180°F
Leak Detection
- Refrigerant Detection: Yes
- Refrigerant Types: HFC, HCFC, CFC & Blends
- Detection Sensitivity: 0.05 oz/year
- Digital Numeric Leak Indicator: Yes
Certifications
- IP42 Rated
- cETLus Listed
- IEC 61010-1:2012
- CE Compliant
- FCC/IC Compliant
- RoHS Compliant
- SAE J2913 Certified
- ASHRAE 173-2012 Certified
- J2791 Certified
- EN 14624 Certified
- CAT IV 300V / CAT III 600V
Included Components

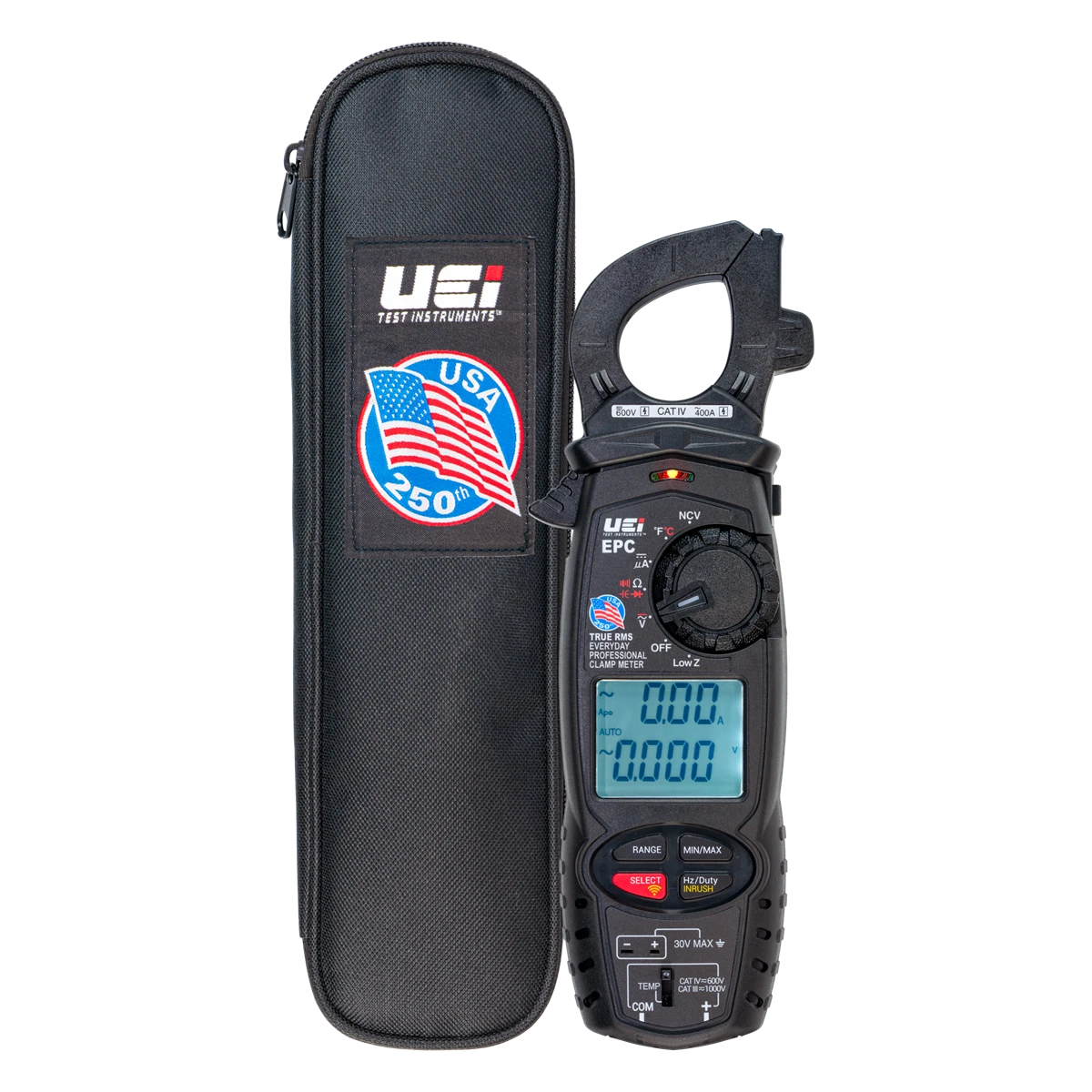

- EPC True-RMS Clamp Meter
- RLD15B Refrigerant Leak Detector
- HUB8 Smart Refrigerant Kit
- WOT2 Wireless Outside Temperature Probe
- WHP1 Wireless Hygrometer Probes (2)
- WVG2 Wireless Vacuum Gauge Probe
- WPP1 Wireless Pressure Probes (2)
- WPC2 Wireless Pipe Clamp Probes (2)

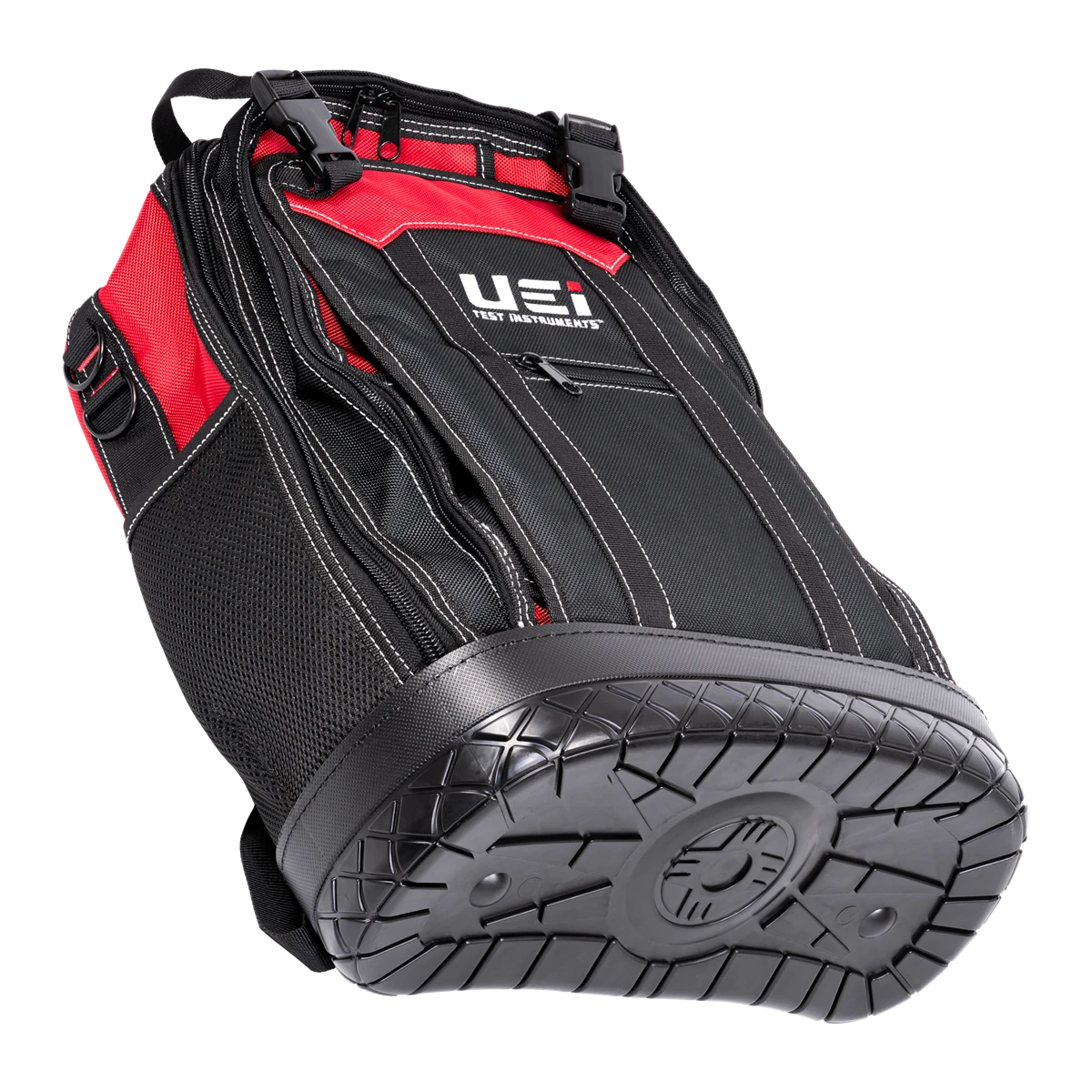

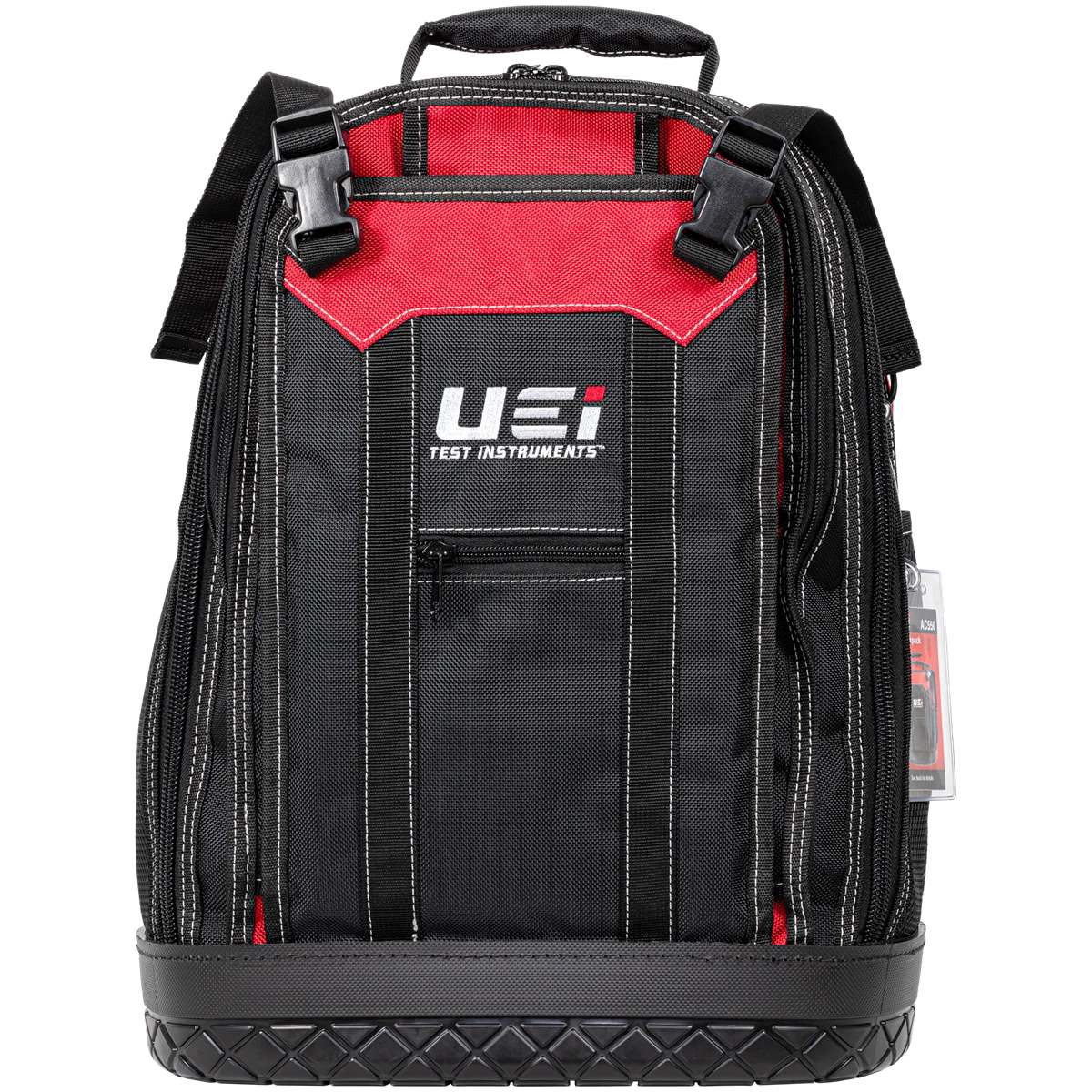

- AC550 Heavy Duty Tool Backpack
- AAA Batteries (4)
- AA Batteries (9)
Warranty
- Various Manufacturer Warranties Depending on Included Components
Shipping Information
- Ships in a protective heavy-duty carrying backpack.
- Designed for professional HVAC installation and service applications.
Who This Is For
- HVAC Installation Technicians
- HVAC Service Contractors
- Refrigeration Technicians
- Building Maintenance Teams
- Commercial HVAC Professionals
- Mechanical Service Companies
End-of-Page Summary
The UEi 510KIT Condensing Unit Install Kit delivers a complete HVAC commissioning and diagnostic solution. Featuring advanced electrical testing, refrigerant analysis, vacuum measurement, leak detection, wireless probes, and a durable professional backpack, this kit helps technicians validate installation quality, document system performance, and meet manufacturer warranty requirements.
