Overview

The UEi 511KIT Heat Pump Install Kit is a complete commissioning and service solution designed specifically for heat pump systems. This professional-grade kit combines electrical testing, static pressure measurement, refrigerant diagnostics, leak detection, and environmental monitoring into one convenient package.

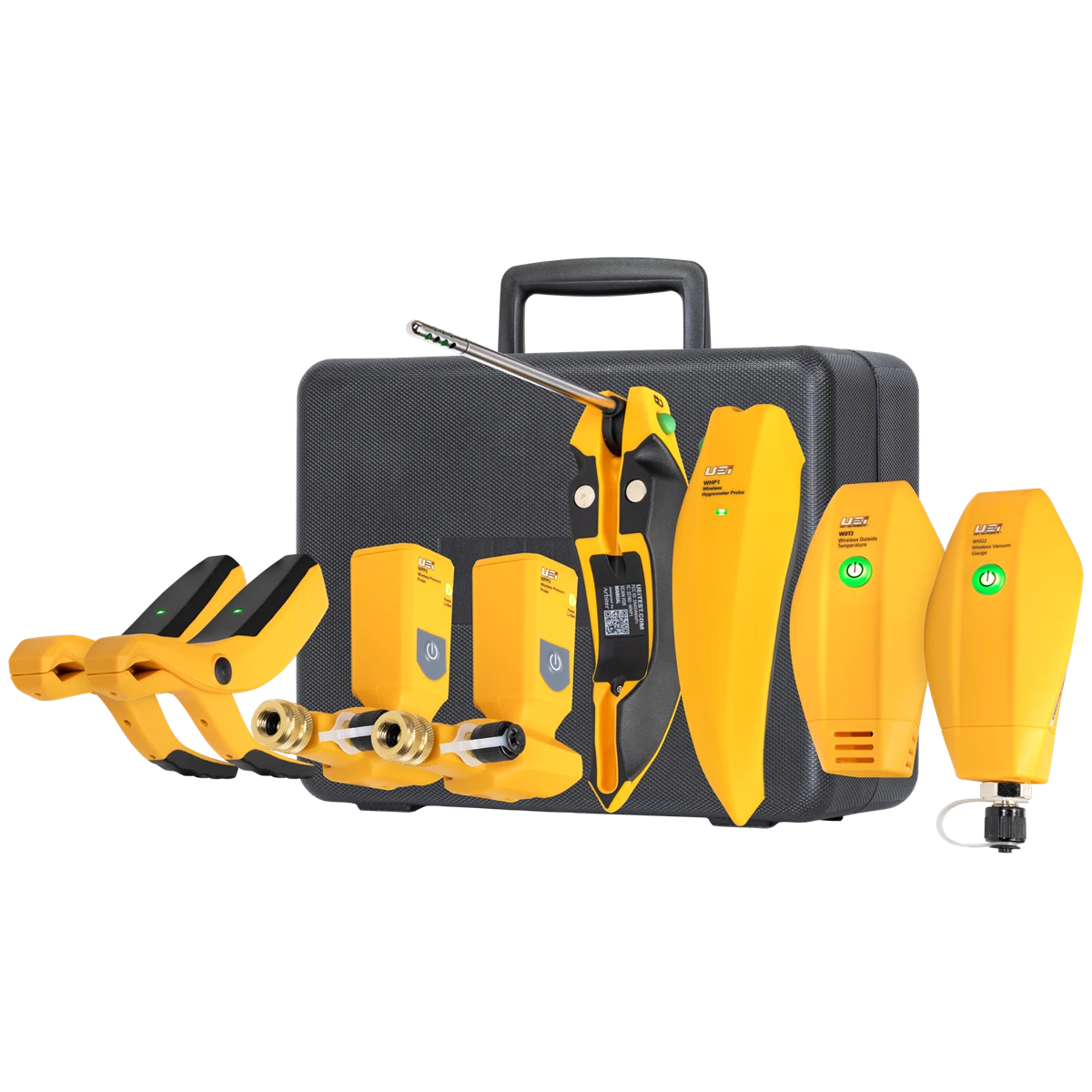

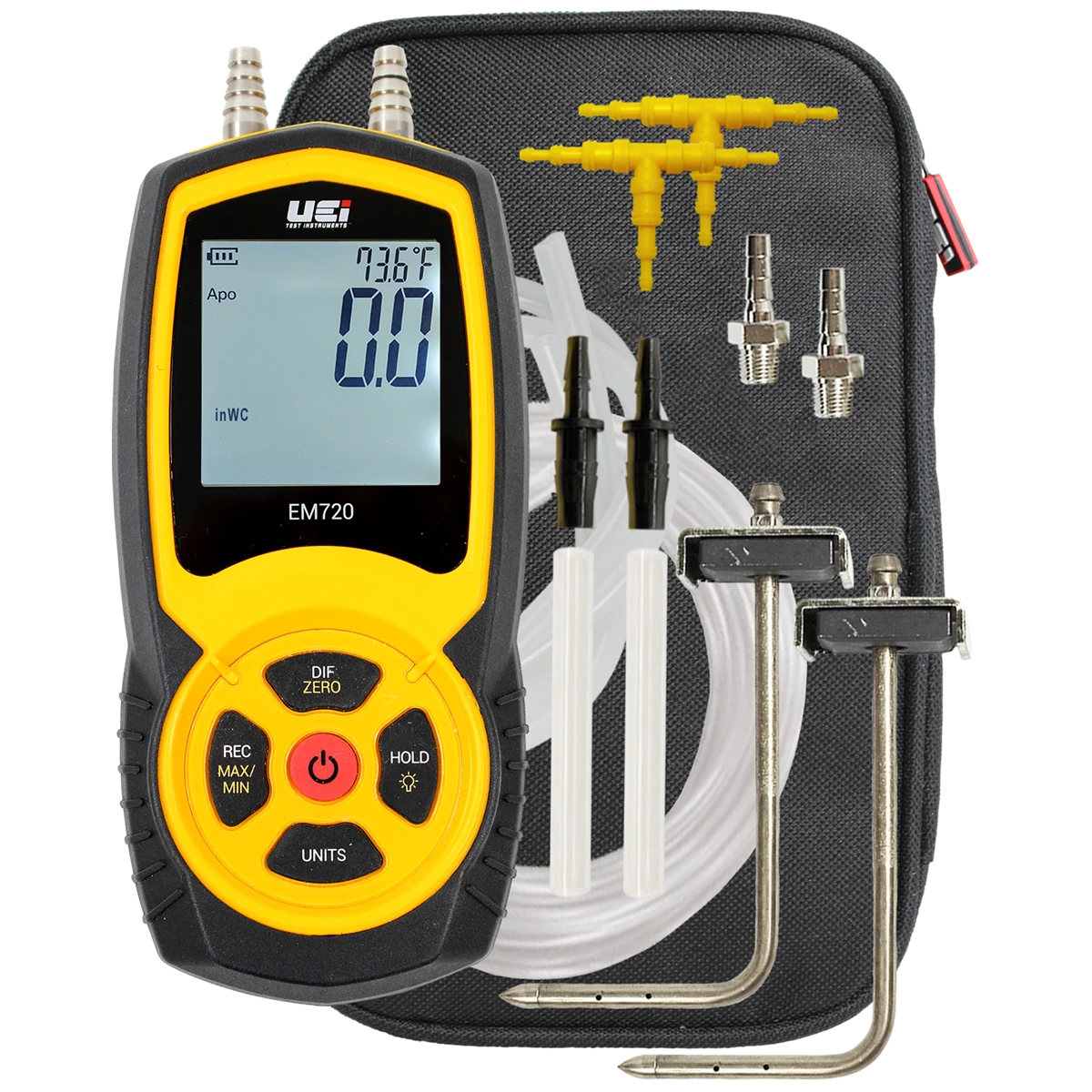

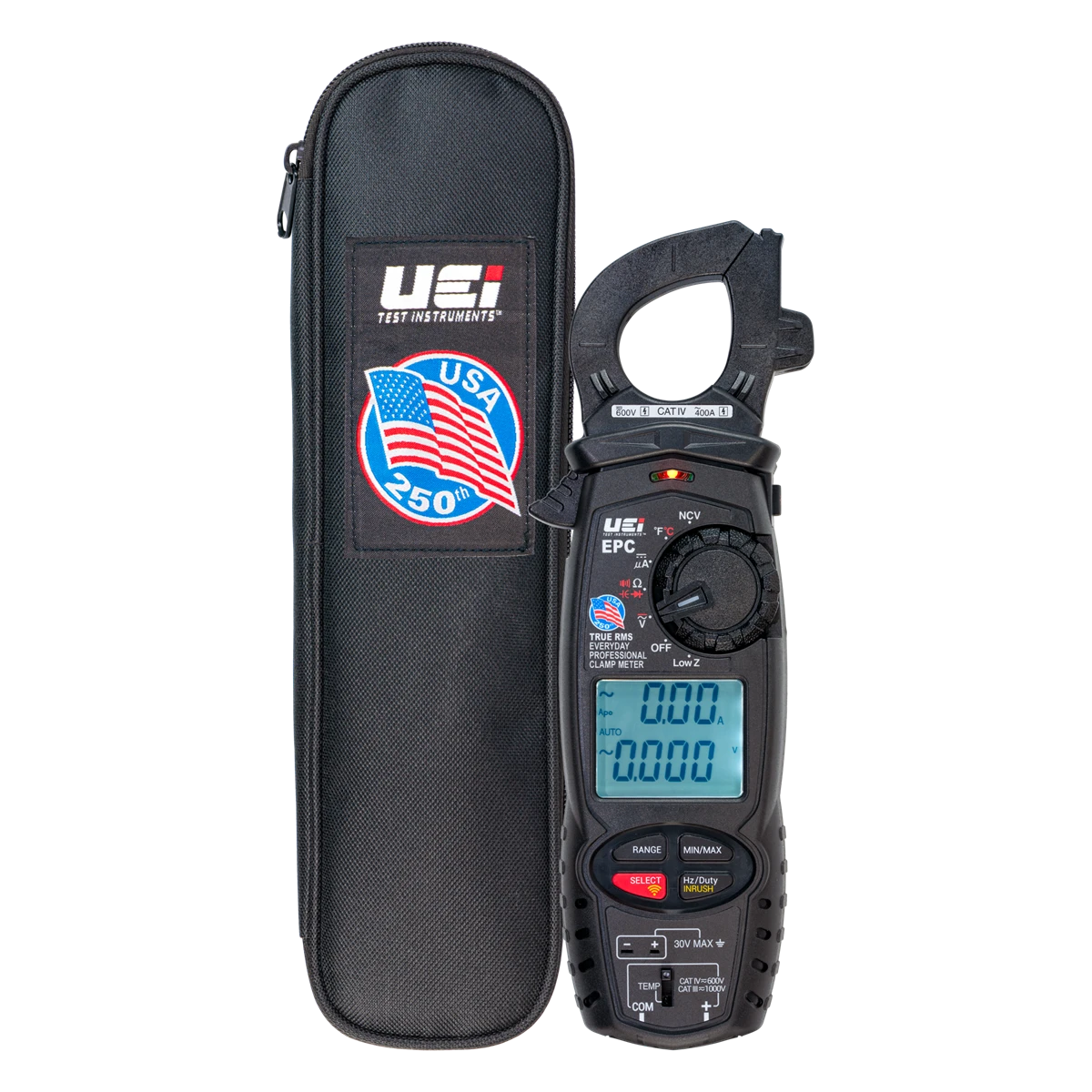

Using the EPC True-RMS Wireless Clamp Meter, technicians can verify electrical performance and grounding. The EM720SPKIT Differential Manometer allows accurate airflow and external static pressure testing. The HUB8 Smart Refrigerant Kit provides temperature, pressure, evacuation, superheat, and subcool measurements, while the RLD15B Refrigerant Leak Detector helps ensure the system remains leak-free after installation.

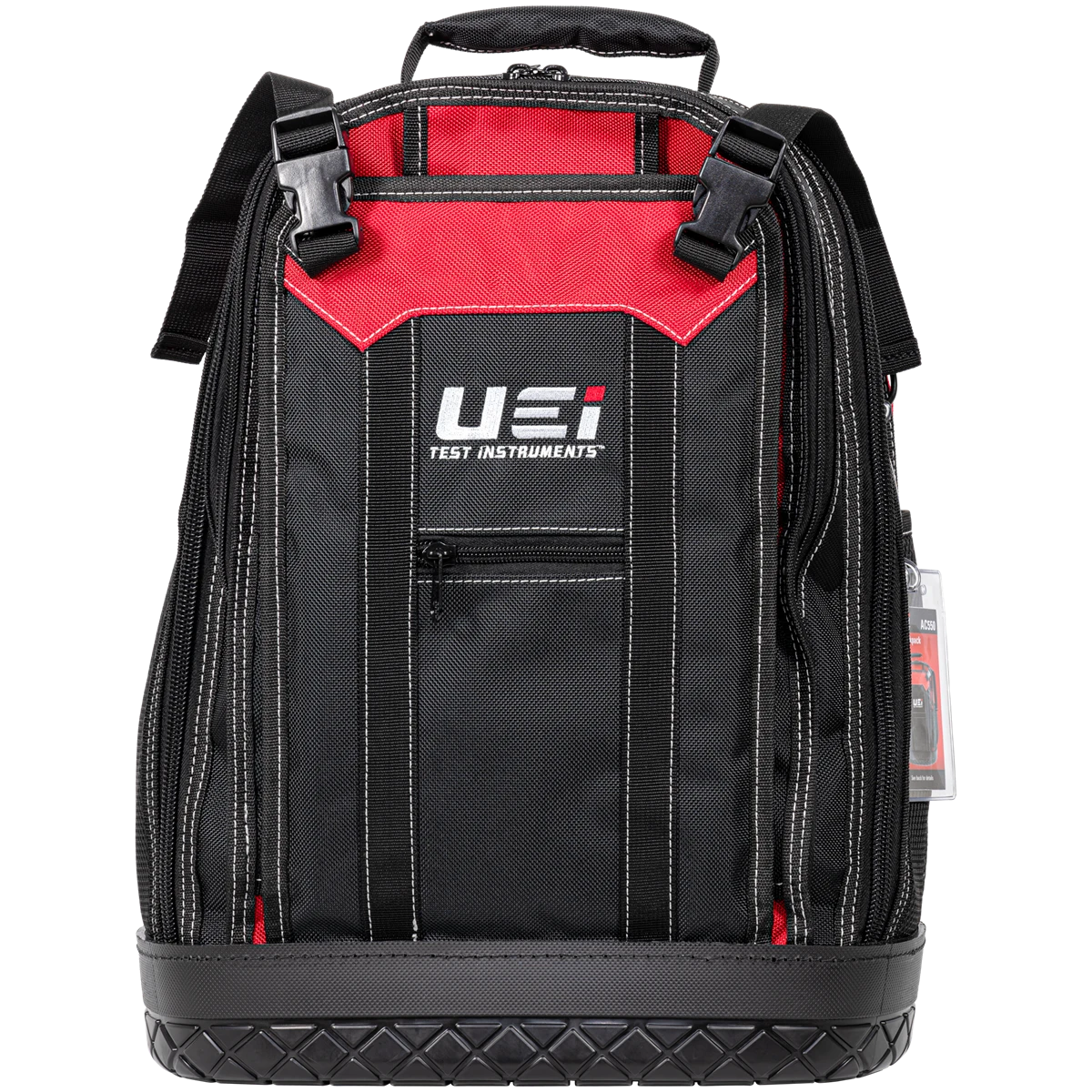

All components are organized inside the included AC550 Heavy Duty Tool Backpack for convenient transport and field use.

Key Features

• Complete heat pump installation and commissioning toolkit
• Includes EPC True-RMS wireless clamp meter
• Includes EM720SPKIT differential manometer and static pressure kit
• HUB8 smart refrigerant diagnostic platform
• RLD15B refrigerant leak detector
• Wireless pressure, temperature, humidity, and vacuum probes
• Supports airflow and static pressure testing
• Calculates superheat and subcool values
• Monitors evacuation performance
• Detects refrigerant leaks with high sensitivity
• Durable heavy-duty professional backpack included

Use Cases

• Heat pump installation verification
• Heat pump commissioning
• Airflow performance testing
• Static pressure testing
• Refrigerant charging and diagnostics
• Leak detection
• Warranty documentation
• Preventative maintenance and troubleshooting

Compatibility

Suitable for diagnosing and commissioning:

• Residential Heat Pumps
• Commercial Heat Pump Systems
• HVAC Systems
• Refrigeration Equipment
• Air Conditioning Systems
• Variable-Speed Heat Pump Equipment

Benefits

• Supports manufacturer-recommended startup procedures
• Provides documentation for warranty requirements
• Combines multiple diagnostic tools into one package
• Verifies electrical, airflow, and refrigerant system performance
• Improves installation quality and efficiency
• Helps detect leaks before system startup
• Eliminates the need for multiple separate testing kits

FAQ

Q: What is included in the 511KIT?

A: The kit includes the EPC Clamp Meter, EM720SPKIT Differential Manometer, HUB8 Smart Refrigerant Kit, RLD15B Leak Detector, wireless probes, batteries, and AC550 Heavy Duty Tool Backpack.

Q: Is this kit designed specifically for heat pumps?

A: Yes. The kit includes airflow, refrigerant, electrical, and leak detection tools commonly required for heat pump installation and service.

Q: Can this kit measure external static pressure?

A: Yes. The included EM720SPKIT differential manometer supports external static pressure testing.

Q: Does the kit support refrigerant diagnostics?

A: Yes. The HUB8 system provides pressure, temperature, superheat, subcooling, humidity, and evacuation measurements.

Q: Is refrigerant leak detection included?

A: Yes. The RLD15B leak detector can detect HFC, HCFC, CFC refrigerants, and blends.

Technical Specs

General

• Part Number: 511KIT
• Product Type: Heat Pump Install Kit
• Display Count: 6000
• Dual Display: Yes
• Hold Function: Yes
• Min/Max Function: Yes
• Auto Power Off: Yes
• Digital Display: Yes

Electrical Measurement

• True RMS: Yes
• AC Voltage: 750V AC
• DC Voltage: 1000V DC
• AC Current: 600A AC
• AC Millivolts: 600mV
• DC Millivolts: 600mV
• Frequency: 99.99kHz
• Duty Cycle: 1% to 99%
• Resistance: 60 MΩ
• Capacitance: 6000µF
• Continuity: Yes
• Diode Test: Yes
• Low Z: Yes
• NCV Detection: Yes
• Inrush Current Measurement: Yes

Pressure & Airflow

• Static Pressure Range: ±60 InH₂O
• Dual Pressure Inputs: Yes

Temperature

• Temperature Range: -328°F to 2462°F
• K-Type Temperature Input: Yes
• Pipe Clamp Range: 32°F to 180°F

Refrigeration Measurements

• Refrigerant Pressure Range: 0 to 725 PSIG
• Vacuum Measurement Range: 0 to 20,000 Microns
• Relative Humidity Range: 0% to 100%
• Hygrometer Temperature Range: 32°F to 140°F
• Superheat Range: 32°F to 180°F
• Subcool Range: 32°F to 180°F
• Vapor/Liquid Saturation: 32°F to 180°F

Leak Detection

• Refrigerant Detection: Yes
• Detects HFC, HCFC, CFC Refrigerants and Blends
• Detection Sensitivity: 0.05 oz/year
• Digital Numeric Leak Indicator: Yes

Safety & Certifications

• IP42 Rated
• cETLus Listed
• IEC 61010-1:2012
• CE Compliant
• FCC Compliant
• RoHS Compliant
• SAE J2913 Certified
• ASHRAE 173-2012 Certified
• J2791 Certified
• EN 14624 Certified
• CAT IV 300V / CAT III 600V

Included Components

• EPC True-RMS Clamp Meter
• EM720SPKIT Differential Manometer
• RLD15B Refrigerant Leak Detector
• WOT2 Wireless Outside Temperature Probe
• WHP1 Wireless Hygrometer Probes (2)
• WVG2 Wireless Vacuum Gauge Probe
• WPP1 Wireless Pressure Probes (2)
• WPC2 Wireless Pipe Clamp Probes (2)
• AC550 Heavy Duty Tool Backpack
• AAA Batteries (4)
• AA Batteries (9)
• 9V Battery

Warranty

• Various Manufacturer Warranties Depending on Included Components

Shipping Information

• Ships securely packed inside the included professional-grade tool backpack.
• Designed for field portability and HVAC service applications.

Who This Is For

• Heat Pump Installers
• HVAC Service Technicians
• Refrigeration Contractors
• Mechanical Service Professionals
• Building Maintenance Teams
• HVAC Commissioning Specialists

End-of-Page Summary

The UEi 511KIT Heat Pump Install Kit provides HVAC professionals with a complete commissioning and diagnostic solution for heat pump installations. Combining airflow testing, electrical diagnostics, refrigerant analysis, leak detection, wireless monitoring, and durable tool storage, this kit helps ensure accurate installation, performance verification, and warranty compliance.
