Product Description
Overview
The UEi 520KIT Furnace Install Kit is a comprehensive diagnostic package designed specifically for furnace installation and service applications. The kit equips technicians with critical testing tools needed to verify electrical performance, airflow characteristics, temperature rise, and gas system safety.

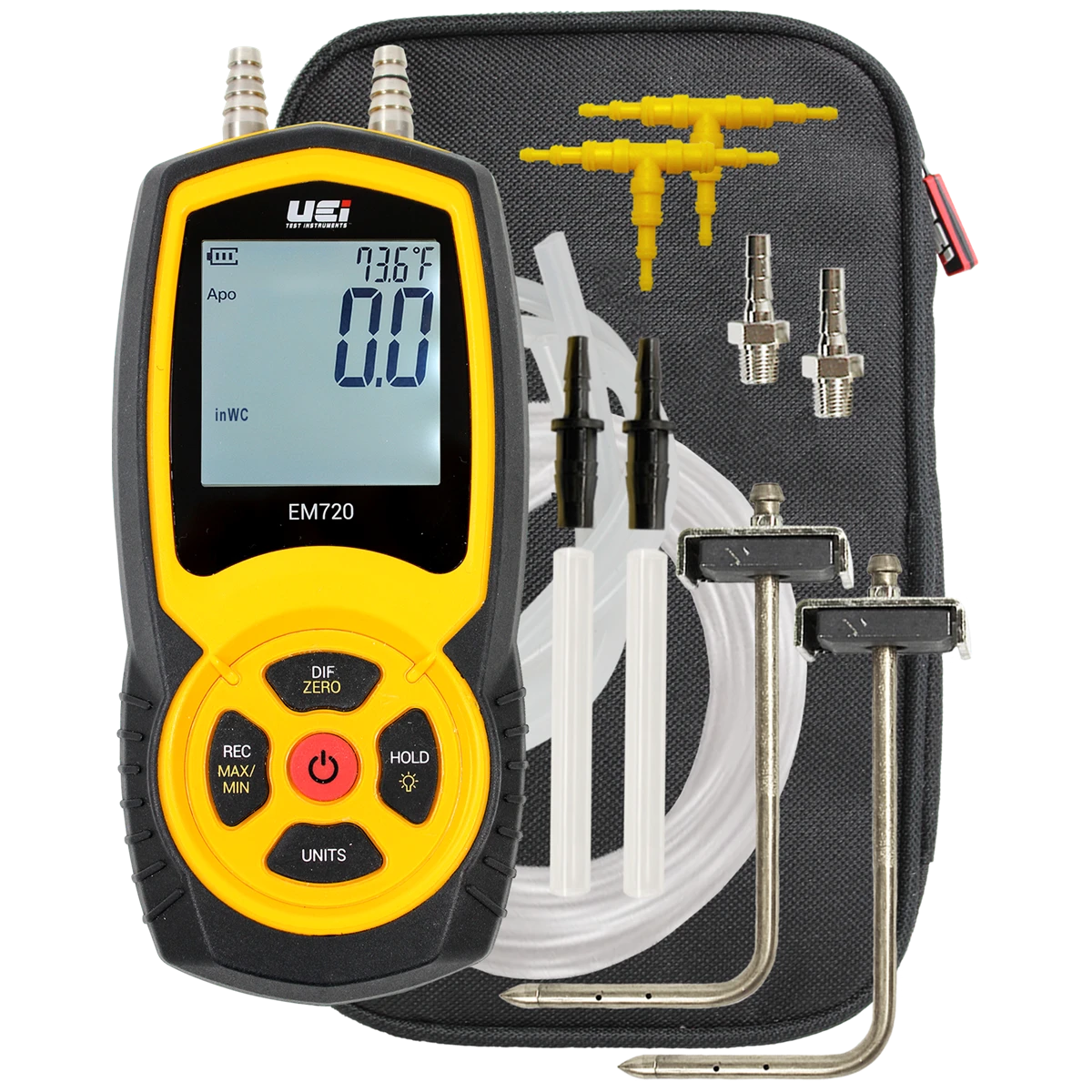

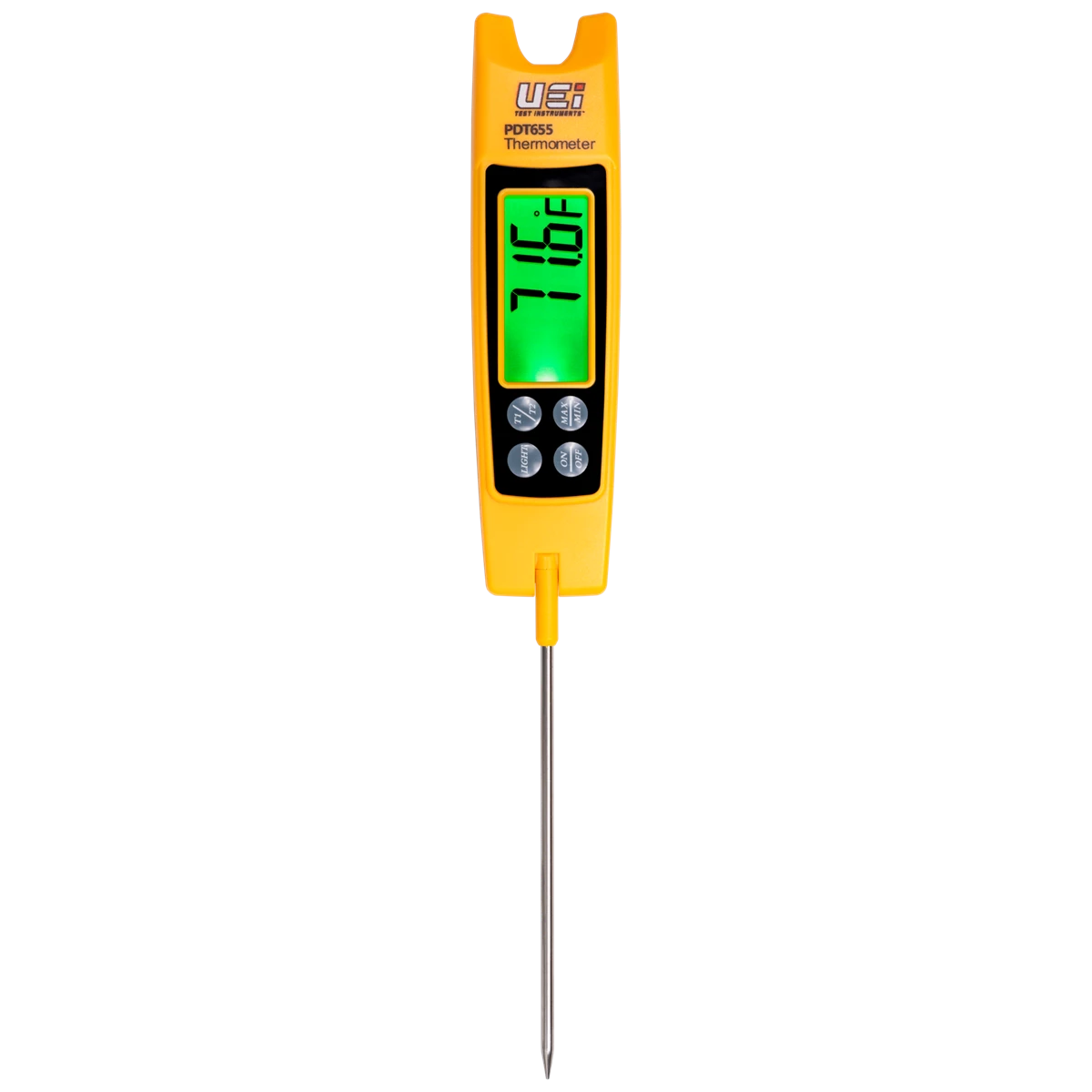

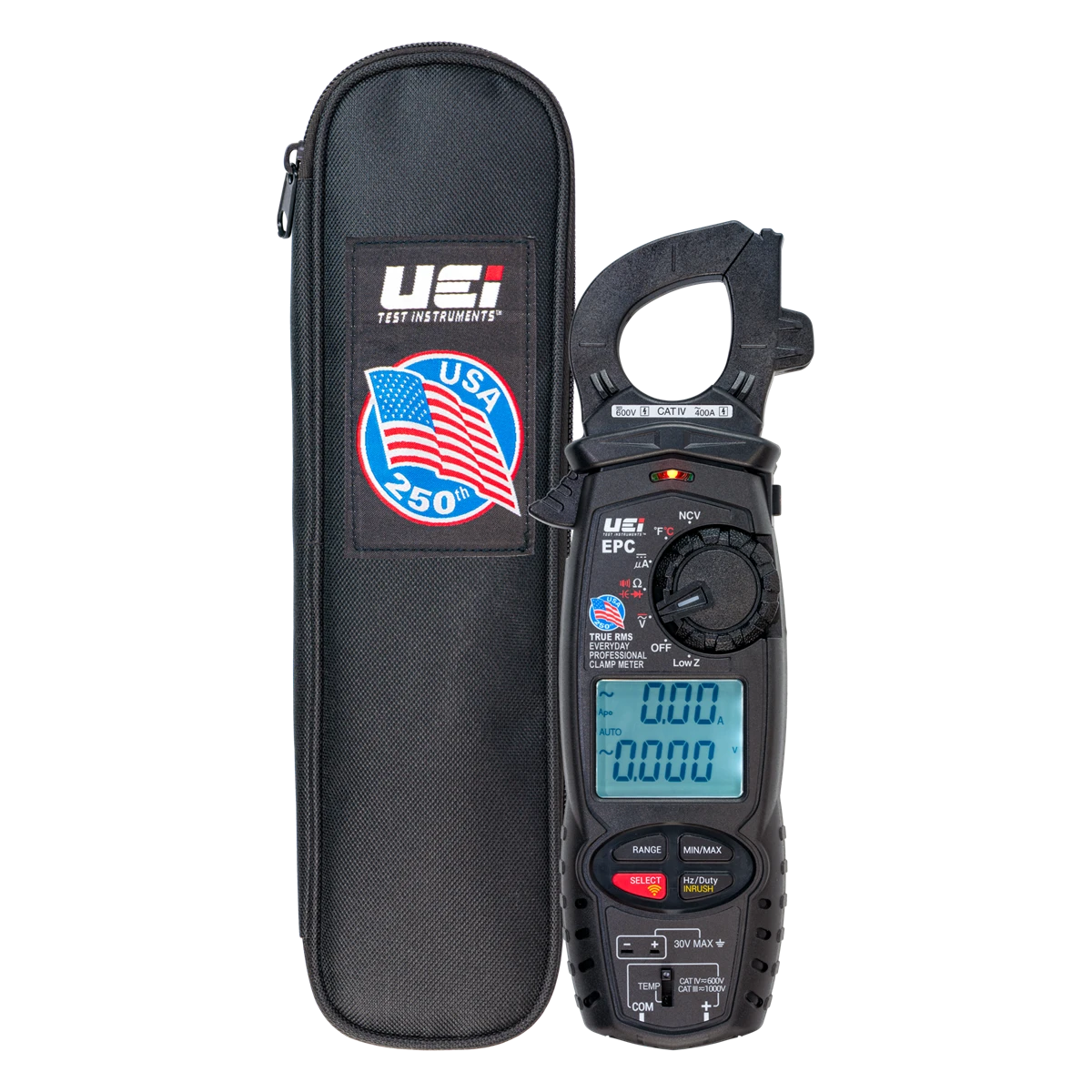

The EPC True-RMS Wireless Clamp Meter enables accurate electrical measurements and grounding verification. The PDT655 Differential Pocket Thermometer monitors supply and return air temperatures while calculating differential temperature. The EM720SPKIT Differential Manometer measures external static pressure and airflow performance. The CD100A Combustible Gas Leak Detector verifies safe operation by detecting potential gas leaks.

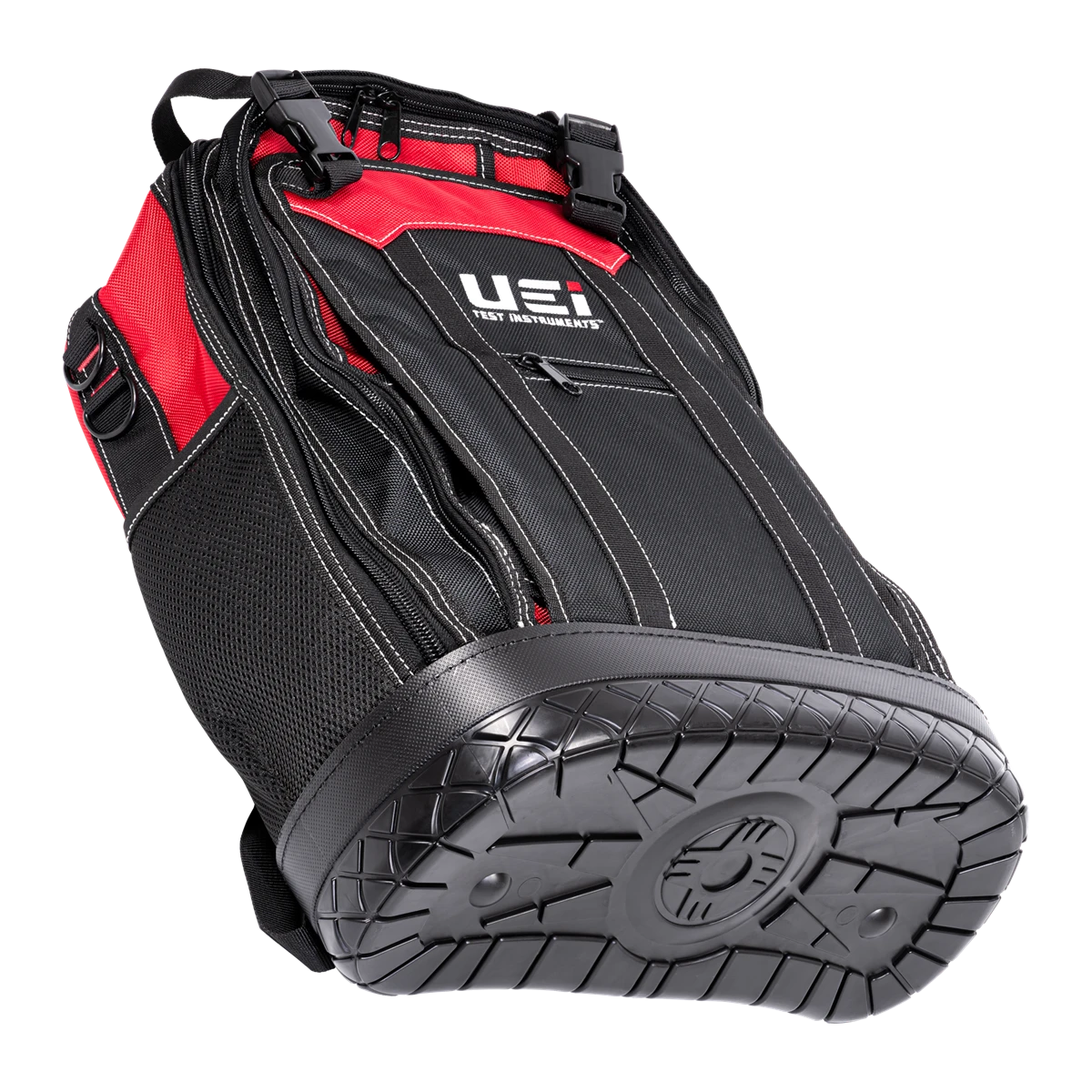

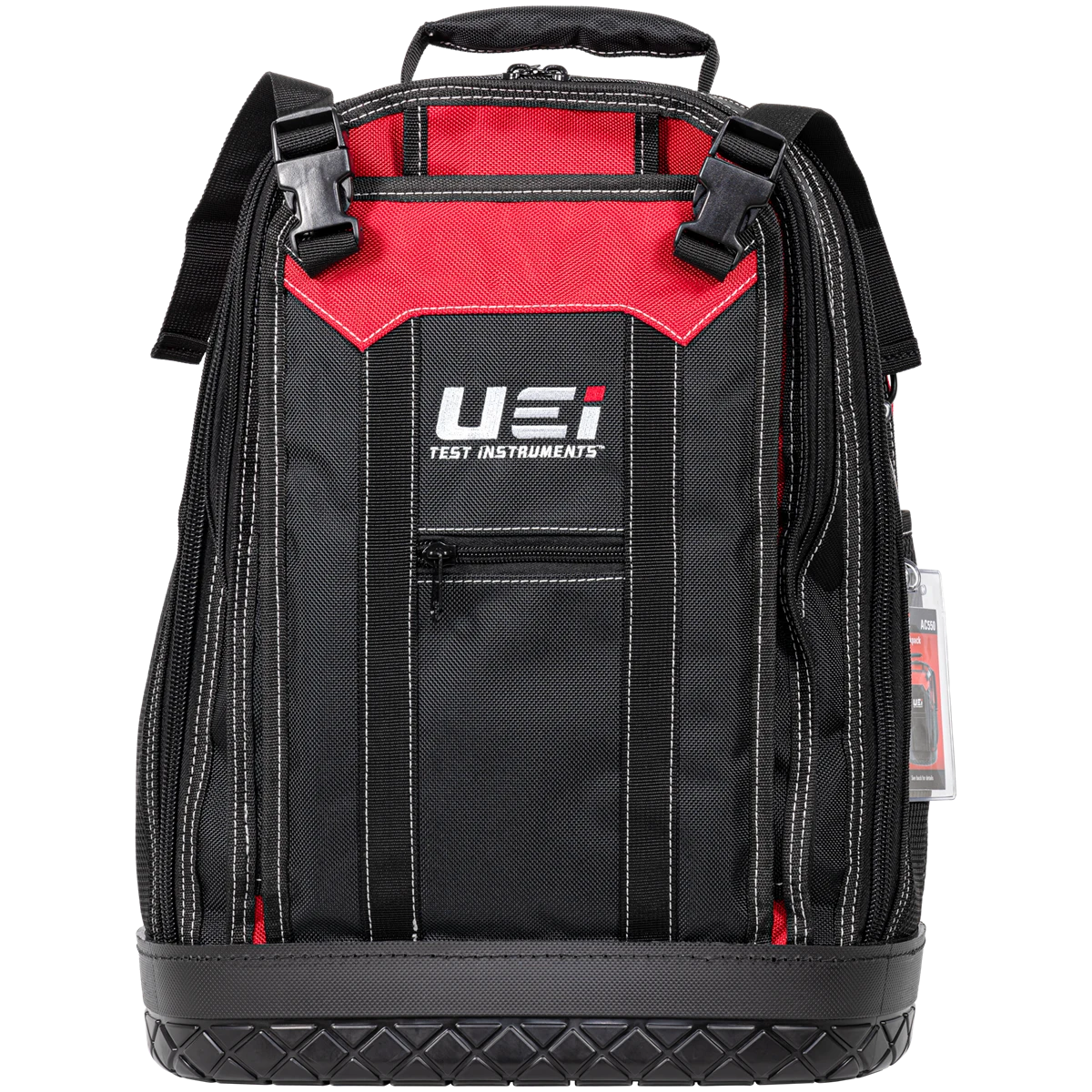

All tools are organized and protected inside the included AC550 Heavy Duty Tool Backpack for convenient transport and field use.
Key Features
- Complete furnace installation and maintenance toolkit
- EPC True-RMS wireless clamp meter included
- EM720SPKIT differential manometer and static pressure kit
- PDT655 differential pocket thermometer
- CD100A combustible gas leak detector
- Supports temperature rise and airflow verification
- Measures static pressure and electrical performance
- Detects combustible gas leaks
- Includes professional heavy-duty tool backpack
- Designed for installation documentation and commissioning
Use Cases
- Furnace installation verification
- Furnace commissioning
- Static pressure testing
- Airflow diagnostics
- Temperature rise measurements
- Electrical troubleshooting
- Gas leak detection
- Warranty documentation and maintenance inspections
Compatibility
Designed for use with:
- Gas Furnaces
- High-Efficiency Furnaces
- Residential Heating Systems
- Commercial Furnace Systems
- HVAC Heating Equipment
- Forced-Air Heating Systems
Benefits
- Helps satisfy manufacturer installation requirements
- Supports warranty documentation procedures
- Combines multiple essential testing instruments in one package
- Verifies airflow and temperature performance
- Improves installation quality and safety
- Detects combustible gas leaks quickly
- Enhances technician productivity and efficiency
FAQ
Q: What is included in the UEi 520KIT?
A: The kit includes the EPC True-RMS Clamp Meter, EM720SPKIT Differential Manometer, PDT655 Differential Pocket Thermometer, CD100A Combustible Gas Leak Detector, batteries, and the AC550 Heavy Duty Tool Backpack.
Q: Can this kit perform furnace airflow testing?
A: Yes. The EM720SPKIT differential manometer is designed for static pressure and airflow testing applications.
Q: Does the kit measure temperature rise?
A: Yes. The PDT655 differential thermometer allows technicians to measure supply and return air temperatures and calculate temperature differentials.
Q: Can the kit detect natural gas leaks?
A: Yes. The CD100A combustible gas detector is designed to identify combustible gas leaks and help verify safe furnace operation.
Q: Is this kit intended for installation and maintenance?
A: Yes. It is designed to support installation verification, commissioning, routine maintenance, and troubleshooting procedures.
Technical Specs
General
- Part Number: 520KIT
- Product Type: Furnace Install Kit
- Display Count: 6000
- Dual Display: Yes
- Display Backlight: Yes
- Hold Function: Yes
- Min/Max Function: Yes
- Auto Power Off: Yes
- Digital Display: Yes
Electrical Measurement
- True RMS: Yes
- AC Voltage: 750VAC
- DC Voltage: 1000VDC
- AC Current: 600A AC
- AC Millivolts: 600mV
- DC Millivolts: 600mV
- Frequency: 99.99kHz
- Duty Cycle: 1% to 99%
- Resistance: 60 MΩ
- Capacitance: 6000µF
- Continuity: Yes
- Diode Test: Yes
- Low Z: Yes
- NCV Detection: Yes
- Inrush Current Measurement: Yes
Pressure & Airflow
- Differential Pressure Range: ±60 InH₂O
- Dual Pressure Input: Yes
- Zero Function: Yes
- Selectable Units: Yes
Temperature
- Temperature Range: -328°F to 2462°F
- K-Type Input: Yes
- Folding Temperature Probe: Yes
- Differential Temperature: Yes
Leak Detection
- Detects: Combustible Gas
- Sensitivity: Less Than 50ppm Methane
Additional Features
- Protective Boot/Overmolding: Yes
- Magnetic Mount: Yes
- High-Resolution Accuracy: Yes
Safety & Certifications
- IP42 Rated
- cETLus Listed
- IEC 61010-1:2012
- CE Compliant
- FCC Compliant
- RoHS Compliant
- CAT IV 300V / CAT III 600V
Included Components
- EPC True-RMS Clamp Meter
- EM720SPKIT Differential Manometer
- CD100A Combustible Gas Leak Detector
- PDT655 Differential Pocket Thermometer
- AC550 Heavy Duty Tool Backpack
- AA Batteries (2)
- CR2032 Battery
- 9V Battery
Warranty
- Various Manufacturer Warranties Depending on Included Components
Shipping Information
- Ships securely packed inside the included heavy-duty professional tool backpack.
- Designed for HVAC installation, commissioning, and service professionals.
Who This Is For
- HVAC Installation Technicians
- Furnace Service Contractors
- Heating System Specialists
- HVAC Maintenance Professionals
- Mechanical Service Teams
- Building Maintenance Personnel
End-of-Page Summary
The UEi 520KIT Furnace Install Kit combines electrical testing, airflow diagnostics, differential temperature measurement, and combustible gas leak detection into one professional package. Ideal for furnace installation, commissioning, and maintenance, this kit helps technicians verify performance, improve safety, and satisfy manufacturer warranty documentation requirements.
