Overview

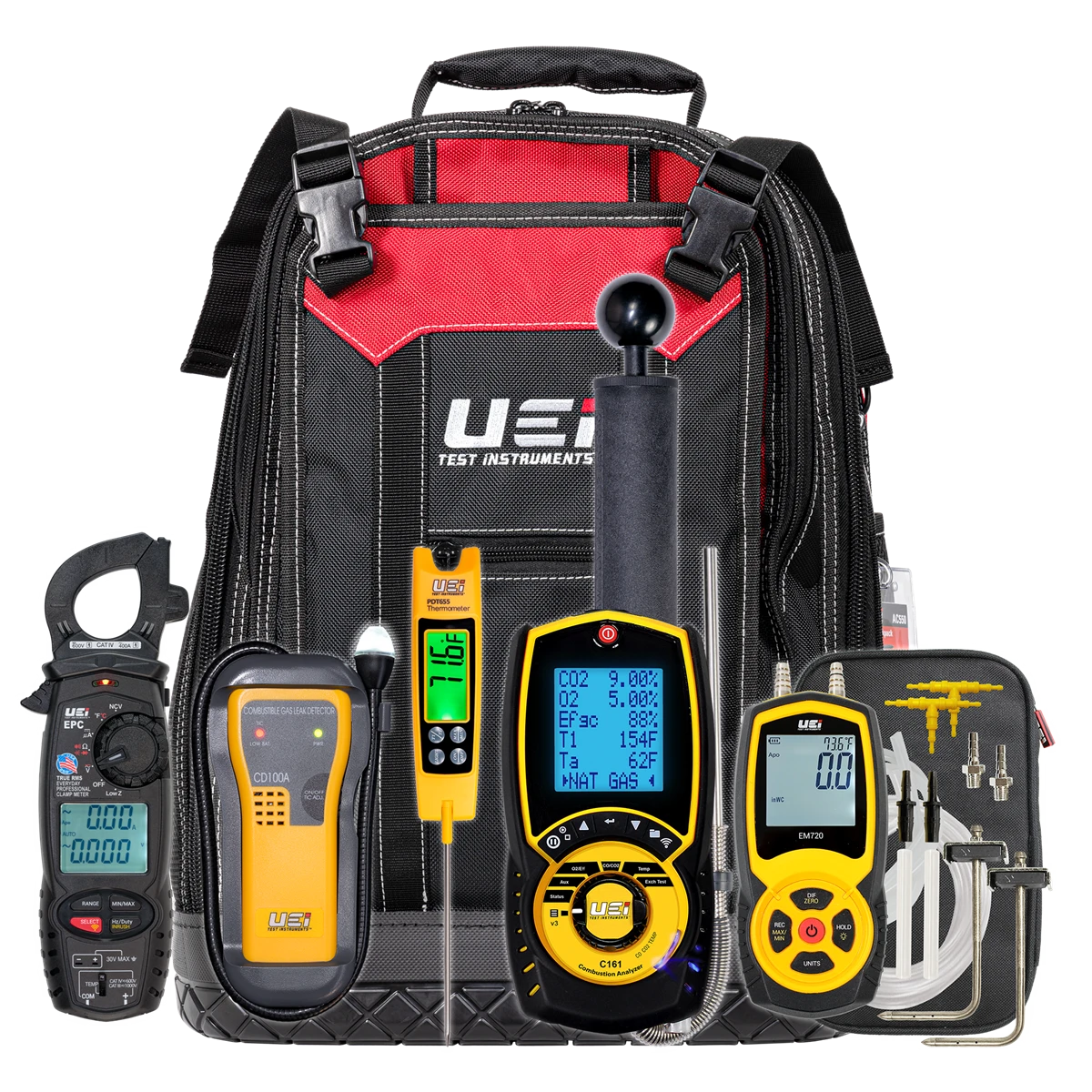

The UEi 522KIT Oil Burner & Boiler Install Kit combines the critical diagnostic tools recommended by major manufacturers for oil burner and boiler installation, maintenance, and combustion analysis. This comprehensive package enables technicians to verify equipment performance, document startup readings, improve efficiency, and satisfy warranty requirements.

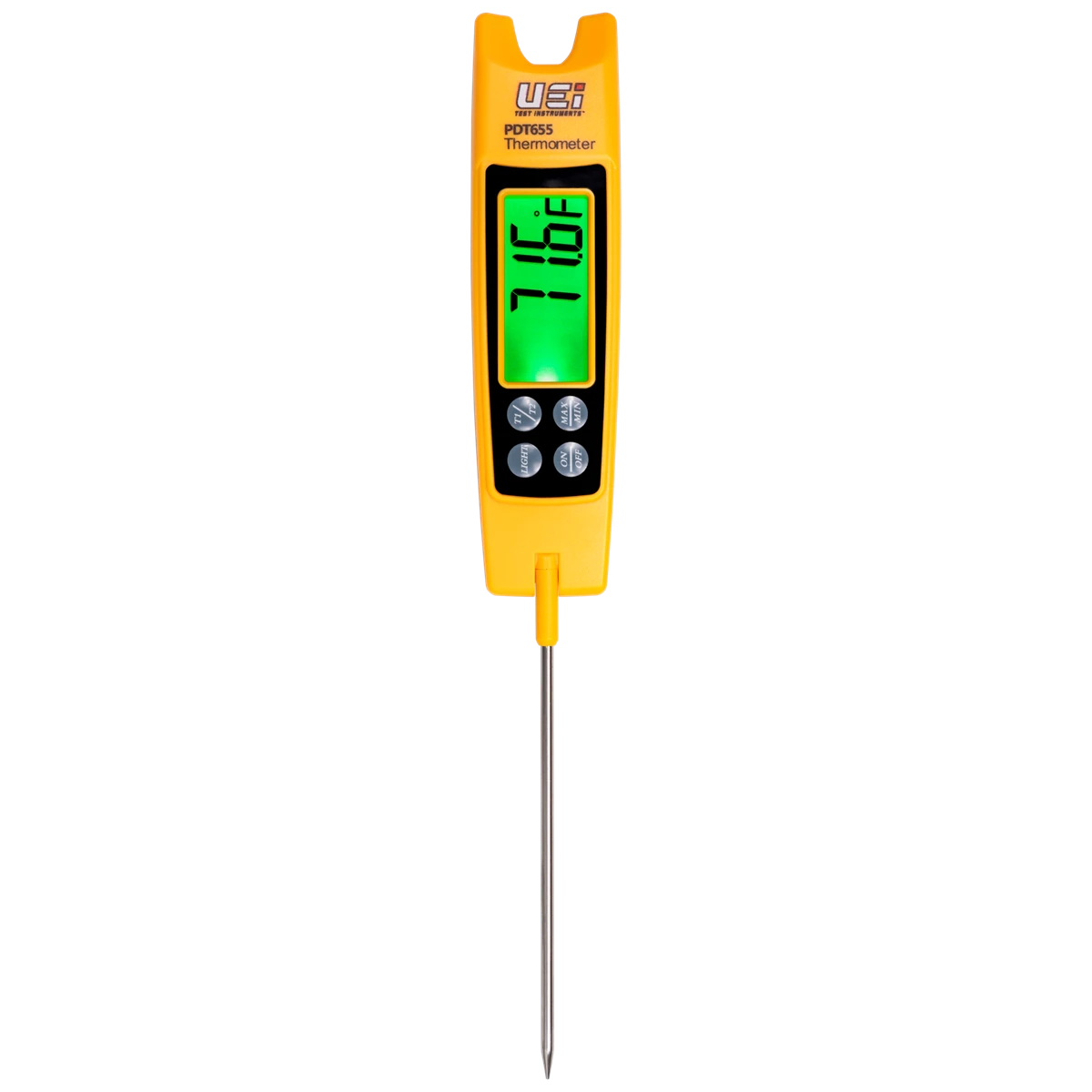

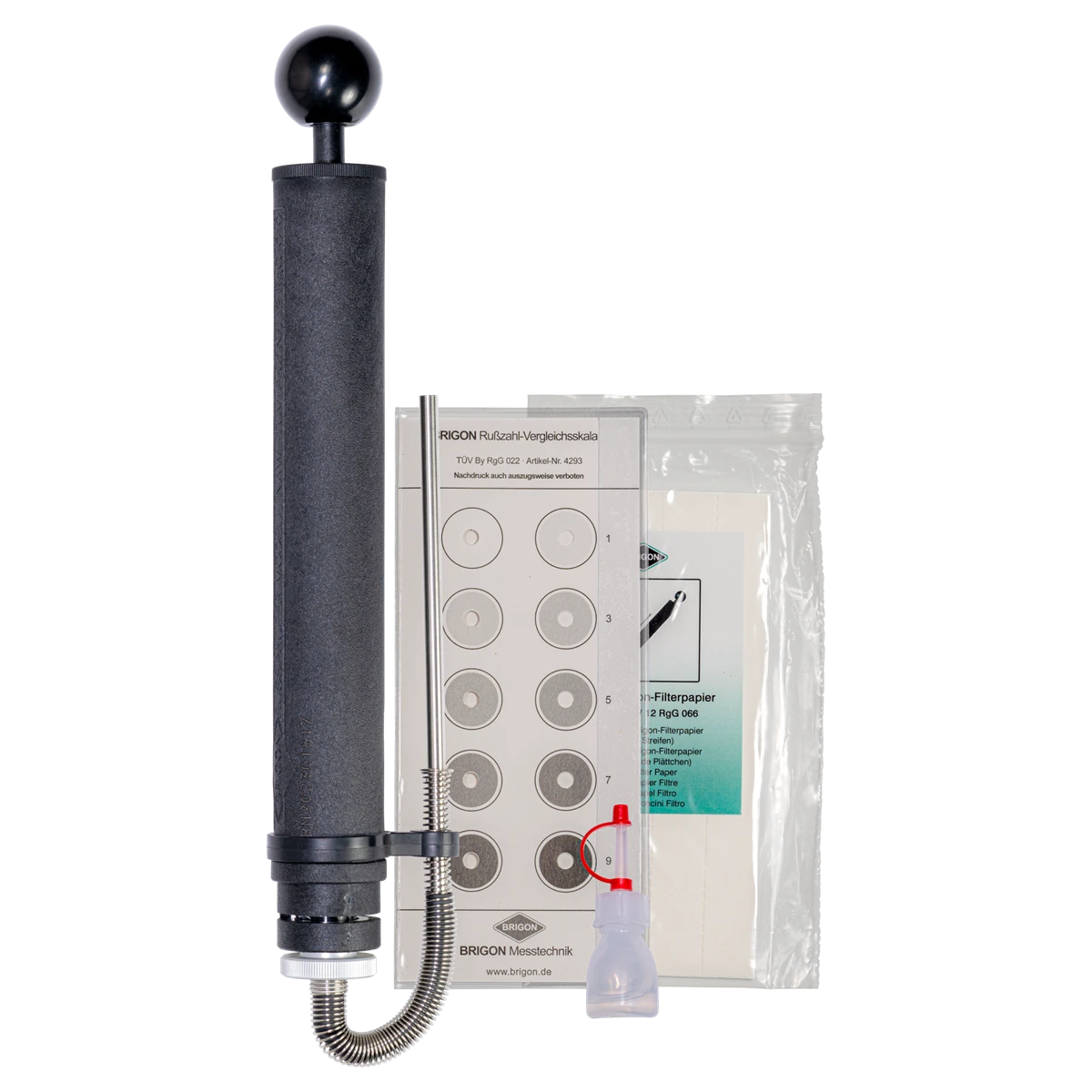

At the core of the kit is the C161OIL Combustion Analyzer with Smoke Pump Test Kit, which allows users to evaluate combustion efficiency, perform heat exchanger integrity testing, measure flue gas concentrations, and monitor smoke levels. The EPC True-RMS Wireless Clamp Meter provides electrical troubleshooting and verification, while the EM720SPKIT Differential Manometer measures airflow and gas pressure. The PDT655 Differential Thermometer monitors system temperatures, and the CD100A Gas Leak Detector helps ensure safe operation.

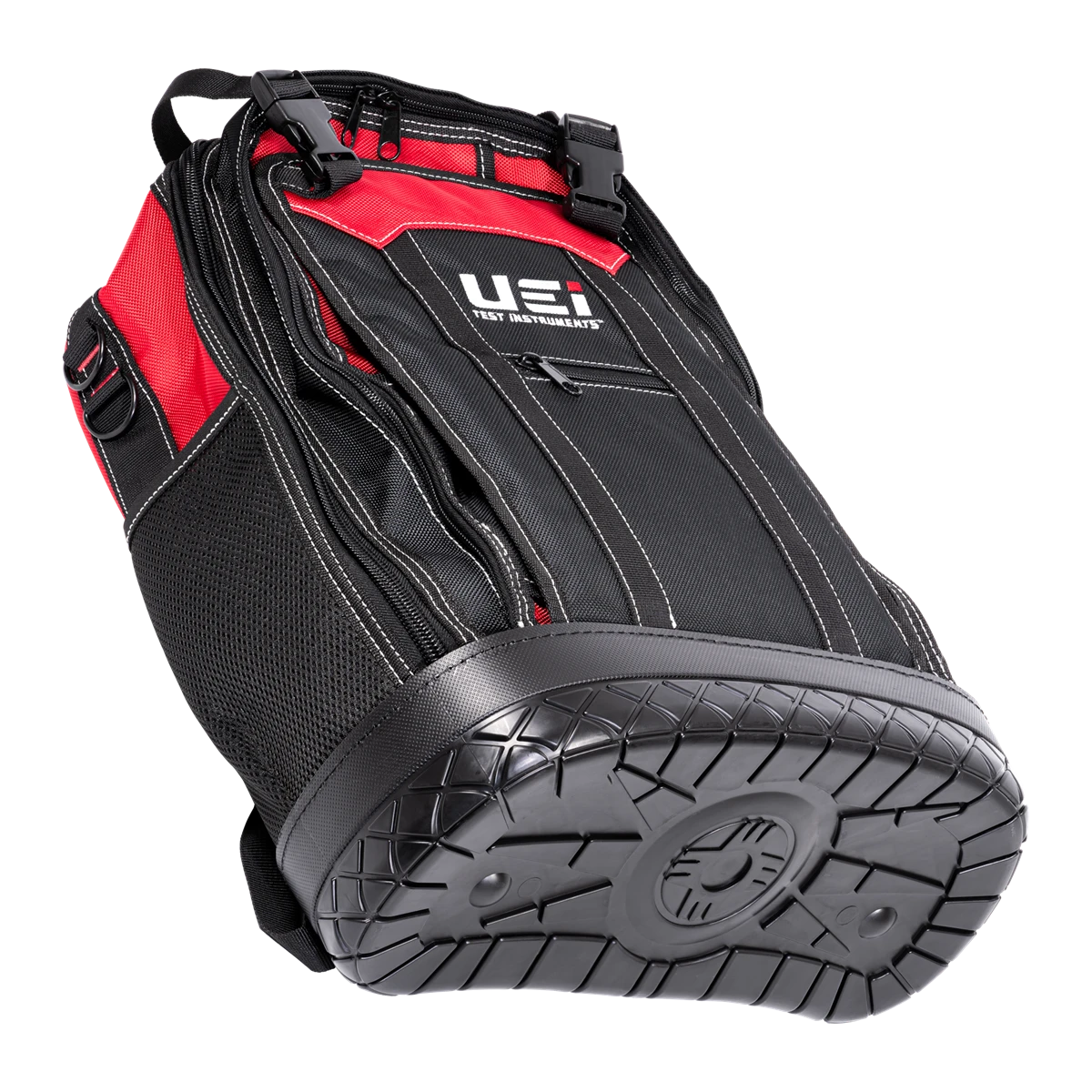

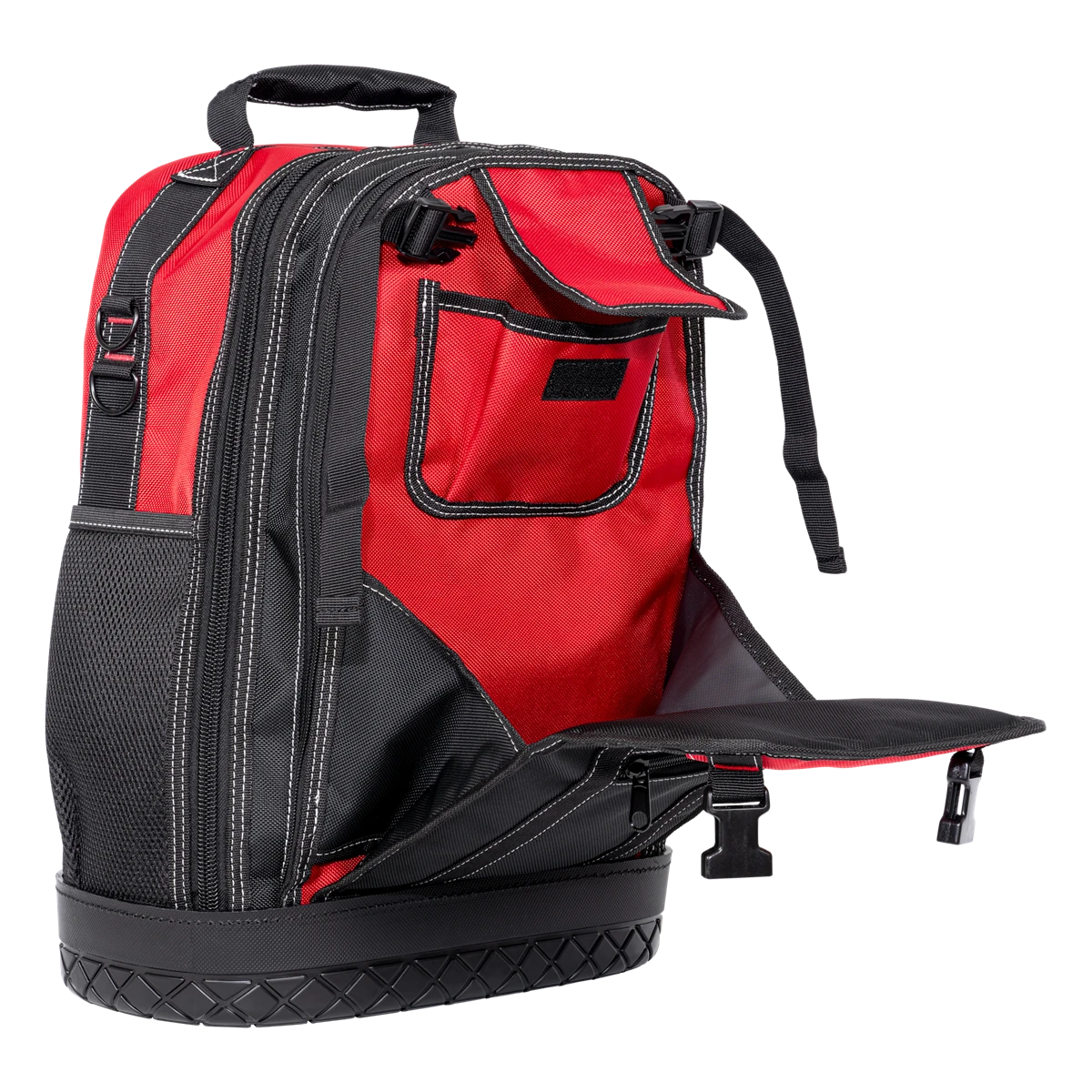

All components are housed in the durable AC550 Heavy Duty Tool Backpack for convenient field transport and organization.

Key Features

• Complete oil burner and boiler installation toolkit
• Includes C161OIL combustion analyzer with smoke pump test kit
• EPC True-RMS wireless clamp meter included
• EM720SPKIT differential manometer and static pressure kit
• PDT655 differential thermometer included
• CD100A combustible gas leak detector
• Heat exchanger integrity testing capability
• Combustion efficiency analysis
• Smoke level testing
• Wireless data transfer and IR printer compatibility
• Up to 45 memory positions for data storage
• Includes professional heavy-duty tool backpack

Use Cases

• Oil burner commissioning
• Boiler installation verification
• Combustion efficiency testing
• Heat exchanger inspections
• Flue gas analysis
• Smoke testing
• Gas pressure verification
• HVAC maintenance and troubleshooting
• Equipment startup documentation

Compatibility

Designed for use with:

• Oil-Fired Boilers
• Oil Burners
• Residential Heating Systems
• Commercial Boiler Systems
• Combustion Heating Equipment
• Hydronic Heating Systems

Benefits

• Supports manufacturer-recommended installation procedures
• Assists with warranty documentation requirements
• Provides advanced combustion analysis capabilities
• Helps improve fuel efficiency and system performance
• Enables accurate flue gas diagnostics
• Detects gas leaks for safer operation
• Consolidates critical testing tools into a single kit

FAQ

Q: What is included in the 522KIT?

A: The kit includes the C161OIL Combustion Analyzer, EPC Clamp Meter, EM720SPKIT Differential Manometer, PDT655 Differential Thermometer, CD100A Gas Leak Detector, batteries, and the AC550 Heavy Duty Tool Backpack.

Q: Can this kit perform combustion analysis?

A: Yes. The included C161OIL analyzer measures O₂, CO, CO₂, flue temperature, combustion efficiency, and other important combustion parameters.

Q: Does the kit support smoke testing?

A: Yes. The C161OIL includes a smoke pump test kit for evaluating flue gas smoke levels.

Q: Can the analyzer perform heat exchanger testing?

A: Yes. The analyzer supports Heat Exchanger Testing (HET) functions.

Q: Is the kit suitable for boiler commissioning?

A: Yes. The included instruments support combustion analysis, airflow diagnostics, pressure testing, temperature measurement, and gas leak detection.

Technical Specs

General

• Part Number: 522KIT
• Product Type: Oil Burner & Boiler Install Kit
• Wireless Output: Yes
• IR Printer Link: Yes
• Display Count: 6000
• Dual Display: Yes
• Display Backlight: Yes
• Auto Power Off: Yes
• Memory Positions: 45
• Data Logging: Yes
• Start-Up Time: 30 Seconds
• High Altitude Compensation: Yes

Combustion Analysis

• Combustion Analyzer: C161OIL
• Heat Exchanger Test (HET): Yes
• Preprogrammed Fuels: 8
• Oxygen (O₂): Up to 21%
• Carbon Monoxide (CO): Up to 2000 ppm
• Carbon Dioxide (CO₂): Up to 20%
• Flue Temperature: 32°F to 1112°F
• Inlet Temperature: 32°F to 1112°F
• NOx Filtered CO Sensor: Yes
• Automatic Fresh Air Purge: Yes
• Low Flow Detection: Yes
• Sensor Protection Types: 2
• Display Parameters: 6

Electrical Measurement

• True RMS: Yes
• AC Voltage: 750V AC
• DC Voltage: 1000V DC
• AC Current: 600A AC
• AC Millivolts: 600mV
• DC Millivolts: 600mV
• Frequency: 99.99kHz
• Duty Cycle: 1.0% to 99.0%
• Resistance: 60 MΩ
• Capacitance: 6000µF
• Continuity: Yes
• Diode Test: Yes
• NCV Detection: Yes
• Low Z: Yes
• Inrush Current Measurement: Yes

Pressure & Temperature

• Differential Pressure: ±60 InH₂O
• Dual Pressure Input: Yes
• Temperature Differential: Yes
• K-Type Temperature Input: Yes
• K-Type Range: -40°F to 950°F (-40°C to 510°C)
• General Temperature Range: -328°F to 2462°F

Gas Detection

• Gas Detection Type: Combustible Gas
• Sensitivity: Less Than 50 ppm Methane

Safety & Certifications

• IP42 Rated
• cETLus Listed
• IEC 61010-1:2012
• CE Compliant
• RoHS Compliant
• FCC/IC Compliant
• REACH Compliant
• AHRI 1260 Standard
• EN 50379 Parts 1-3 Certified
• EN50270:2015 EMC Compliant
• EN61010-1:2010 Safety Certified
• CAT IV 300V / CAT III 600V

Included Components

• C161OIL Combustion Analyzer
• EPC True-RMS Wireless Clamp Meter
• EM720SPKIT Differential Manometer
• CD100A Combustible Gas Leak Detector
• PDT655 Differential Pocket Thermometer
• AC550 Heavy Duty Tool Backpack
• AAA Batteries (2)
• 9V Battery
• CR2032 Battery
• Rechargeable AA Batteries (3)

Warranty

• Various Manufacturer Warranties
• Up to 10-Year Warranty with Annual Recertification Eligible
• Eligible for UEi Service+

Shipping Information

• Ships securely packed in the included AC550 Heavy Duty Tool Backpack.
• Designed for professional HVAC, combustion, and boiler service applications.

Who This Is For

• Boiler Technicians
• Oil Burner Service Contractors
• HVAC Installation Professionals
• Combustion Analysis Specialists
• Facility Maintenance Teams
• Commercial Heating Contractors

End-of-Page Summary

The UEi 522KIT Oil Burner & Boiler Install Kit combines advanced combustion analysis, electrical diagnostics, gas leak detection, airflow testing, and temperature monitoring into a single professional package. Designed for installation, commissioning, maintenance, and efficiency optimization, this kit delivers the tools required to verify performance, improve safety, and document system operation.
